Accessories
Accessories

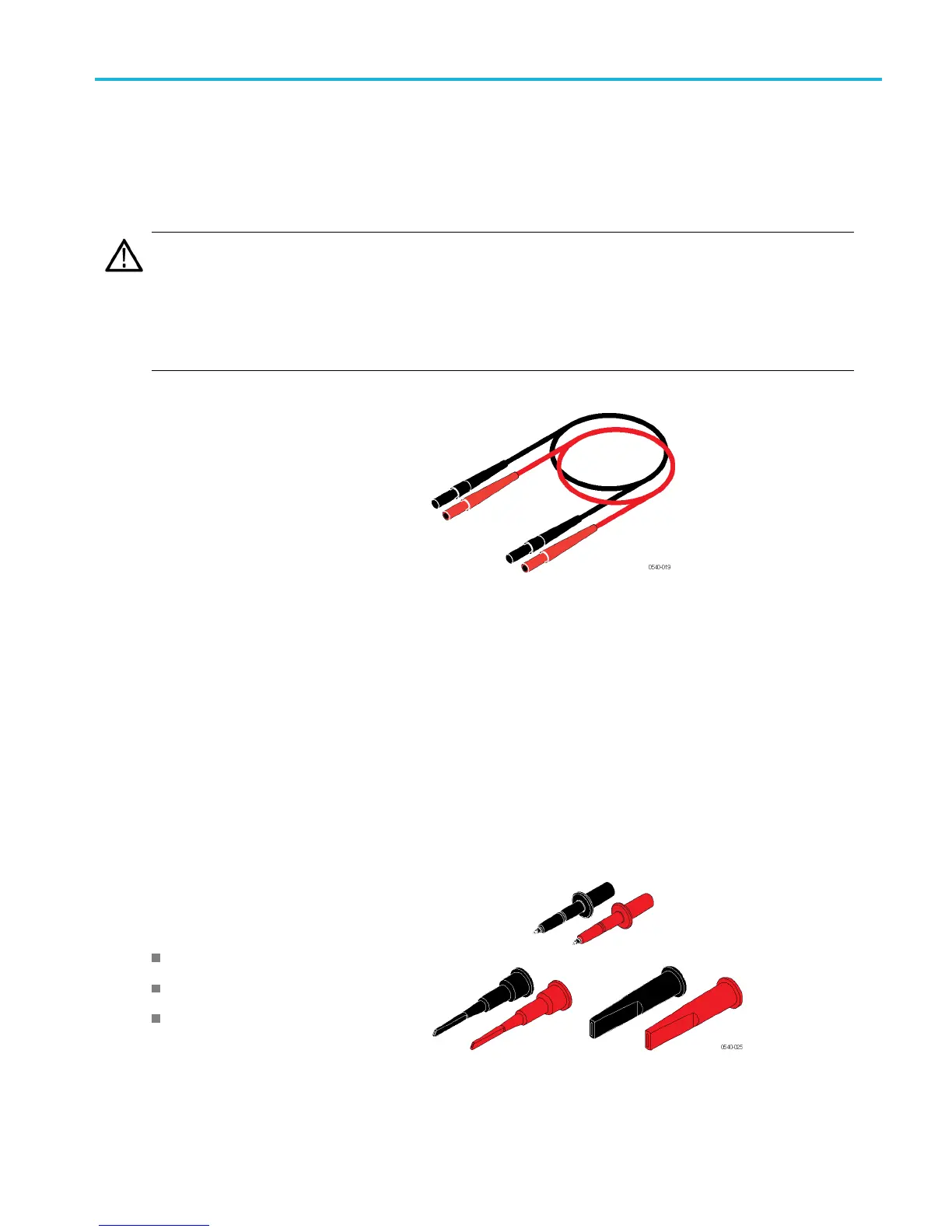

THDP0100 Probe Standard Accessories
WARNING. To a
void risk of electric shock or fire, do not use the THDP0100 test probe or hook tip accessories on CAT III or
CAT IV circuits. Refer to the ratings tables in the Accessories section of the manual. (See Table 1 on page 9.)
To avoid risk of electric s hock o r fire, when using the T HDP0100 test probe or hook tip accessories w ith the THDP0200 and
TMDP0200 probes, do not use on circuits above 1000 V.
Use only accessories that are rated for the application. Substitution of other accessories may create a shock or burn hazard.
Keep the pro
be body and accessories clean to reduce the risk of shock due to surface conduction.
Extender Leads
These lead
s extend the reach of the probes
by ~67 in (1.5 m), which allow you to reach
connections as far as 3 .5 m apart. Be sure
to use bot
h extension leads so that the input
leads are the same length.
However, with longer lead length, differential
noise ind
uced into the input leads is greater.
Also, because of the added inductance of the
leads, voltage measurements at frequencies
above ap
proximately 10 MHz may not be
as precise. For best performance, use the
20 MHz or lower-bandwidth filter on your
oscill
oscope.
The male banana-plug ends connect to the
test probes that are included with the probes.
One pai
r of extender leads are included with
the probes.
Maximum ratings:
1000 V
CAT III
600 V CAT IV
Reorder Tektronix part number:
196-
3523-xx
THDP0100 Probe Accessory Kit
Kit i
ncludes one pair of each of the
accessories shown on the following pages:
Test Probes (TATP)
Small Hook Tips TASH)
Large Hook Tips (TALH)
Reorder Tektronix part number: 020-3070-xx
THDP0100/0200 & TMDP 0200 High Voltage Differential P robes Instruction Manual 6
