Performance Ver
ification
Test Procedures
WARNING. These procedures require the application of high voltage to the inputs o f the probes. Only qualified personnel
should perfor
m any testing with voltage levels exceeding 30 V
rms
. All pertinent safety rules and guidelines for elevated
voltage measurements should be followed and adhered to.

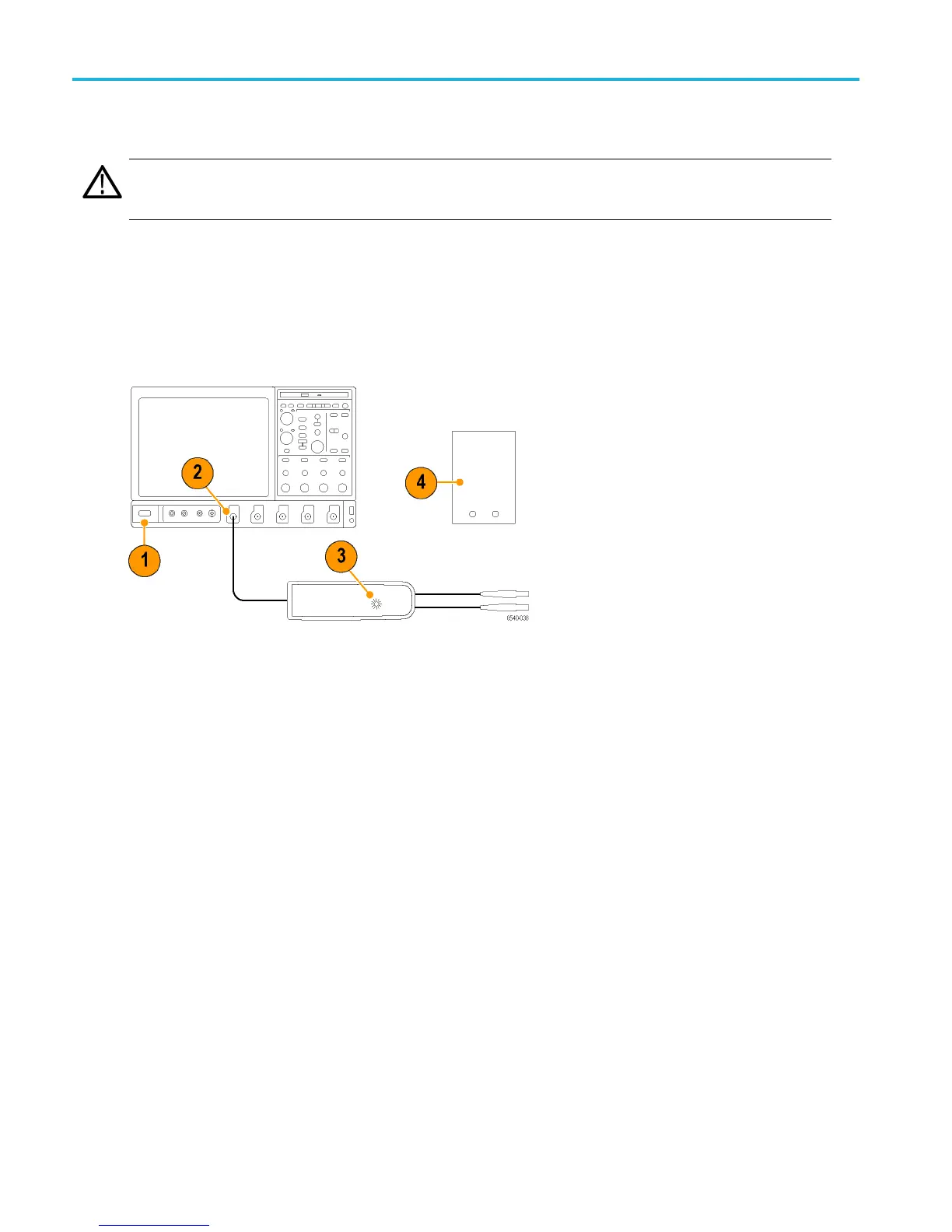

Test Setup
1. Turn on the oscilloscope.
2. Connect the probe to any channel of the oscilloscope.
3. Verify that the LEDs light on the probe.
4. Turn on the remaining test equipment and let the probe and equipment warm up for 20 m inutes.
5. Make a copy of the test record to tabulate the test results. (See Table 13 on page 38.)
35 THDP0100/0200 & TMDP0200 High Voltage Differential Probes Instruction Manual
