Accessories
THDP & TMDP Series Probes Optional Accessories

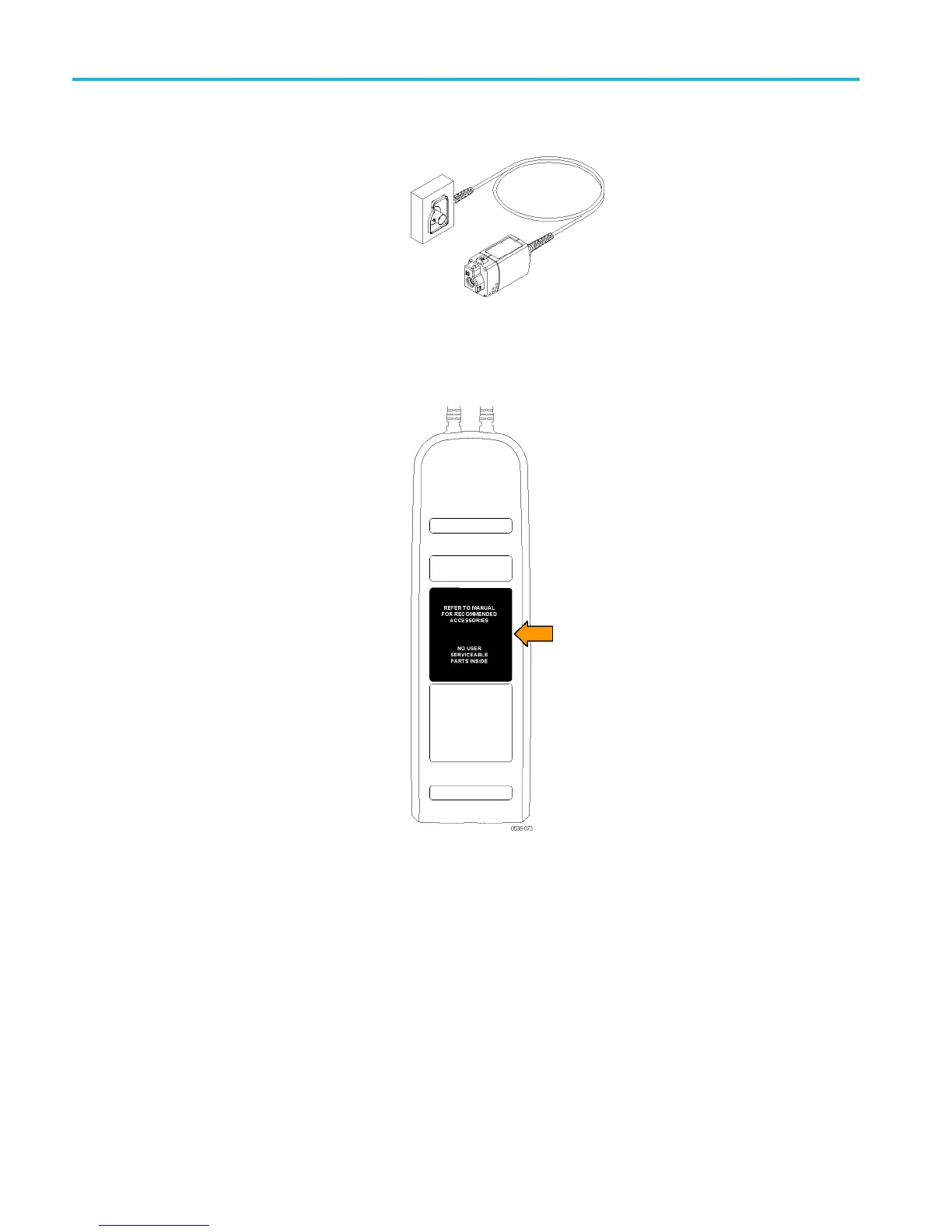

TekVPI Calibr
ation Fixture
This ca libration fi xture is required to complete
a performance verification and adjustment
procedures o
n the probe. It provides power
to the probe and routes the probe output
signal through an SMA connector on the
back of the fix
ture.
The signal can then be measured with
another instrument, (for example, a precision
DMM), to che
ck and adjust probe qualities
such as gain accuracy.
Order Tektronix part number: 067-1701-xx
Replacement Label (Safety Item; Service
Only)
This reusable label covers the openings to
the service-only adjustments on the back
of the pro
be. To maintain the safety of the
probe, the label must be replaced after
service adjustments are made to the probe.
If the or
iginal label becomes damaged or
lost, order a replacement label.
Order Tektronix part number:
335-29
13-xx
17 THDP0100/0200 & TMDP0200 High Voltage Differential Probes Instruction Manual
