Accessories

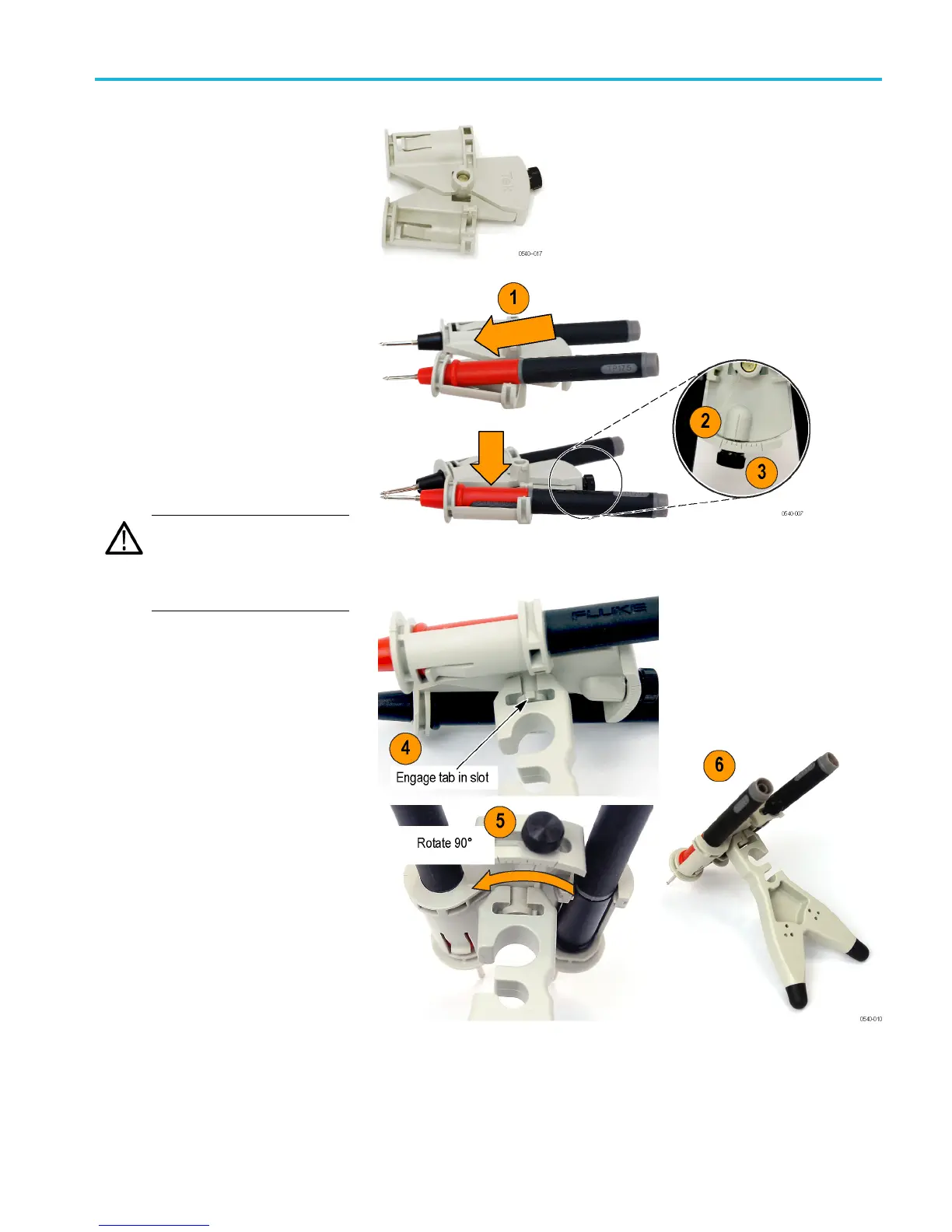

THV-Browser
The THV-Brows er allow s y ou to
set and lock the spacing between
two handheld p
robe tips, and then
browse your circuit with one hand.
Handheld Browsing.
1. Place each handheld probe
lead into the cavity and then
slide the probe forward to
secure it.
2. Loosen the thumb screw and
adjust the spacing between
the probe tips. Graticules
near the thumb screw indicate
the spacing. The maximum
spacingis~1in(2.54mm).
3. Tighten the thumb screw.
You can now browse your circuit.
WARNING. To avoid injury or
short circuits, do not drop the
THV-Browser on high voltage
circuitry. The browser contains
metal components.
Hands-free Probing.
If you want a stationary, hands-free
connection, attach the browser to
the TPH1000 probe holder:
4. Align the slots on the top of the
probe holder with the pins on
the bottom of the browser.
5. Rotate the b row ser 90°.
6. Position the probe tips on your
test points so that you can set
the holder on a stable surface.
One THV-Browser is included with
the probes.
Reorder Tektronix part number:
THV-Browser
THDP0100/0200 & TMDP 0200 High Voltage Differential P robes Instruction Manual 16
