Functional Chec
k
Functional Ch
eck
Using accessories that are shipped with your probe and a source that supplies AC line voltage, perform the following
procedure:
WARNING. To reduce risk of shock or fire, ensure that the accessories are fully mated before you connect to voltage
sources above 42 Vpk.
1. Connect the output of the probe to the oscilloscope input channel.
2. Connect the probe inputs to the AC voltage source.
3. Connect the inputs, set the voltage range, and perform th e check as each row of the following table indicates.

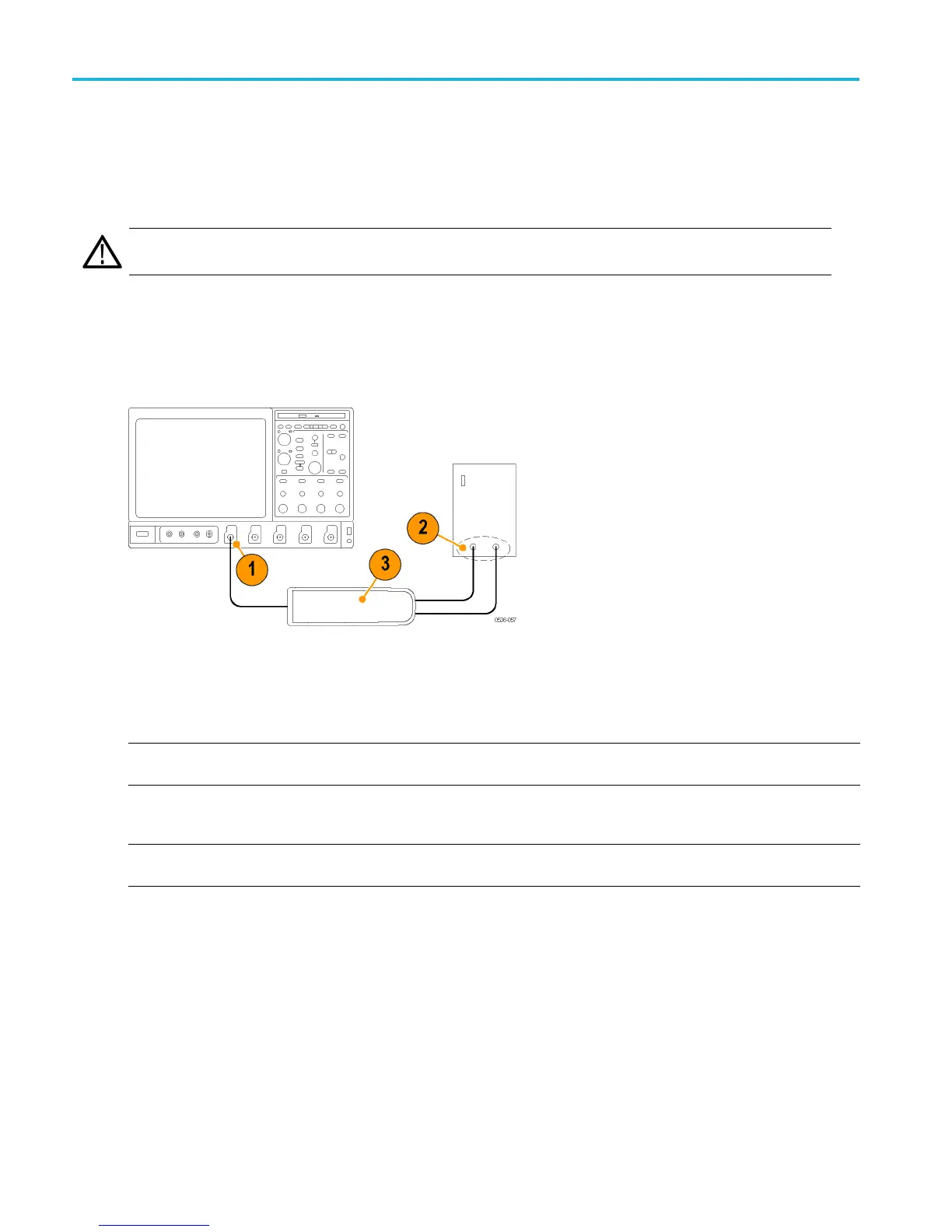

Figure 1: Functional check setup
Input 1
(+ or –)
Input 2
(– or +)
Mode Range setting
Check
Hot
Ground or
Neutral
Differential High (6000 V,
1500 V, or 750 V)
Measurement instrument displays or indicates the
line voltage
Hot
Ground or
Neutral
Differential Low (600 V, 150 V,
or 75 V)
Measurement instrument displays or indicates the
line voltage. Overrange indicator lights if the input is
~20% over
Hot
Hot (same
connection)
Common
Mode
High or low No signal
1
1
If a DC offs
et voltage is present, zero the DC offset using the AutoZero function. (See page 20, AutoZero.)
19 THDP0100/0200 & TMDP0200 High Voltage Differential Probes Instruction Manual
