Probe Operating
Information
Connecting to the Circuit

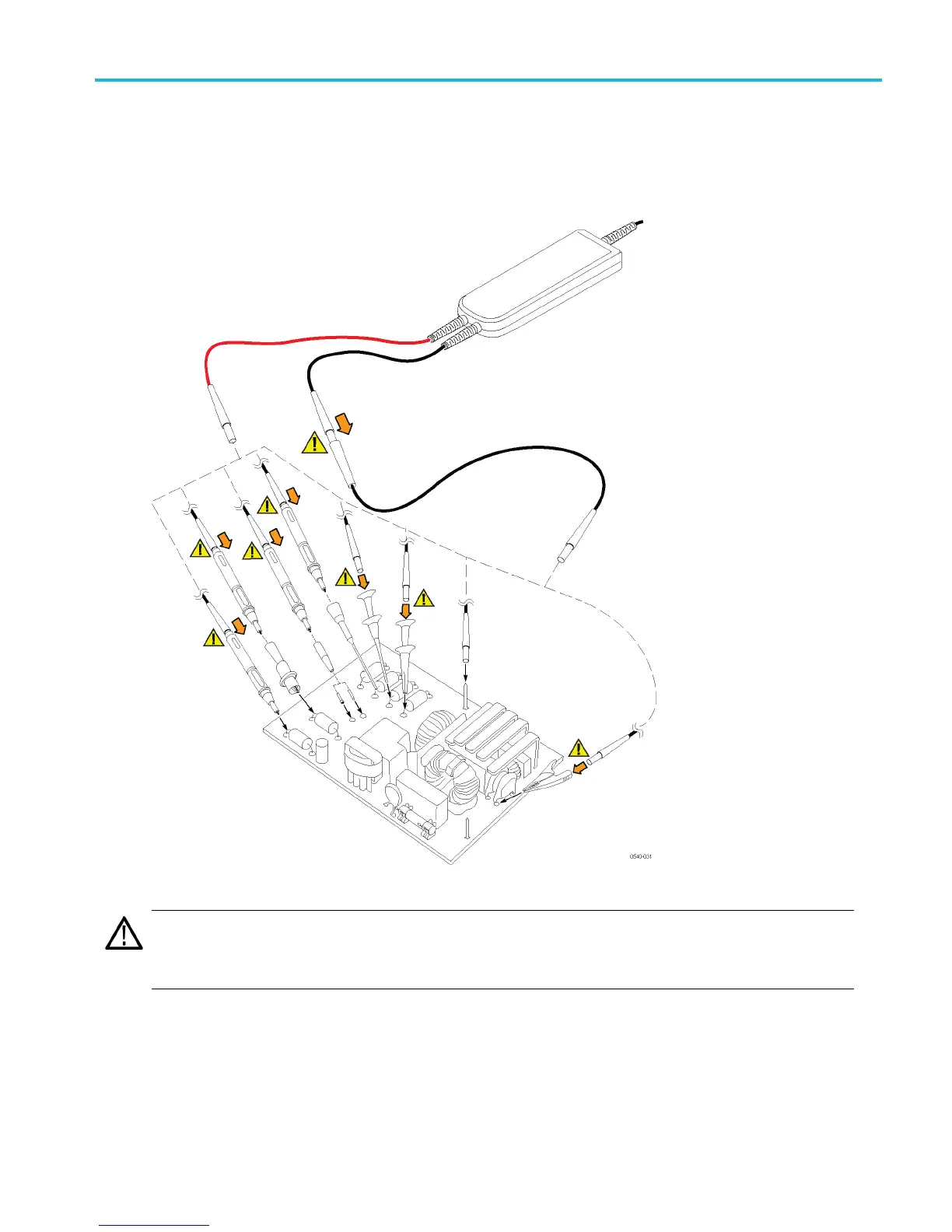

Make the connections to your circuit using the integral input leads or the accessories that best fit your application. The
integral input leads extend 10 in (25 cm) from the probe body. Connect the leads directly to your circuit, or use the extender
leads and the accessories that are i ncluded with the probe. (See page 6, Accessories .)
WAR
NING. To avoid electrical shock or fire, always m ake the connections from the test leads to the probe accessory that
you intend to use before you make any connections to a voltage source. A lways ensure that the connections between the
test leads and the probe accessories are secure before y ou connect them to a v oltage source. Do not connect or disconnect
acc
essories or extended test leads to a voltage source unless they are first connected to the probe.
THDP0100/0200 & TMDP 0200 High Voltage Differential P robes Instruction Manual 2
