Accessories
Test Probes (TATP)
Use the test probes to browse multiple test
points or to co
nnect the test leads to the
hook tips.

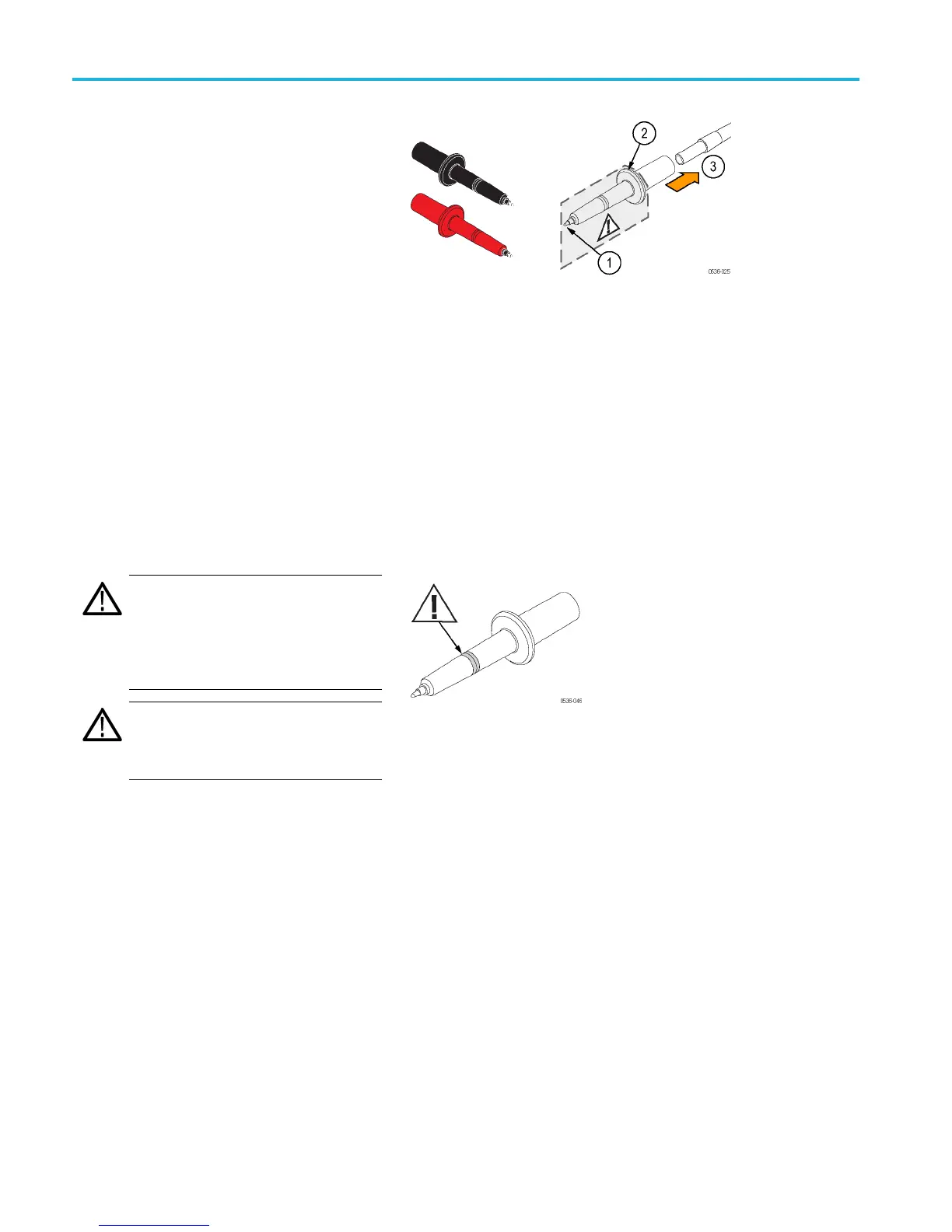

1. The test probe tip is a 6-32 threaded post
that accepts the large and small hook
tips provide
d with the probe.
2. The finger gua
rd provides protection
when the hook tips are not being used.
Keep your fingers behind the finger
guard whene
ver possible to reduce the
risk of a shock from the circuit under test.
3. Connect the back end of the test probe
to the input test leads of the probe.
Maximum ra
tings:
2300 V CAT I*
1000 V CAT II
* See Spec
ifications for the Over-Voltage
Transient (OVT) rating for the probe that you
are using. (See Table 6 on page 27.)
WARNING
. To prevent arc fl ash, use
caution when probing circuits with raised
components. Avoid getting the metal shell
betwee
n components of different potentials.
Use the small hook tip (TASH) for probing in
hard to reach areas.
WARNING. To prevent arc flash, do not use
the test probe or hook tips on CAT III circuits.
To p r o
be CAT III circuits, use the AC280-FL,
AC283-FL, or AC285-FL accessories.
7 THDP0100/0200 & TMDP0200 High Voltage Differential Probes Instruction Manual
