Accessories

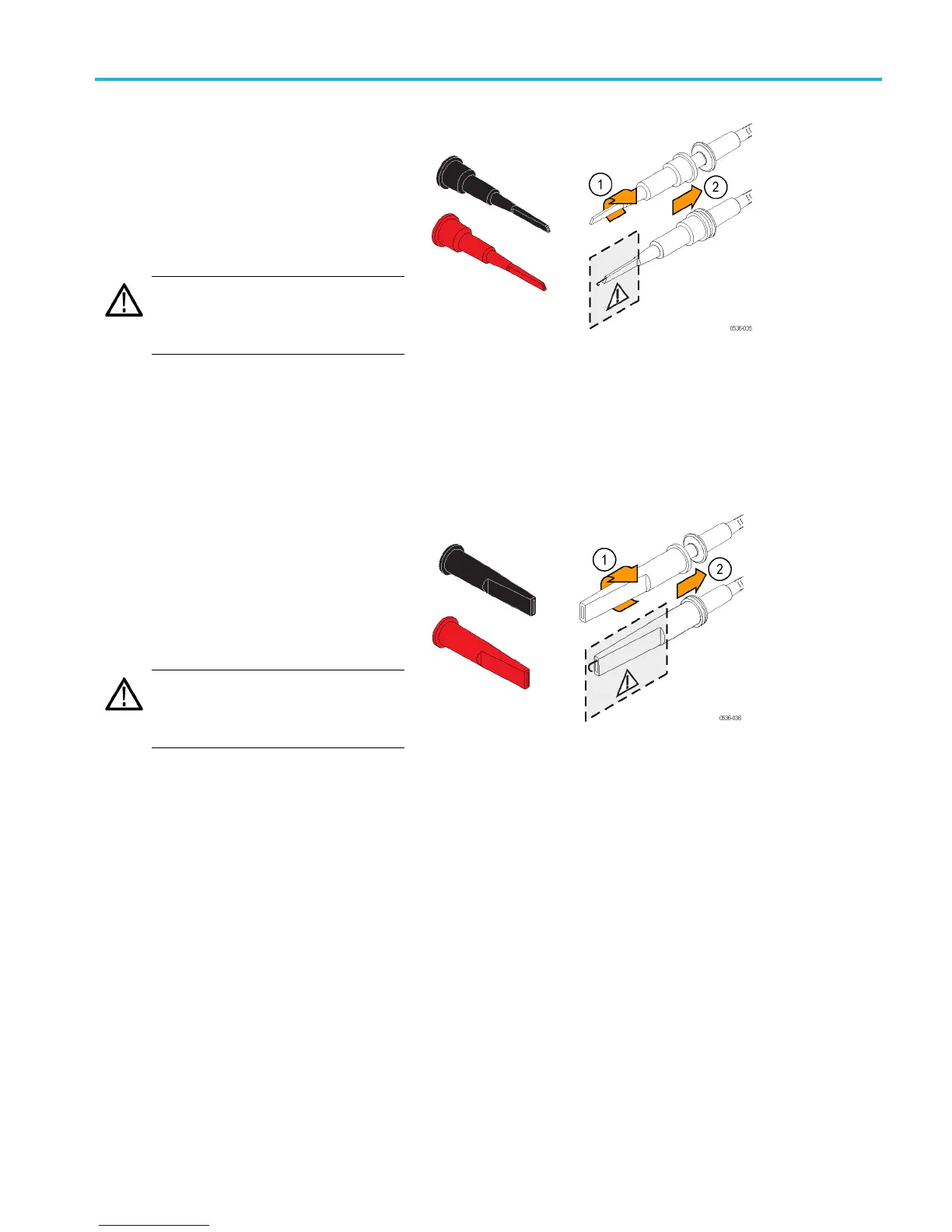

Small Hook Tip (TASH)
Use the small hook tip for making
connections t
o small conductors such as
component leads.
Screw the small hook tip onto the TATP test
probe. To use
the hook tip, hold the probe
body and pull the tip shield back. Hook the
tip onto the circuit and release the shield.
WARNING. To
reduce the risk of shock
when measuring voltages above 1000 V,
always keep your fingers behind the tactile
indicator.
Maximum ratings:
2300 V CAT I
*
1000 V CAT II
*SeeSpecifications for the Over-Voltage
Transien
t (OVT) rating for the probe that you
are using. (See Table 6 on page 27.)
Large Hook Tip (TALH)
Use the large hook tip when working with
larger c
omponents such as bolt terminals
and bus bars typically found in power
distribution equipment.
Screw t
he large hook tip onto the TATP test
probe and then clamp the hook tip onto the
circuit.
WARNI
NG. To reduce the risk of shock
when measuring voltages above 1000 V,
always keep your fingers behind the tactile
indic
ator.
Maximum ratings:
2300
VCATI*
1000 V CAT II
*SeeSpecifications for the Over-Voltage
Tra
nsient (OVT) rating for the probe that you
are using. (See Table 6 on page 27.)
