Adjustments

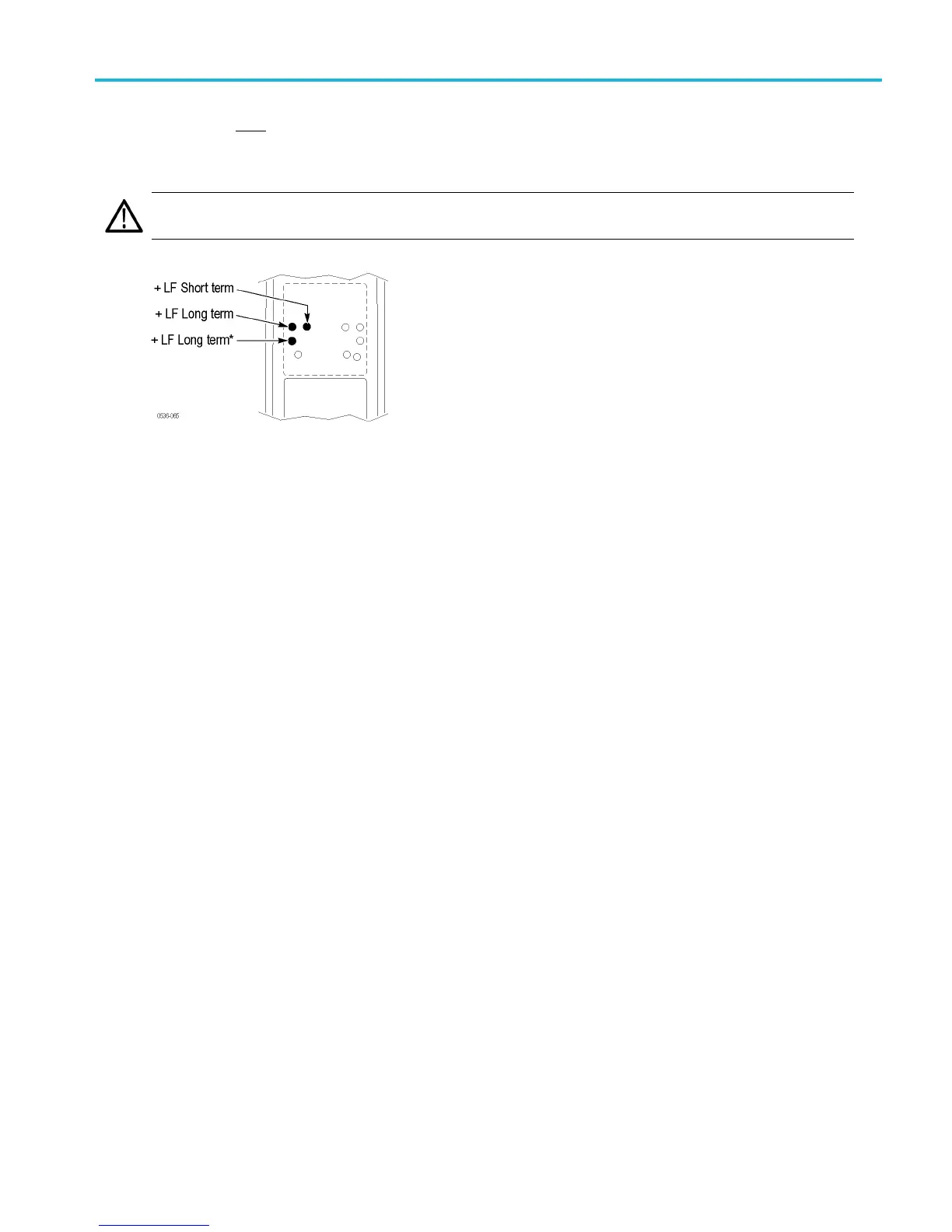

7. Make only slight adjustments to only the +LF pots to optimize the CMRR (minimize the signal amplitude). Adjust the
pots in the foll
owing order: short-term +LF, long-term +LF, long-term +LF*. (The long-term +LF* adjustment is not
used in the TMDP0200 probe.)
WARNING. Use only an insulated tool to make the adjustment. Failure to do so presents a potential shock hazard.
This completes the adjustment procedures.
THDP0100/0200 & TMDP 0200 High Voltage Differential P robes Instruction Manual 52
