Operating Basics

The front panel is divided into easy-to-use functional areas. This c hapter provides

you with a quick overview of the controls and the information displayed on the

screen.

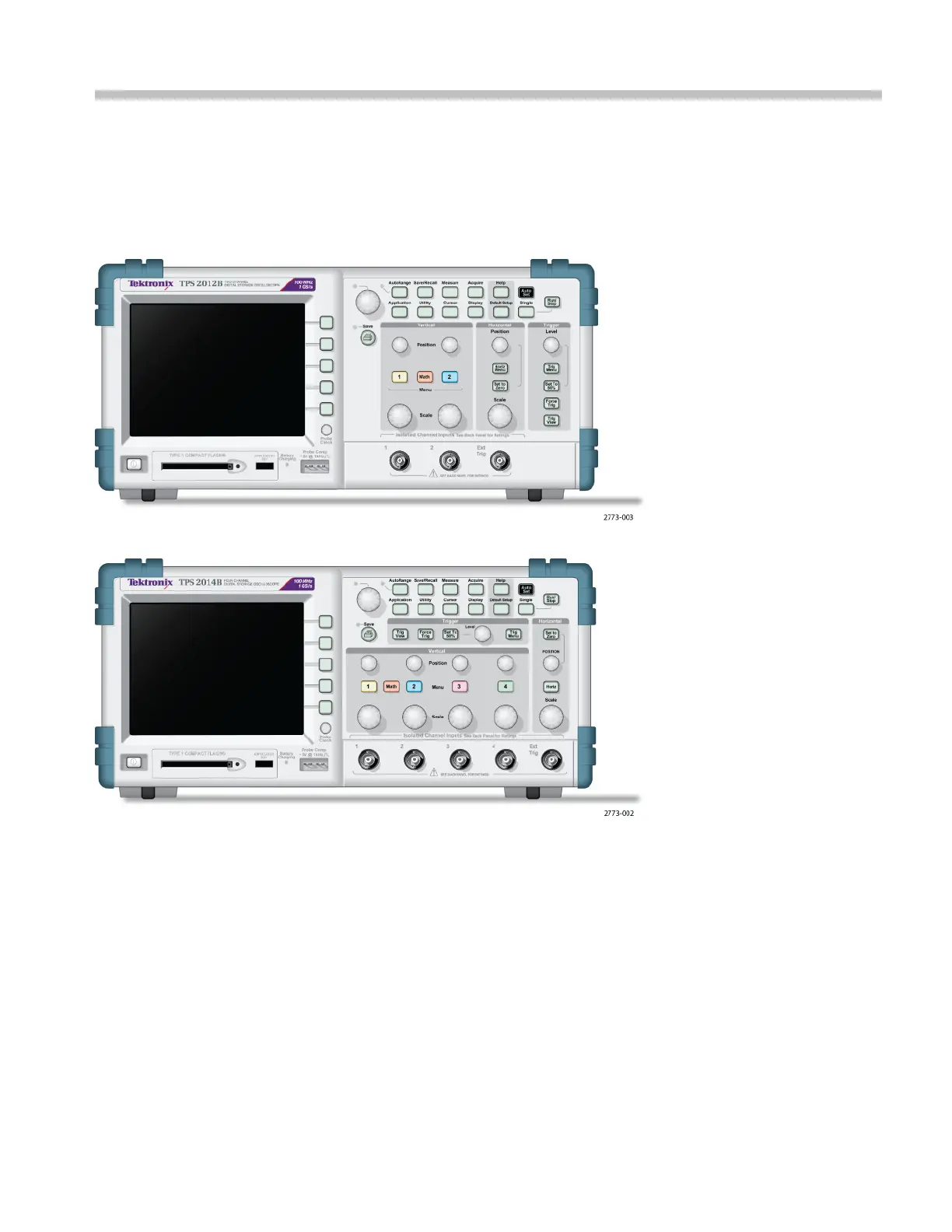

2-channel model

4-channel model

TPS2000B Series Digital Oscilloscope User Manual 15
