Application Examples
Using the Window
Function to See Waveform
Details

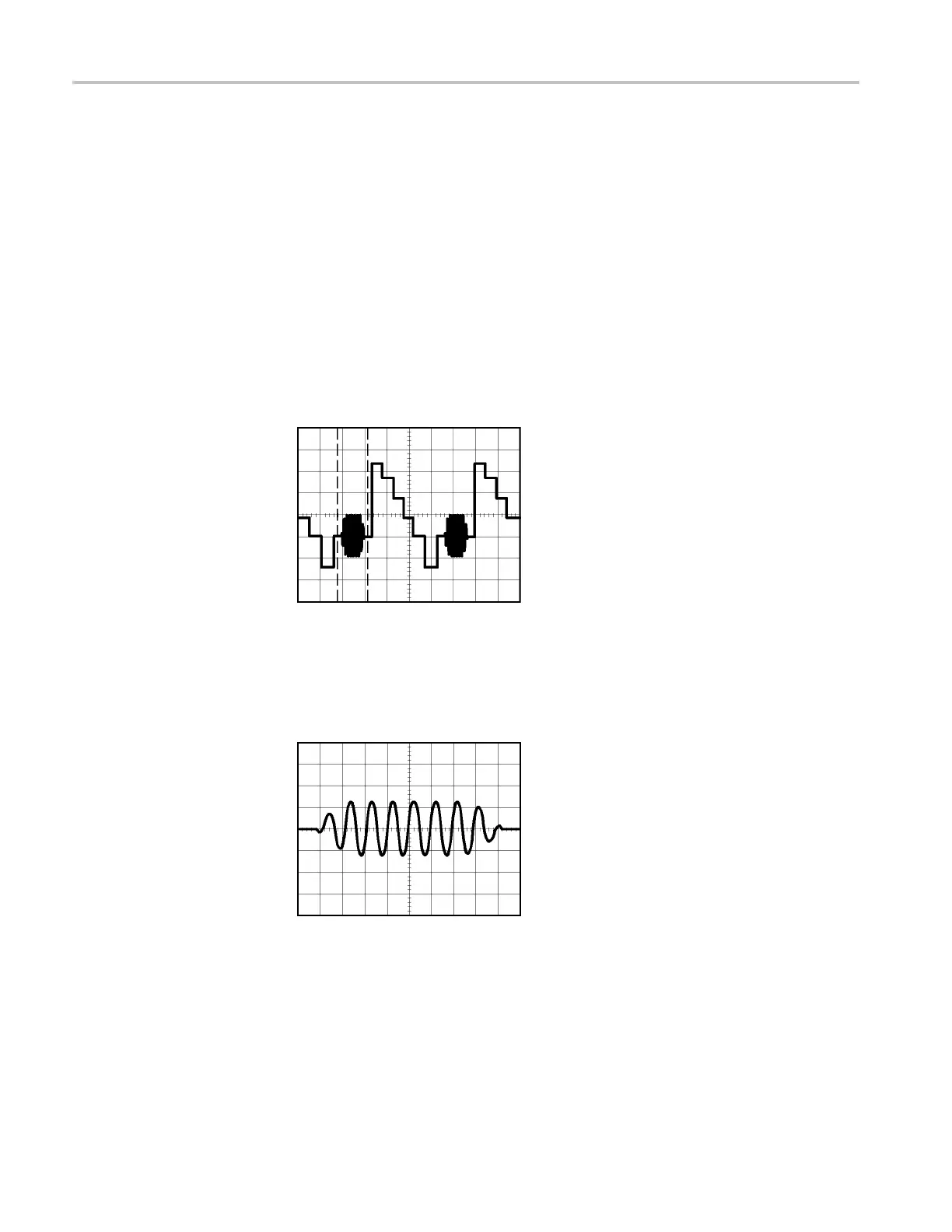

You can use the w
indow (zoom) function to examine a specific portion of a
waveform without changing the main display.
Ifyouwanttov
iew the color burst in the previous waveform in more detail
without changing the main display, follow these steps:
1. Push the Hor
izontal Menu button to see the Horizontal Menu and select the
Main option.
2. Push the Win
dow Zone option button.
3. Turn the Horizontal Scale knob and select 500 ns. This will be the
seconds/d
ivision setting of the e xpanded view.
4. Turn the Horizontal Position knob to position the window around the portion
of the wav
eform that you want to expand.
1. Push the Window option button to see the expanded p ortion of the waveform.
2. Turn the Horizontal Scale knob to optimize viewing the expanded waveform.
To switch between the Main and Window views, push the Main or Window
option button in the Horizontal Menu.
58 TPS2000B Series Digital Oscilloscope User Manual
