AFA4000/E VAV Airflow Controller / p.51

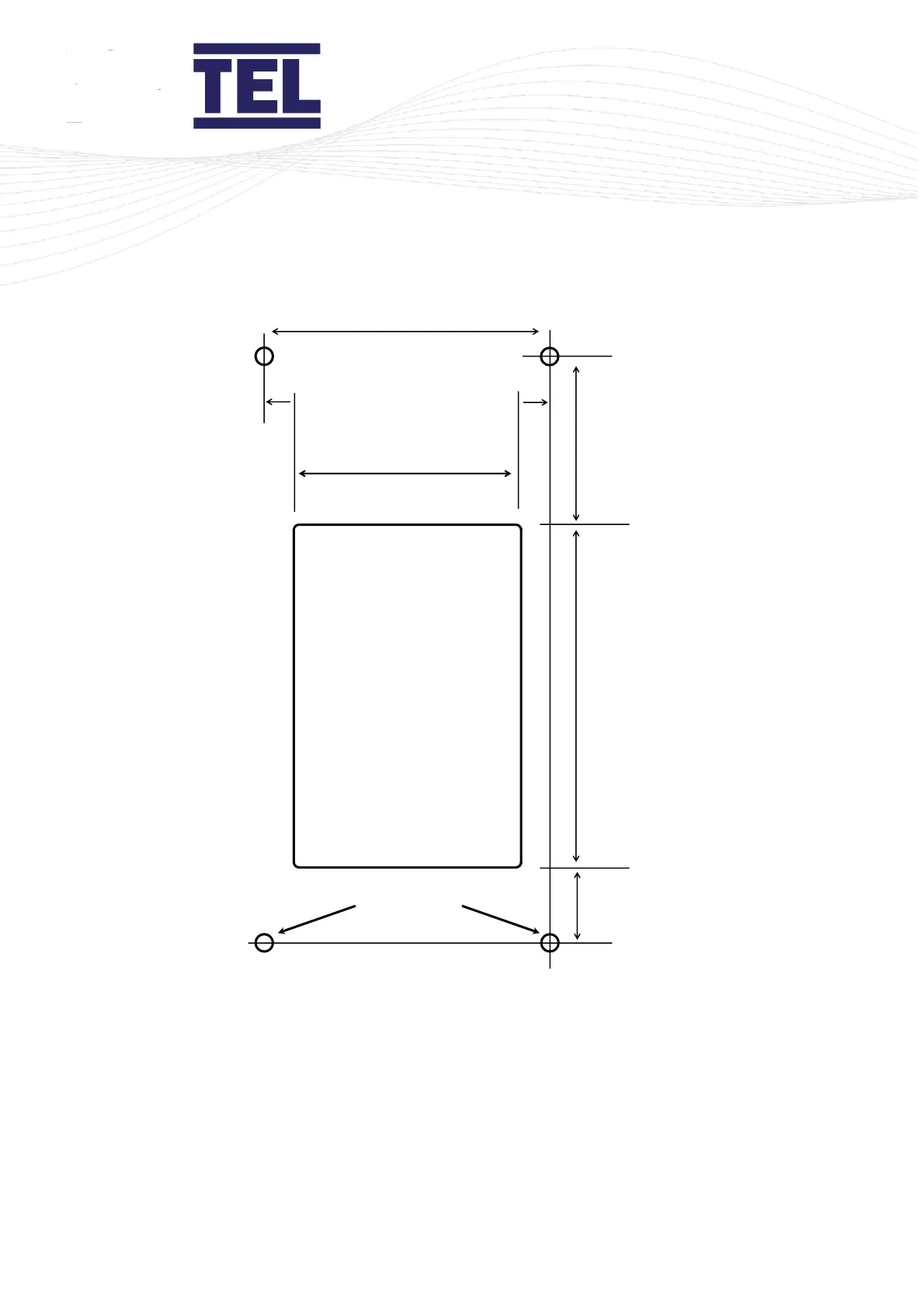

Figure 16: AFA4000 cut-out template
Note: Print to A4. Do not scale or print to fit page.
Note: Separate mounting boxes and adaptor plates are available for retro-fitting to older
fume cupboards.
65mm
2.56”
52mm
2.05”
6.5mm
0.256”
6.5mm
0.256”
38.3mm
1.50”
78mm
3.07”
17.3mm
0.673”
CUT OUT
4 x Fixing Holes
Max 4mmØ
0.157”
