Example of subnets
If your device is connected to a LAN that consists of two subnets, you should enter a
second IP Address / Netmask.
The first subnet has two hosts with the IP addresses 192.168.42.1 and 192.168.42.2, for
example, and the second subnet has two hosts with the IP addresses 192.168.46.1 and
192.168.46.2. To be able to exchange data packets with the first subnet, your device uses
the IP address 192.168.42.3, for example, and 192.168.46.3 for the second subnet. The
netmasks for both subnets must also be indicated.
12.1.1.1 Edit or New
Choose the icon to edit existing entries. Choose the New button to create virtual inter-
faces.

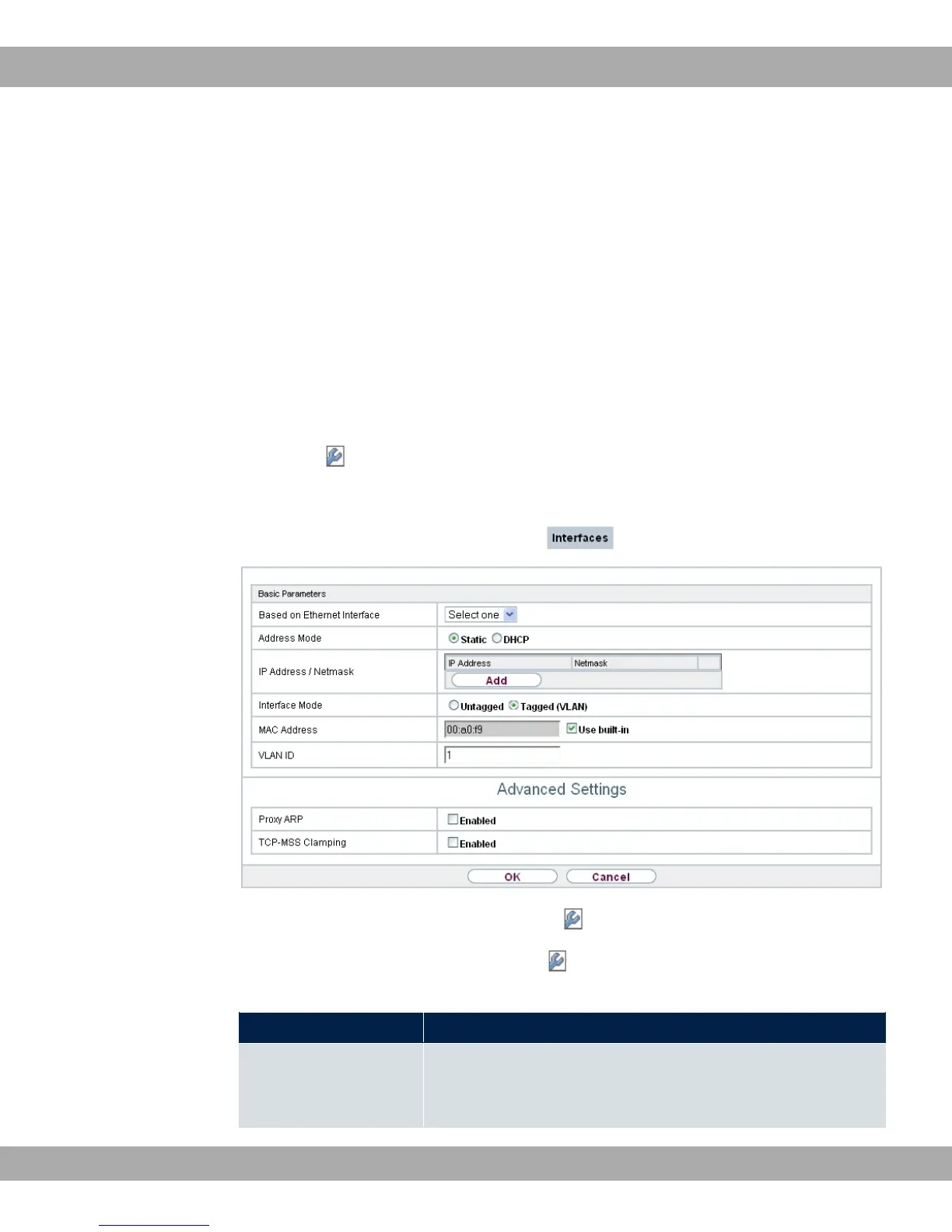

Fig. 57: LAN->IP Configuration->Interfaces-> /New
The LAN->IP Configuration->Interfaces-> /New menu consists of the following fields:
Fields in the Basic Parameters menu.
Field Description
Based on Ethernet In-
terface
This field is only displayed if you are editing a virtual routing in-
terface.
12 LAN Teldat GmbH
146 bintec Rxxx2/RTxxx2
