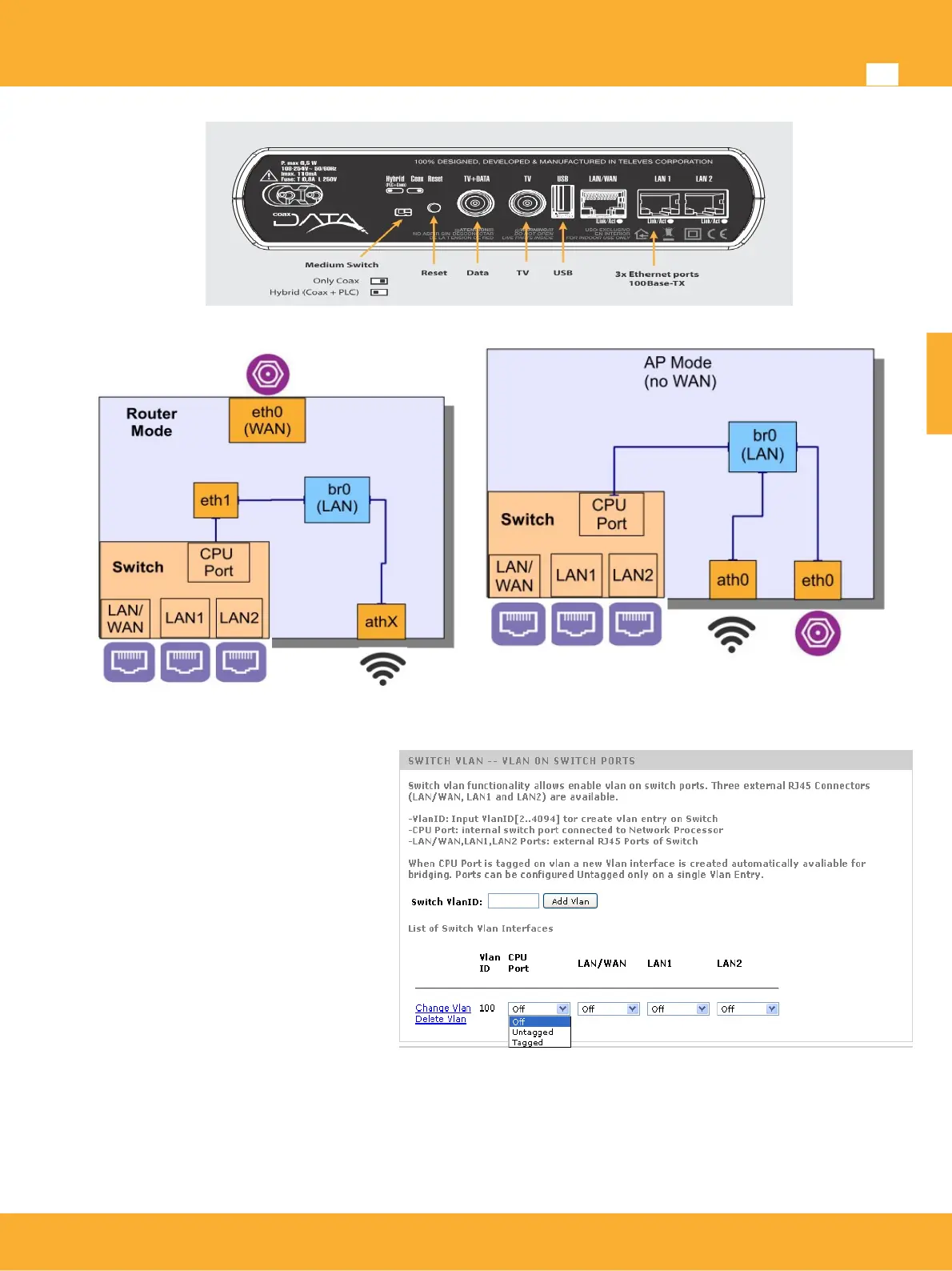

The following image shows a graphic representation of the switch operation:
To create a VLAN on the switch, the VLAN tag must be specified for the configuration of the switch:
And indicate how the switch ports
operate in that VLAN
-Off: The port is not a member of the
VLAN. Traffic associated with the VLAN
will not be transmitted through this
interface.
-Untagged: All untagged traffic arriving
to this interface will be considered a
member of the VLAN. Also, VLAN traffic
will be transmitted over this port without
any kind of Tag.
-Tagged: All traffic with the specified tag
will be assigned to this VLAN. This
VLAN traffic will be transmitted through
this port with the specified Tag.
Once established a VLAN entry in the switch, it has several options
• Change Vlan: Allows to change the port assignment to a particular VLAN.
• Delete Vlan: Allows to delete a VLAN entry in the switch.
