User manual “SCART DVB-T 7117 ”
44
This section explains how to install the SCART DVB-T 7117 Receiver.
Read the manuals supplied with the equipment for the installation of external devices such as the aerial.
When adding a new device, read the respective part of the manual for installation instructions

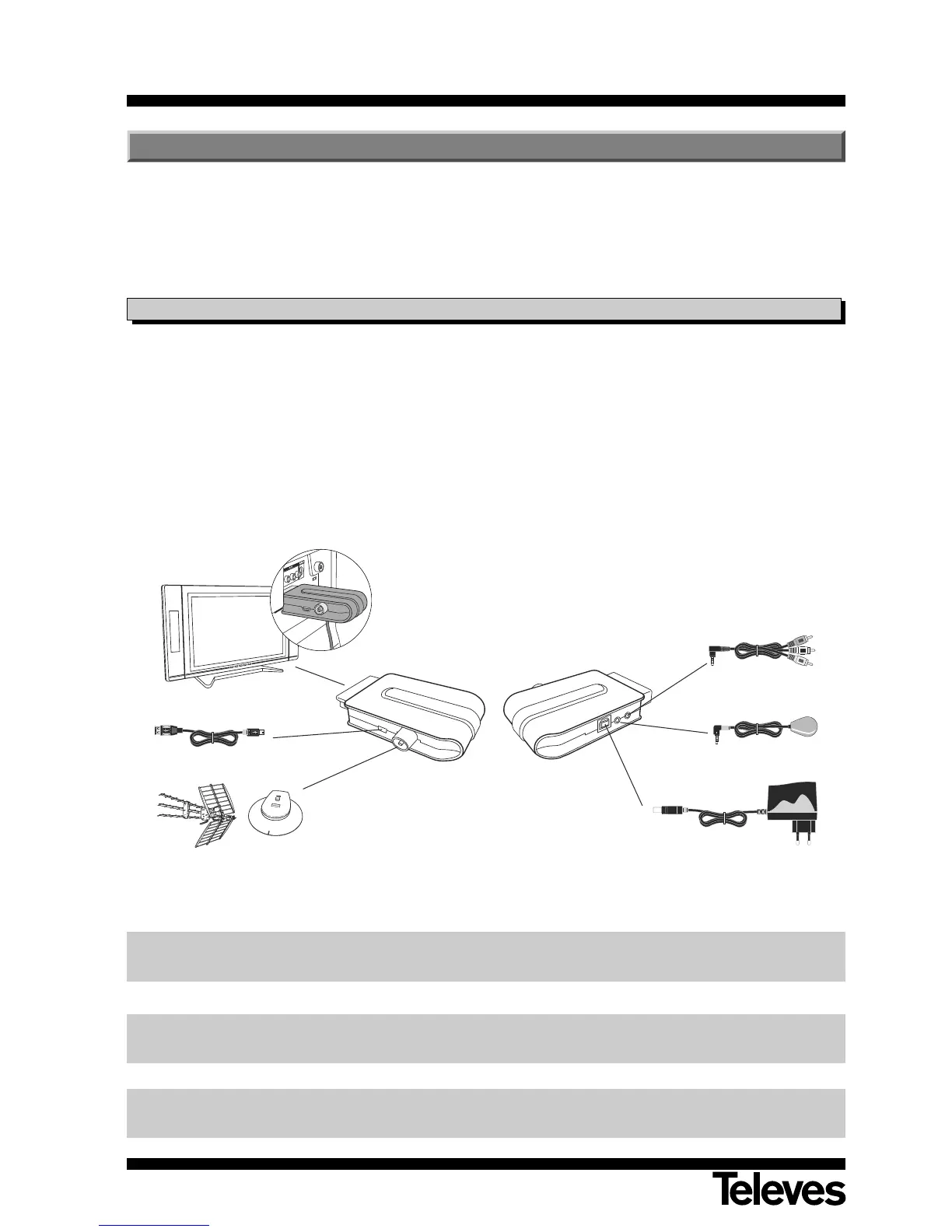

- Connect the receiver directly to the TV Euroconnector or do so with cable A/V (RCA).
- Connect the aerial to the RF IN port of the receiver.
- Connect the IR sensor extension cord to the IR connector. Place the sensor in full view enabling the use of the remote
control.
- Connect the feed adaptor plug to the DC INPUT socket of the receiver.
- Plug the network adaptor into a wall socket (110 - 250V~).
- The receiver will start functioning normally showing the channels tuned.
4.1.- Connections
SCART DVB-T 7117
DO NOT PLUG the Receiver into the network before finalizing all connections
All cables used for Receiver connection should be of the screened type.
Important note: If you want to connect an external disk (FAT 32) to the receiver, you must do so before
connecting the receiver to the mains (230V~).
