User manual “SCART DVB-T 7117 ”
70
PIN TV
1 Audio outlet (R)
2N/A
3 Audio outlet (L)
4 Grounding audio
5 Grounding blue
6N/A
7 Outlet blue
8 Switch voltage
9 Grounding green
10 N/A
11 Outlet green
12 N/A
13 Grounding red
14 “Fast Blanking” grounding
15 Outlet red
16 “Fast Blanking” outlet
17 Grounding Video
18 Grounding Video
19 Outlet Video
20 N/A
21 Grounding
20
18
16
14
12
10
8
6
4
2
1
3
5
7
9
1
13
15
17
19
21

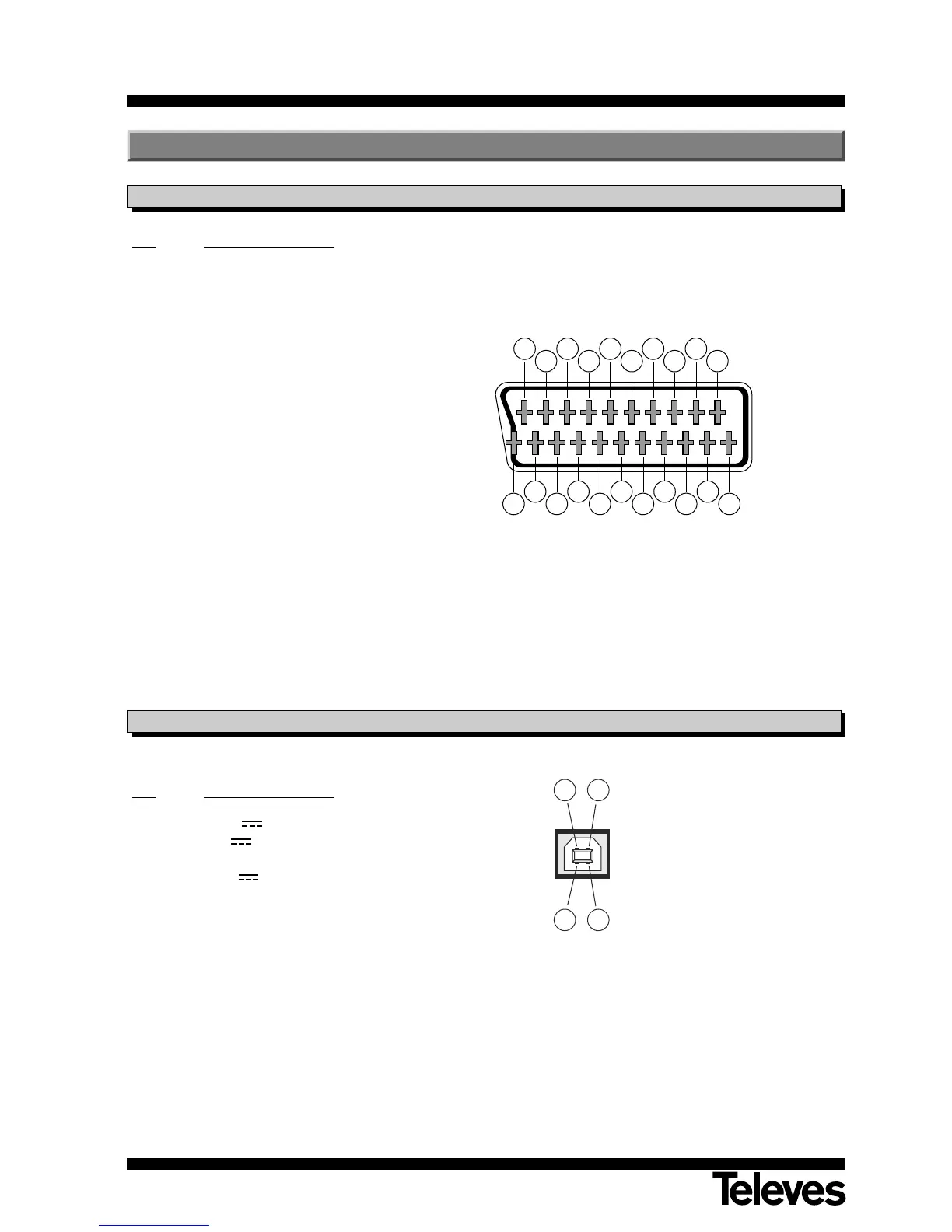

Connector Description
SCART
PIN Description
1 +3,3 V (1200 mA)
2 +5 V (600 mA)
3 Grounding (GND)
4 +12 V (300 mA)
3 1
4 2
DC INPUT
