CHAPTER 2
Installation
Line Setup and Description
Introduction
The Line interface for the C-2000 console provides communication with any standard tone remote system. The pinout of the
line interface connector is shown in Figure 4, which is on the rear panel.

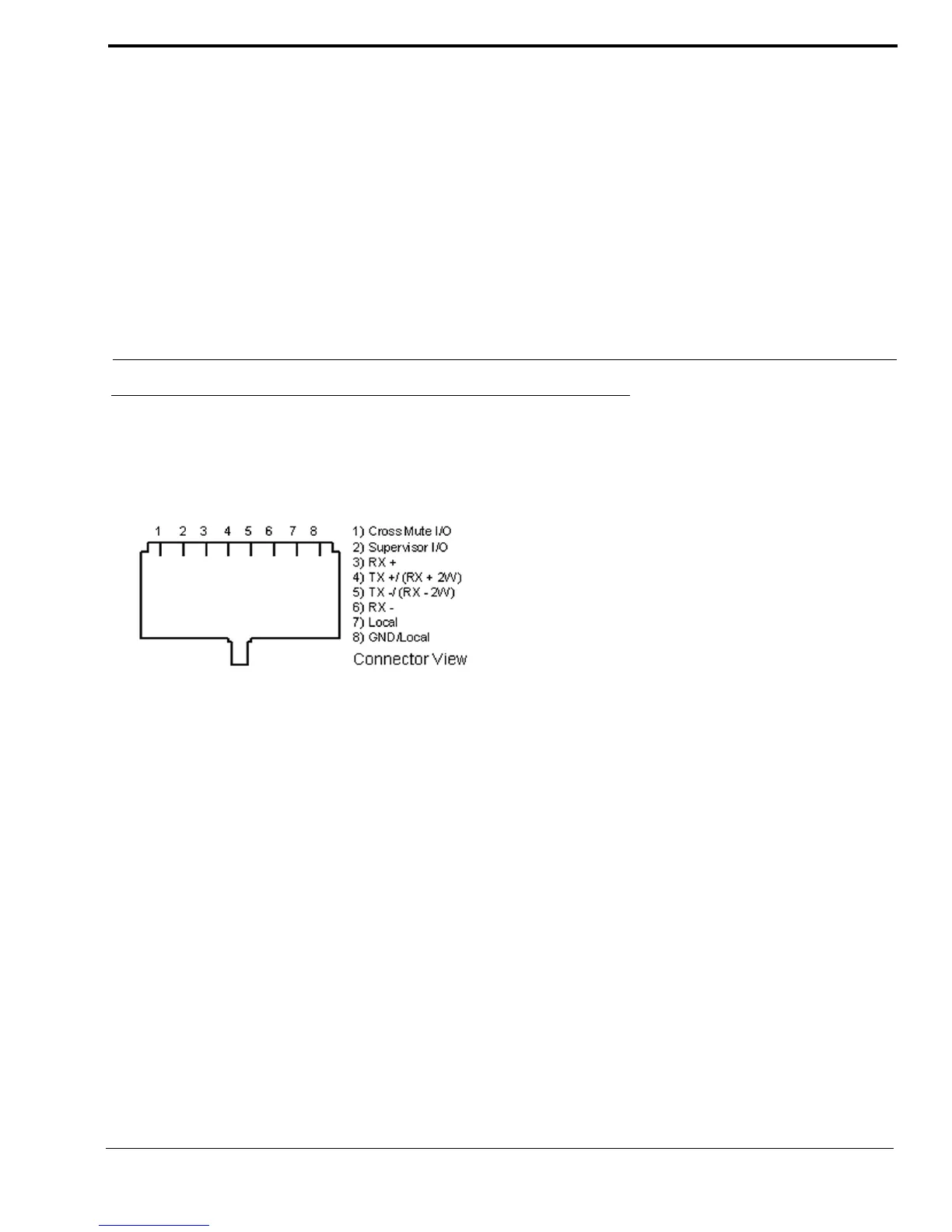

FIGURE 4. Line Connector Pinout
