Hardware Overview
The C-2000 is a single-line, multi-mode console designed specifically for small- to medium-level systems. All functions are
housed in a single small modern looking console.
C-2000 Console
The C-2000 console consists of two (2) sub-assemblies; the main processing board and keypad/display board that are enclosed
in a single case.
Line Interface
The Line interface is an 8-pin RJ-45 connector, using either the standard tone control format compatible with
Motorola and M/A ComNet Ericsson/GE or Local Control relay closure. The line interface may be hardware configured for
either a 2-wire or 4-wire operation and may be factory modified to accommodate non-industry standard tone control formats,
if desired. This is usually a software only change.
Controls and Indicators
Front Panel

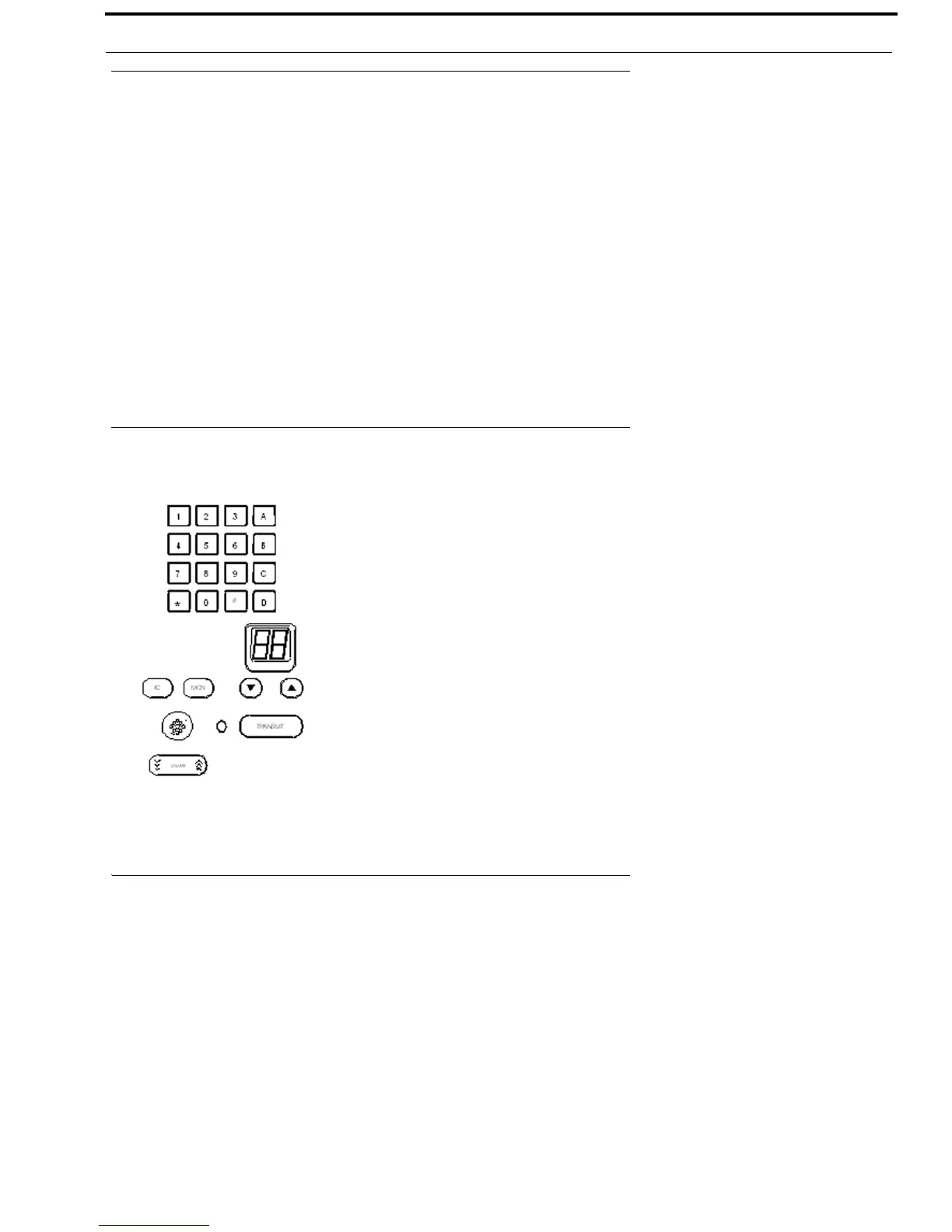

The Front Panel, shown in Figure 1, contains the user I/O. It features volume and function tone selection, intercom and
monitor functions, DTMF keypad, panel PTT and microphone, as well as the dual seven-segment display.
FIGURE 1. Front Panel
