ME910G1 HW Design Guide
1VV0301593 Rev.7 Page 70 of 98 2021-02-02
10. APPLICATION PCB DESIGN
The ME910G1 modules have been designed in order to be compliant with a standard lead-
free SMT process
Recommended footprint for the application
TOP VIEW

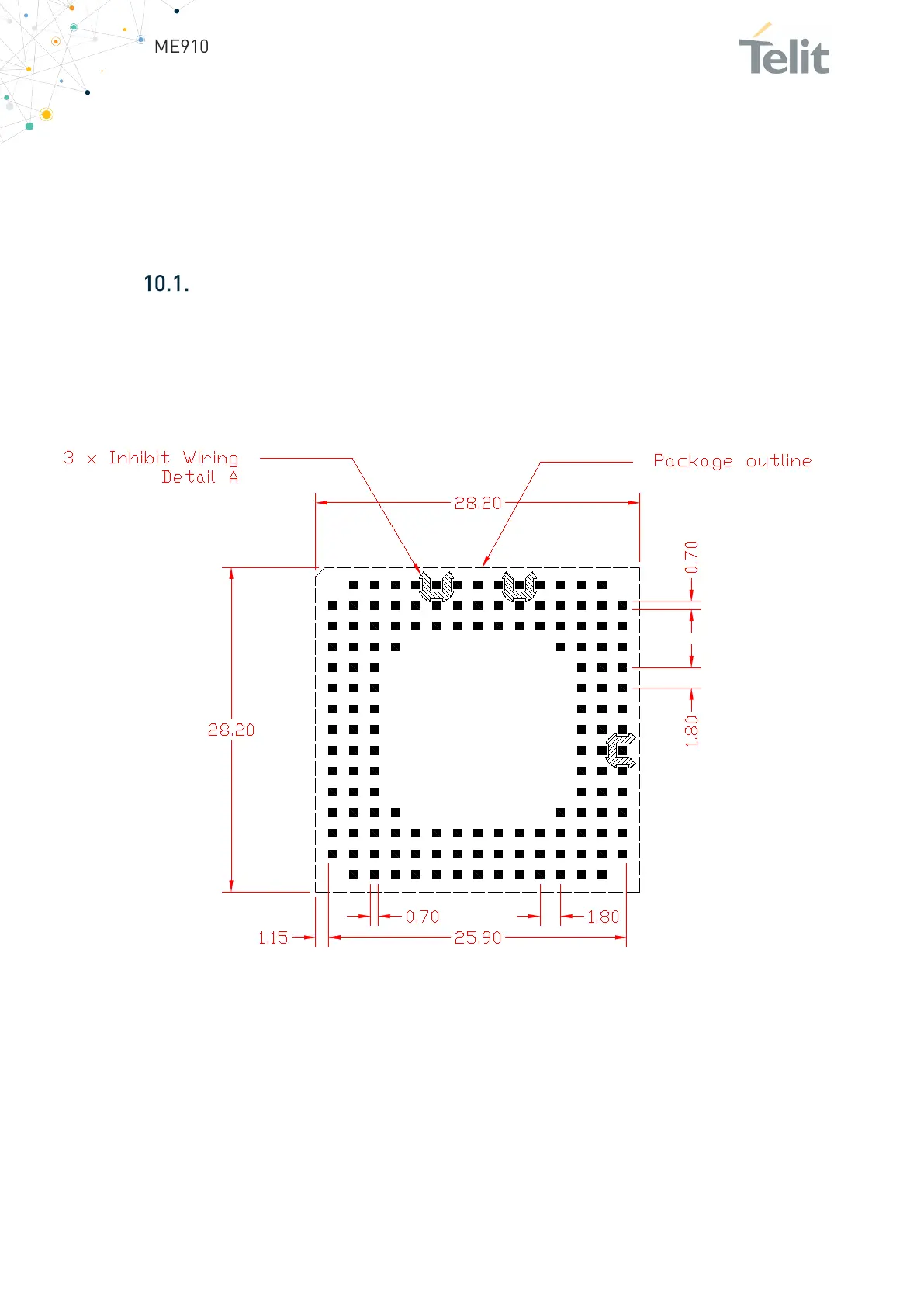

Figure 25: Footprint
