ME910G1 HW Design Guide
1VV0301593 Rev.7 Page 79 of 98 2021-02-02

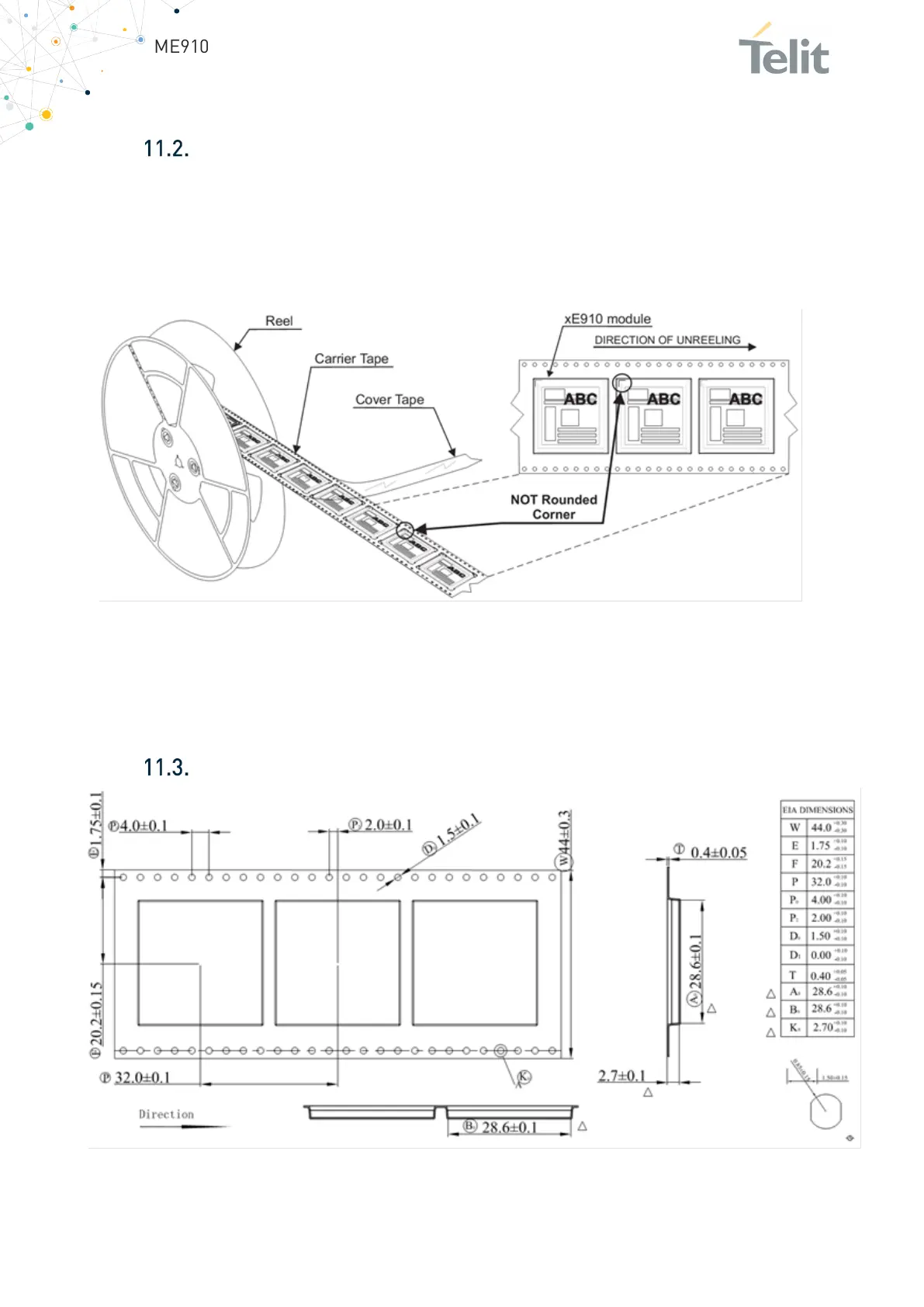

Reel
The ME910 can be packaged on reels of 200 pieces each. See figure for module
positioning into the carrier.
Figure 33: Module positioning into the carrier
Carrier Tape detail
Figure 34: Carrier Tape detail
