SL869x-V2 Family Product User Guide

1VV0301175 Rev. 9 Page 32 of 93 2021-07-15

Not Subject to NDA

6.2.3. Sensitivity - SL869-V2S and SL869L-V2S

Table 11: SL869-V2S and SL869L-V2S Sensitivity

6.2.4. Jamming Mitigation Performance

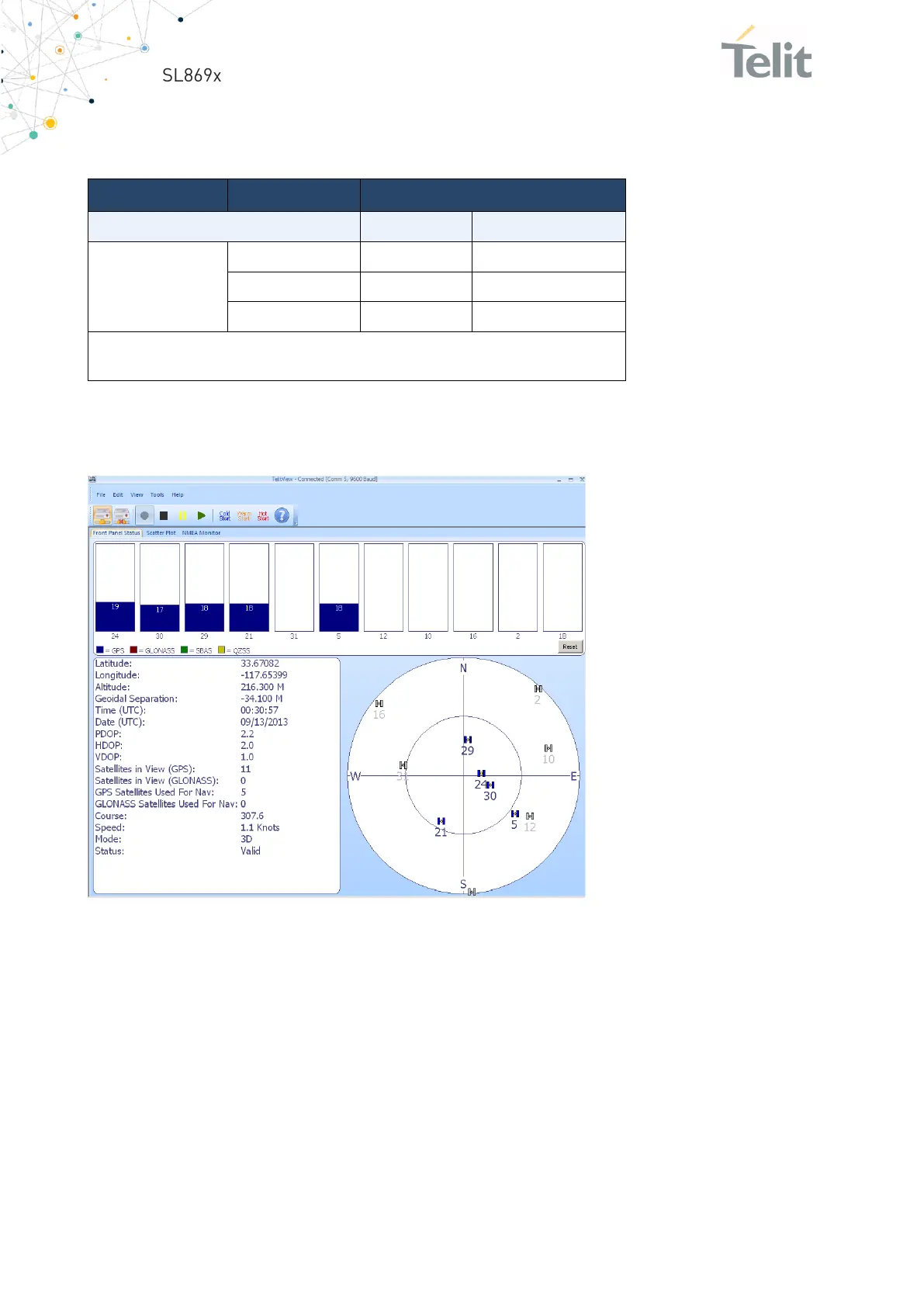

Figure 17:Jamming with AIC Disabled

Constellation

State

Minimum Signal Level (dBm)

SL869-V2S

SL869L-V2S

GPS

Acquisition

-144

-148

Navigation

-159

-161

Tracking

-160

-162

Note: The above performance values were measured under ideal lab conditions using

a GNSS simulator generating a static scenario.
