13. PCB FOOTPRINT
The PCB footprint on the PC board should match the module pad design shown below.
The solder mask opening is generally determined by the component geometry of other
parts on the board and can be followed here.

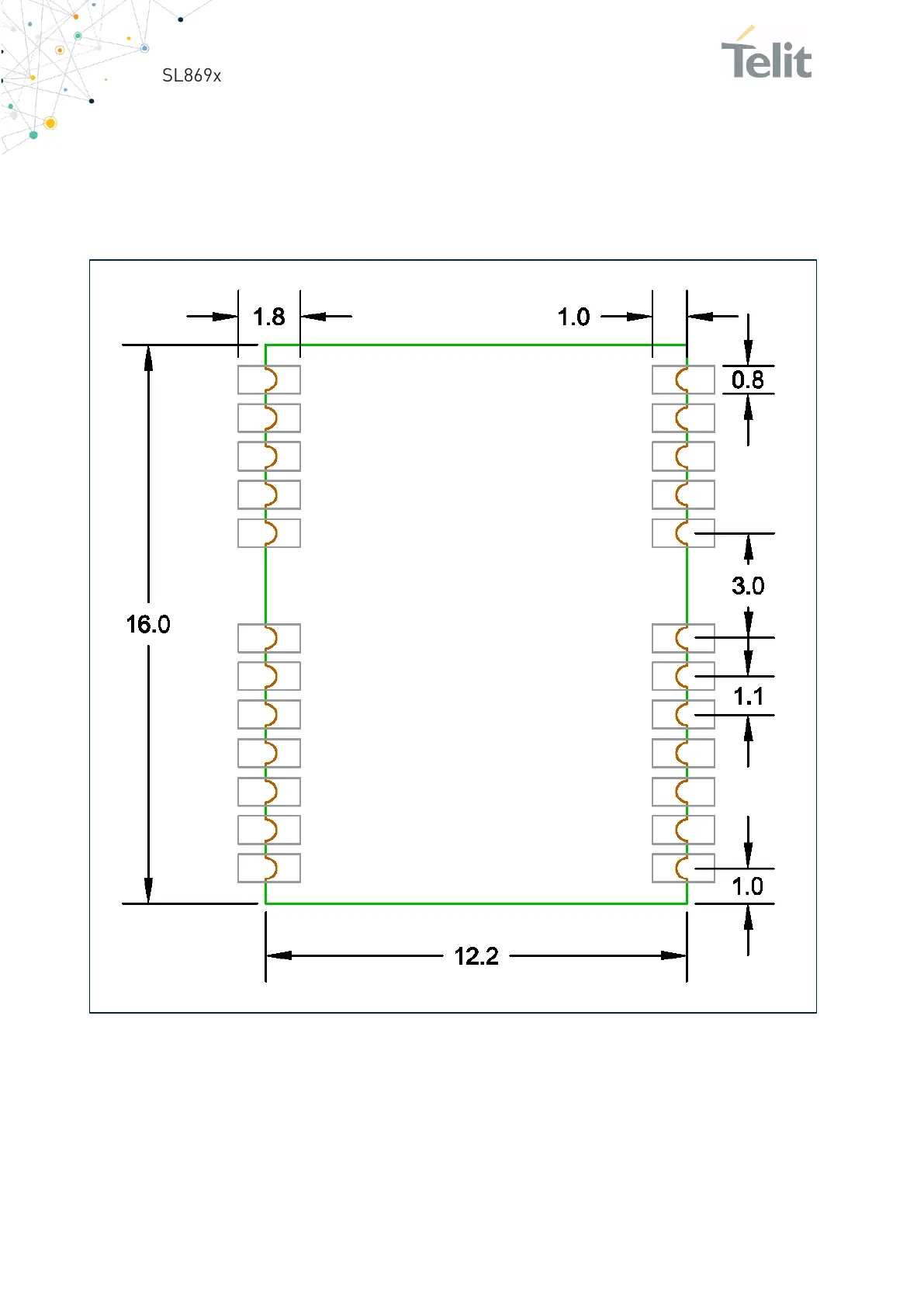

Figure 27: SL869-V2 Family PCB Footprint
