Pad Layout
The Pad layout for both (WE310G4-I and WE310G4-P) versions of the module is almost
the same, the difference are 4 reserved pins of WE310G4-P and the dimension of the
module as WE310G4-I has the onboard antenna.
The following figures show the pad layout:

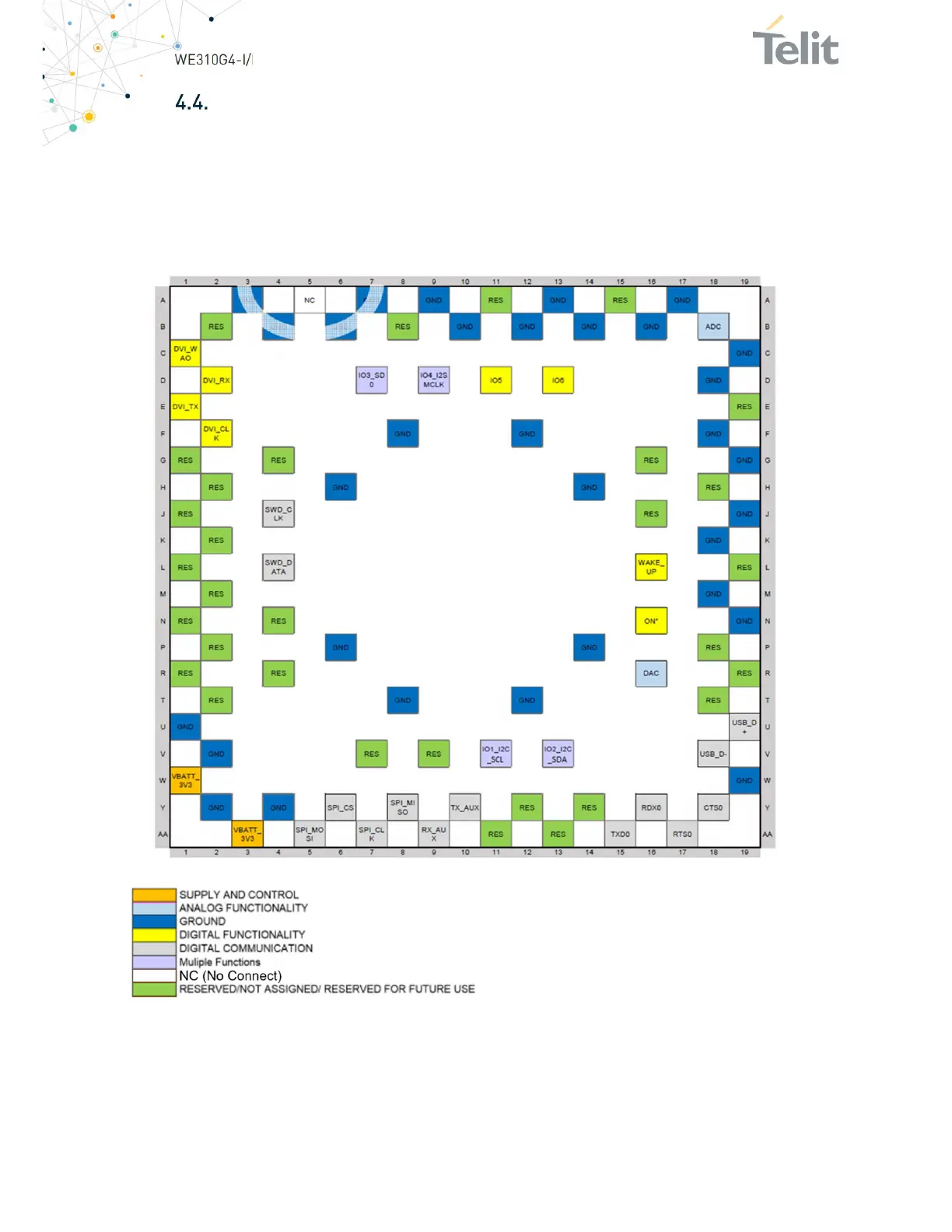

Figure 3: Telit WE310G4-I Pads Layout Top View
Figure 4: Telit WE310G4-I PIN Out Legend
