WE310G4-P
The following is the Top and bottom view of the Telit WE310G4-P module.

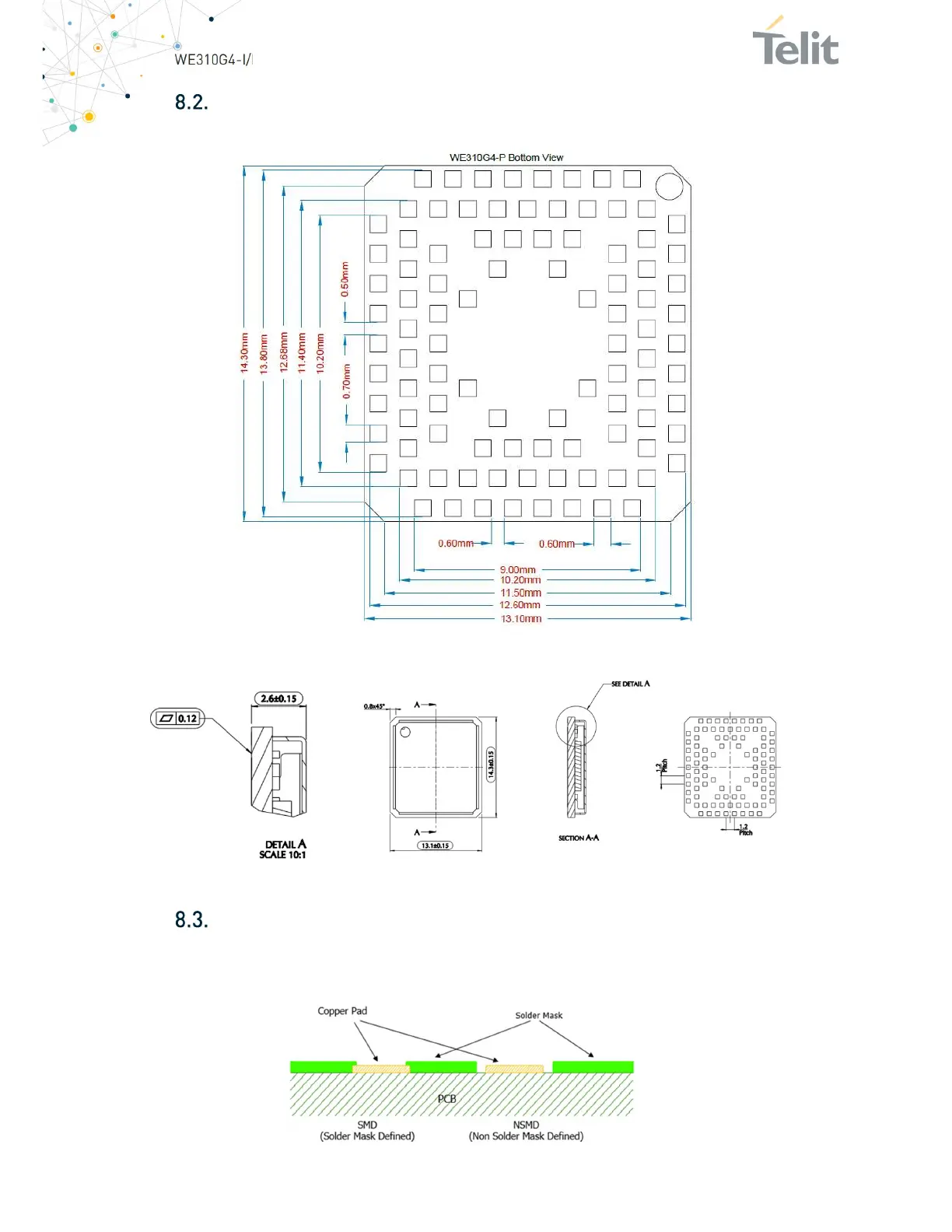

Figure 19: WE310FG4-P Bottom View
Figure 20: WE310G4-P Side View and Mechanical Design
PCB Pad Design
For the solder pads, it is recommended to use Non-Solder Mask Defined pad (NSMD)
on the PCB.
Figure 21: SMD and NSMD Pad
