3) Setting menu display limit (LEVEL) function
The setting menu display limit function limits the range displayed according
to the level set in the control and the setting menus in the T50 series. This can
be used, for example, to prevent user's miscontrol after all settings have been
configured.

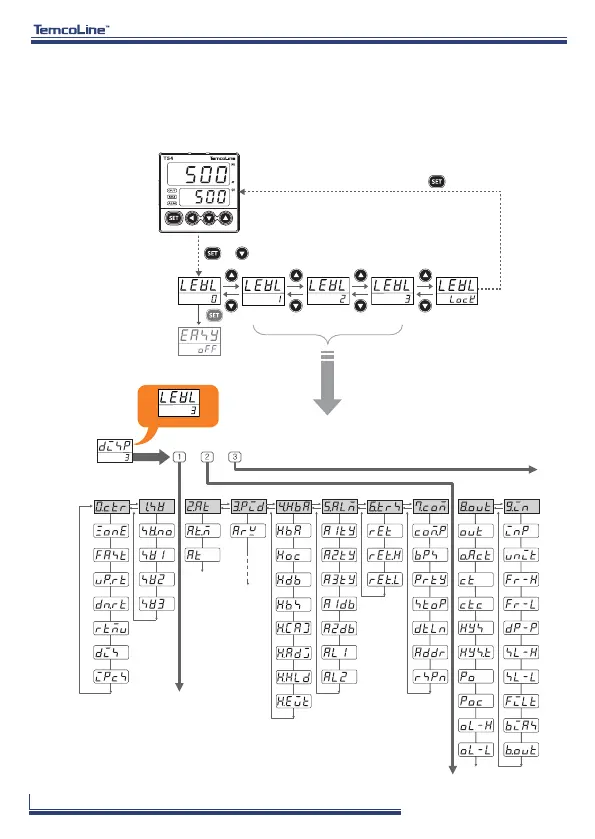

[ L E V E L d i s p l a y r a n g e b y s e t t i n g ]
<operation mode>
LEVEL 1~3
+ 3 sec.
3 sec.
[ LEVEL = Lock ]
Locking all setting
and control menus.
[ LEVEL = 0 ]
This may only change
the target SV.
DISP(LEVEL) = 1 [menu group 0~1]
DISP(LEVEL) = 3 [menu group 0~9] ALL
DISP(LEVEL) = 2 [menu group 0~7]
※ Once auto-tuning has been completed, setting menu display limit
will be set automatically at "level-2" to ensure safety and prevent
user miscontrol. If the input and the output parameters need to
be changed after auto-tuning, set to "level-3" before doing so.
