DIGITAL PID CONTROLLER
24
"Mvn [%] check function" display the control
output[%], which can be viewed by pressing
the key while operating in normal
operation mode and is shown as a
percentage of control output (0~100(%))
in the SV display. In this normal operation
mode, by pressing the key each, showing
the SV and Mvn values alternately.
Any required, value of SV can be adjusted
by , or key and stored by
pressing key.

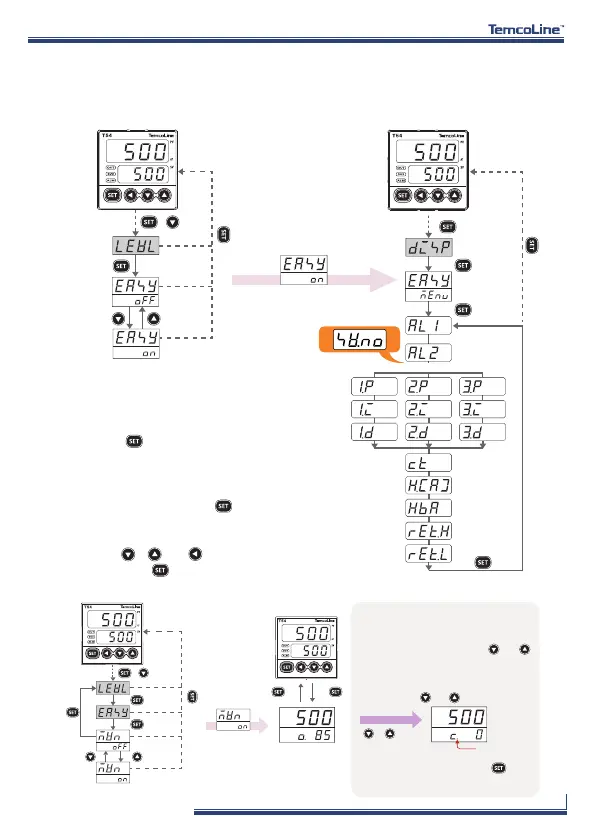

11. Easy function and Safety function
1) Easy Menu
"Easy Menu" is displays the most frequently used functions of the T50 series
and hides the others.
2) Control output[%] (Mvn) check and
manual operation mode
[EASY = ON] User setting menu
operation mode operation mode
(SV. NO = 1)
+ 3 sec.
3 sec.
3 sec.
3 sec.
(SV. NO = 3)(SV. NO = 2)
<Setting method>
※ After manual operating must be return to the normal
operation mode.
<In condition of Mvn=ON>
Mvn display screen
(Present Mvn Out = 85%)
+ 2 sec.
operation mode
operation mode
+ 3 sec.
3 sec.
[Mvn = ON]
PV
SV
PV
SV
<Setting method>
"Mvn [%] Manual Operation" can be used for
testing the control output and for the manual
control system, Press and hold the and
keys simultaneously for 2 seconds in the
control
output (Mvn) display to enter. At this time, you
can manipulate value the desired amount of
output with the and key.
<
Mvn Manual Operation
>
Blinking!
(Display on the manual operation mode)
In manual operation mode, press key for
about 1.5 seconds to return to normal operation
(automatic control) mode.
