Temcoline T54 User Manual

www.temcoline.com
DIGITAL PID CONTROLLER
29

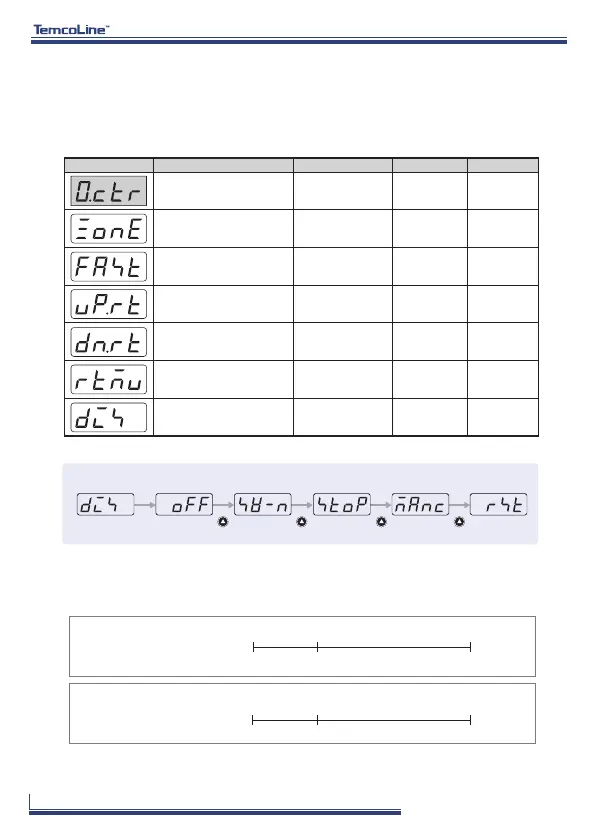

12. Functions of each setting group
1) Control group setting
Control zone, fast function, and ramp function may be selected, and the fast
function works only in PID control mode. In addition, as shown in Table 1, the
3 set values (SV1, SV2, SV3) preset by the two external contact inputs may be
selected and controlled.
※ EU : An engineering unit in compliance with the input range
Ex.) Input selection no. : 01 (K-TYPE)
EU 0 % = -200
EU 100 % = 1370
INPUT -200 0 1370 [℃ ]
EU 0 100 [%]
EUS 0 % = 0
EUS 100 % = 1570
INPUT -200 0 1370 [℃ ]
EUS 0 100 [%]
( 0 ) (200) (1570)
Enter to control group
Control zone selection
Fast mode selection
Initial rising temp. setting
(Ramp function)
Initial drop temp. setting
(Ramp function)
Time (Hour/Minute)
unit selection (Ramp function)
External digital input
ON/OFF switch
-
OFF / ON
OFF / ON
OFF / EUS (0 ~ 100 %)
OFF / EUS (0 ~ 100 %)
MIN / HOUR
OFF / SV1,2,3 / RUN-
STOP / AUTO-MANUAL /
ALARM RESET
-
Always
PID control
Always
Always
Always
D I option
-
OFF
OFF
OFF
OFF
HOUR
OFF
display description setting range condition initial value
※ Function selection menu of external digital input
① OFF ② SV1,2,3 ③ Run/Stop ④ Auto/ Manual ⑤ Alarm(Latch)
selection Reset
selection selection selection selection
