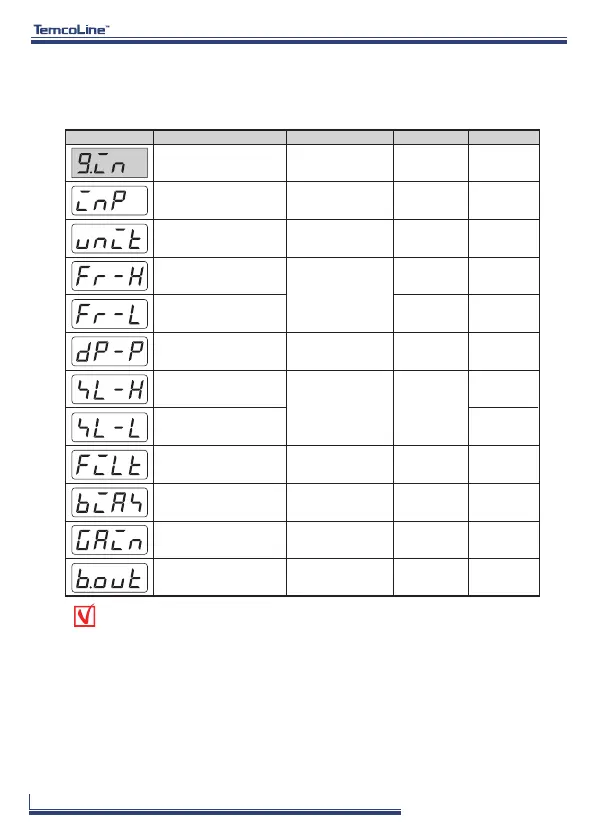

10) Input group setting
The T50 series supports a wide range of specifications, including 12 types of
thermocouples (TC), 2 types of platinum resistance thermometers (RTD), and 3
types of current and voltage inputs.
When the input type is changed, all parameters are reverted to their factory
default. This means that before using the T50, the input type needs to be set
first, after which other parameters can be configured. If the input settings
are changed while in use, auto-tuning and other parameters need to be
reconfigured.
Enter to input setting group
Input type selection
Input temperature
unit selection
High limit
Low limit
Decimal point positioning
(On voltage input)
Scale high
(On voltage input)
Scale low
(On voltage input)
Input digital filter
Input value correction
Correcting upper limit of
input
Burn-out selection
-
1 ~ 33
(refer to P7, 2)
℃ / ℉
Within input range
(refer to next page)
but, Fr-H ＞ Fr-L
0 / 1 / 2 / 3
(On voltage input)
-1999 ~ 9999
But , SL-H ＞ SL-L
Decimal point
positioning by DP-P
OFF / 1~120 sec.
EUS (-100.0~100.0 %)
EUS (-100.0~100.0 %)
OFF / UP / DOWN
-
Always
TC or
RTD input
Always
Always
On voltage input
(mV, V)
On voltage input
(mV, V)
Always
Always
On voltage input
(mV, V)
Always
-
1
℃
1370
-200
1
100.0
0.0
OFF
EUS (0.0%)
EUS (0.0%)
UP
display description setting range condition initial value
