SIDE SLOPE DERATION CHART
Siid

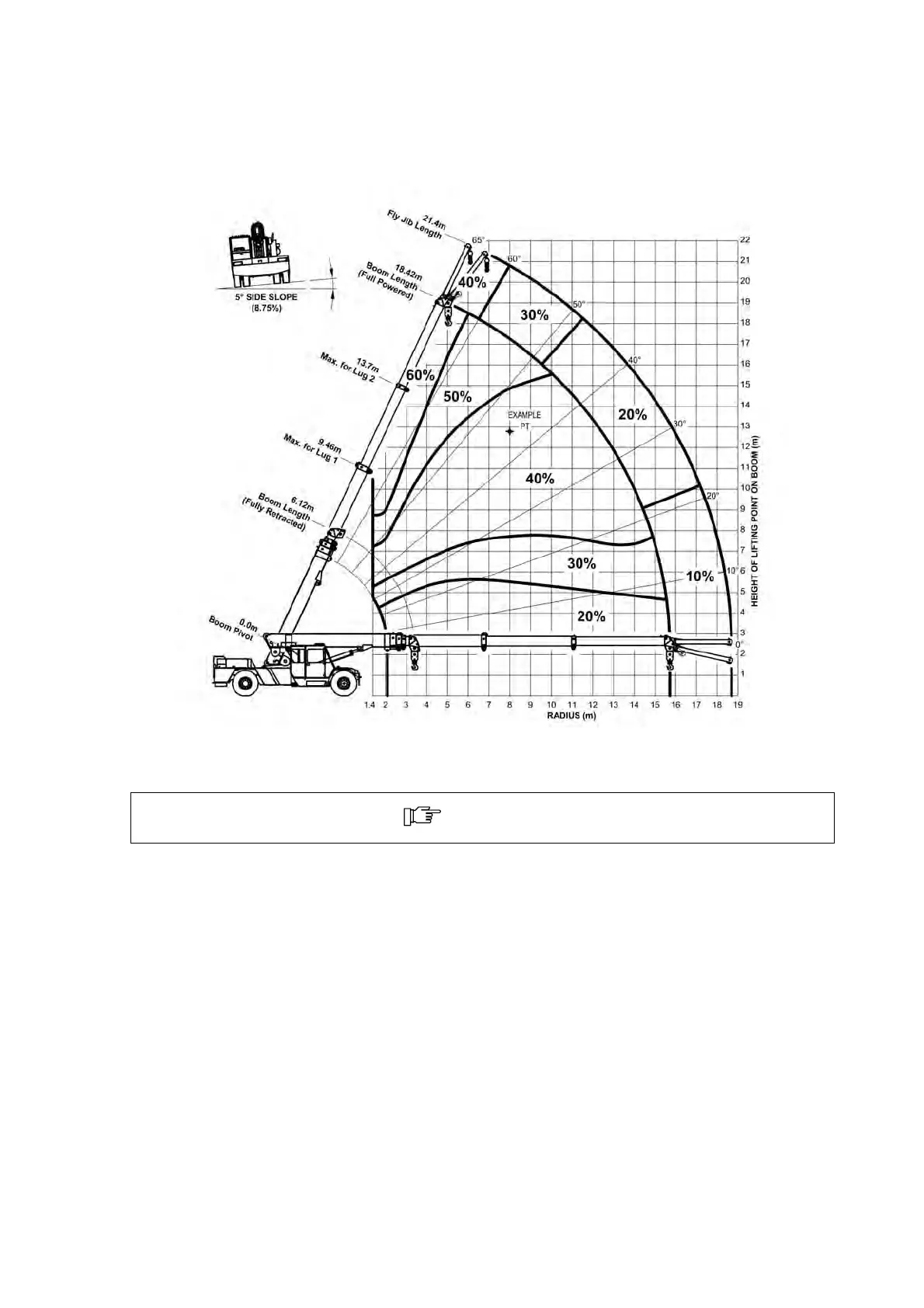

Figure 1: Percentage Deration Chart for MAC 25 at 5 Side Slope
NOTE
1. Percentage deration chart is based on 66.6% stability as per AS 1418.5 with
the crane on a firm side slope of 5 (8.75% Gradient).
2. The percentage deration is dependent upon the location of the lifting point
on the boom.
3. The percentage deration should be applied to the Rated Capacity as read
off the Rated Capacity chart for the applicable boom length, Loaded Boom
Angle, Load Radius, Articulation Angle and Counterweight Position. See
over page for an example.
9 MXC1347B
