Terex MAC 25 User Manual

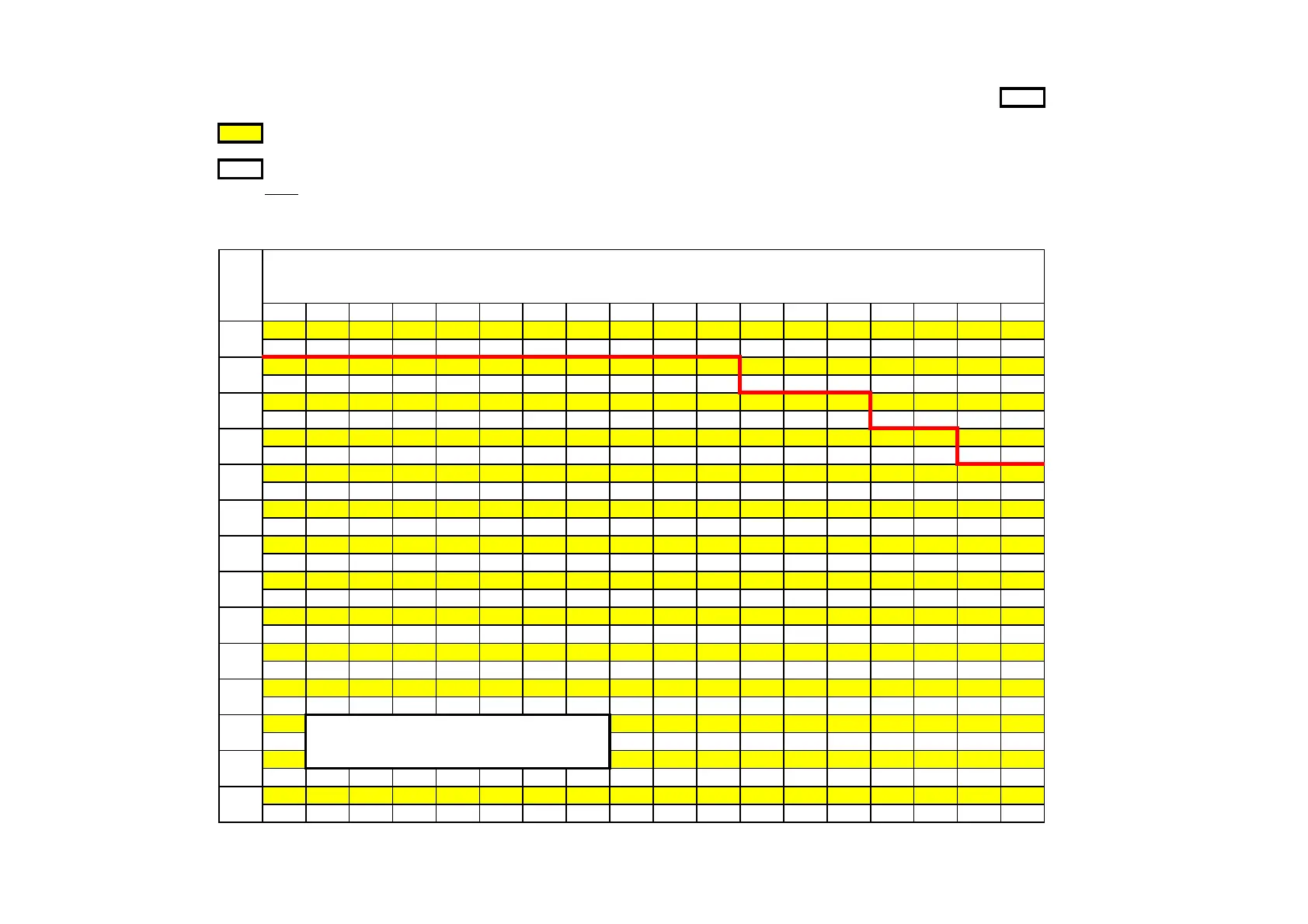

MAC-25 LUG 2 LOAD CHART - 10 DEG. ART
.
LMI DUT
Y
112
COUNTERWEIGHT ON FRONT OF CRANE - SPRING LOCKOUTS ENGAGED
S.W.L IN KILOGRAMS FOR SLEW ANGLES OF 10 DEGREES OR LESS EITHER
S.W.L. ARE BASED ON 66.7% STABILITY & STRENGTH
SIDE OF STRAIGHT AHEAD (INDICATED BY GREEN LED ON DASH).
- S.W.L. ABOVE BOLD RED LINE ARE STRUCTURAL
BOOM ANGLE - UNDEFLECTED (REF.)
S.W.L. ARE BASED ON FIRM LEVEL GROUND (1% SLOPE (0.6 DEG)
NOTE :
VALUES IN BRACKETS ( ) ARE ACTUAL RADIUS AT ZERO DEG. BOOM ANGLE. AS PER AS1418.5) WITH TYRES INFLATED AS PER NOTES
Radius BOOM PIVOT TO LUG 2, 2nd EXTENSION, THIRD EXTENSION RETRACTED
in (metres)
Metres 5.57 6.00 6.50 7.00 7.50 8.00 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 12.50 13.00 13.50 13.77
1.4
24550 24500 24450 24400 24350 24300 24200 24150 24100
42 46 50 54 57 59 61 63 64
2
19650 19600 19600 19550 19550 19500 19500 19450 19450 19450 19400 19400
32 38 43 47 51 54 56 58 60 62 63 64
2.5
15400 15400 15350 15350 15350 15300 15300 15300 15250 15250 15250 15200 15200 15200
20 29 36 42 46 49 52 54 57 58 60 62 63 64
3
13150 12550 12550 12550 12550 12500 12500 12500 12450 12450 12450 12450 12400 12400 12400 12400
(2.9) 18 28 35 40 44 48 50 53 55 57 59 60 61 63 64
3.5
11200 10500 10550 10500 10500 10500 10500 10450 10450 10450 10450 10450 10400 10400 10400
10400 10400
(3.3) 17 27 34 39 43 46 49 51 54 55 57 59 60 61
62 63
4
9500 9000 9000 9000 9000 9000 8950 8950 8950 8950 8950 8950 8900 8900
8900 8900
(3.8) 16 26 33 38 42 45 48 50 52 54 56 57 59
60 61
5
8200 7150 6850 6900 6900 6850 6850 6850 6850 6850 6850 6850 6850 6800 6800
(4.3) (4.8)
15 25 31 36 39 43 45 48 50 52 53 55 56
6
6350 5650
5450 5450 5450 5450 5450 5450 5450 5450 5450 5450 5400
(5.3) (5.8)
14 23 29 34 37 41 43 46 48 50 51
7
5050 4550
4450 4450 4450 4450 4450 4450 4450 4450 4450
(6.3) (6.8)
14 22 28 32 36 39 42 44 45
8
4150 3750
3700 3700 3700 3700 3700 3700 3700
(7.3) (7.8)
13 21 27 31 34 37 39
9
3400 3150
3100 3100 3100 3100 3100
(8.3) (8.8)
12 20 26 30 32
10
NOTE : WEIGHT OF HOOKS, BLOCKS & OTHER
2850 2650
2600 2600 2600
LOAD HANDLING DEVICES SHALL BE ADDED
(9.3) (9.8)
12 19 23
11
TO THE WEIGHT OF THE LOAD
2400 2250 2200
(10.3) (10.8)
6
11.1
2150
(11.1)
ENSURE WINCH ROPE IS FULLY TENSIONED
TO THE GROUND AS POSSIBLE AT SPEEDS NOT IN EXCESS OF 0.4 M/SEC (1.44 KM/HR)
LIFT & CARRY - THE S.W.L. SHALL BE CARRIED WITH THE MIN BOOM LENGTH & AS CLOSE
31/66 MXC1347B COUNTERWEIGHT - FRONT MAC 25 LUG 2 - 10 DEG
