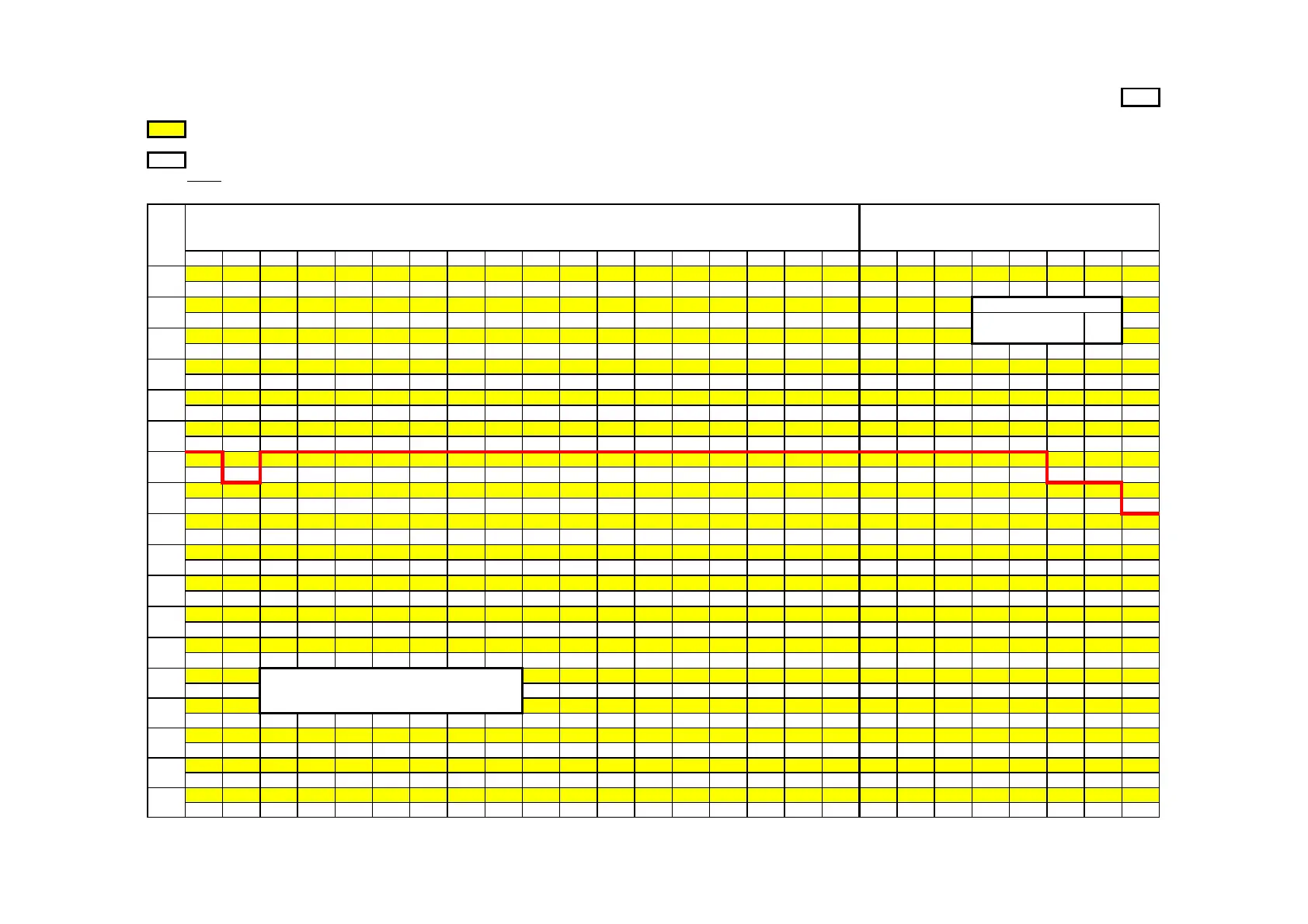

MAC-25 OFFSET HEAD BOTTOM POSITION LOAD CHART - 10 DE
G
LMI DUT
Y
103
COUNTERWEIGHT ON FRONT OF CRANE - SPRING LOCKOUTS ENGAGED
S.W.L. ARE BASED ON 66.7% STABILITY & STRENGTH
S.W.L IN KILOGRAMS FOR SLEW ANGLES OF 10 DEGREES OR LESS EITHER
- S.W.L. ABOVE BOLD RED LINE ARE STRUCTURAL
SIDE OF STRAIGHT AHEAD (INDICATED BY GREEN LED ON DASH).
S.W.L. ARE BASED ON FIRM LEVEL GROUND (1% SLOPE (0.6 DEG) AS PER AS1418.5)
BOOM ANGLE - UNDEFLECTED (REF.)
WITH TYRES INFLATED AS PER NOTES
NOTE :
VALUES IN BRACKETS ( ) ARE ACTUAL RADIUS AT ZERO DEG. BOOM ANGLE.
LIFT & CARRY - THE S.W.L. SHALL BE CARRIED WITH THE MINIMUM BOOM LENGTH & AS
CLOSE TO THE GROUND AS POSSIBLE AT SPEEDS NOT IN EXCESS OF 0.4 M/SEC (1.44 KM/HR)
Radius BOOM PIVOT TO EDGE OF SHEAVE - THIRD BOOM RETRACTED THIRD BOOM EXTENDING
in
(metres) (metres)
Metres 6.86 7.00 7.50 8.00 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 12.50 13.00 13.50 14.00 14.50 15.06 15.50 16.00 16.50 17.00 17.50 18.00 18.50 19.16
1.4
8400 8400 8400 8400 8400 8400
55 56 59 61 63 65
2.0
8400 8400 8400 8400 8400 8400 8400 8400 8400
WINCH S.W.L.
49 50 53 56 58 60 62 64 65 SINGLE PART 4200
2.5
8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 TWO PARTS 8400
43 44 48 51 54 56 58 60 62 63 65
3.0
8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400
36 38 43 46 50 52 55 57 59 60 62 63 64 65
3.5
8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400
27 30 36 41 45 48 51 53 55 57 59 60 62 63 64 65
4.0
8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400
(4.2) 19 29 35 40 44 47 50 52 54 56 58 59 60 62 63 64 65
5.0
8400 7650 7300 7300 7250 7250 7200 7200 7200 7150 7150 7150 7100 7100 7100 7100 7050 7100 7150 7200 7200 7250
(4.3) (4.8) 18 27 33 38 41 44 47 49 52 53 55 57 58 59 61 61 62 63 64 65
6.0
6750 6050 5800 5800 5800 5750 5750 5750 5700 5700 5700 5700 5650 5650 5650 5700 5700 5750 5800 5800 5850 5850 5850
(5.3) (5.8) 16 25 31 36 39 42 45 47 49 51 53 54 56 57 58 59 60 61 62 63 64
7.0
5400 4900 4750 4750 4700 4700 4700 4700 4700 4650 4650 4650 4650 4650 4700 4750 4750 4800 4800 4850 4900
(6.3) (6.8) 16 24 30 34 37 40 43 45 47 49 51 52 54 55 56 57 59 59 61
8.0
4450 4050 3950 3950 3950 3900 3900 3900 3900 3900 3850 3900 3950 3950 4000 4050 4050 4100 4100
(7.3) (7.8) 15 23 28 33 36 39 41 44 46 48 49 51 52 53 55 56 57
9.0
3700 3400 3300 3300 3300 3300 3300 3300 3300 3300 3350 3400 3400 3450 3450 3500 3500
(8.3) (8.8) 14 22 27 31 35 37 40 42 44 46 48 49 51 52 53
10
3150 2900 2800 2800 2800 2800 2800 2850 2850 2900 2950 2950 3000 3000 3050
(9.3) (9.8) 14 21 26 30 34 36 39 41 43 45 46 48 50
11
2650 2450 2400 2400 2400 2450 2450 2500 2550 2550 2600 2600 2650
(10.3) (10.8) 13 20 26 29 32 35 37 40 42 43 45
12
NOTE : WEIGHT OF HOOKS, BLOCKS & OTHER 2300 2100 2050 2100 2150 2200 2200 2250 2250 2300 2300
LOAD HANDLING DEVICES SHALL BE ADDED (11.3) (11.8) 14 20 24 28 31 34 36 39 41
13
TO THE WEIGHT OF THE LOAD 1950 1850 1850 1900 1900 1950 2000 2000 2050
(12.4) (12.8) 12 19 24 27 30 33 36
14
1750 1700 1700 1700 1750 1750 1800
(13.3) (13.8) 12 18 23 27 30
15
1600 1500 1500 1550 1600
(14.3) (14.8) 12 18 24
16.4
1450 1400 1300
(15.3) (15.8) (16.4)
20/66 MXC1347B COUNTERWEIGHT - FRONT MAC 25 OFFSET HEAD BOTTOM POSITION - 10 DEG
