Terex MAC 25 - Page 55

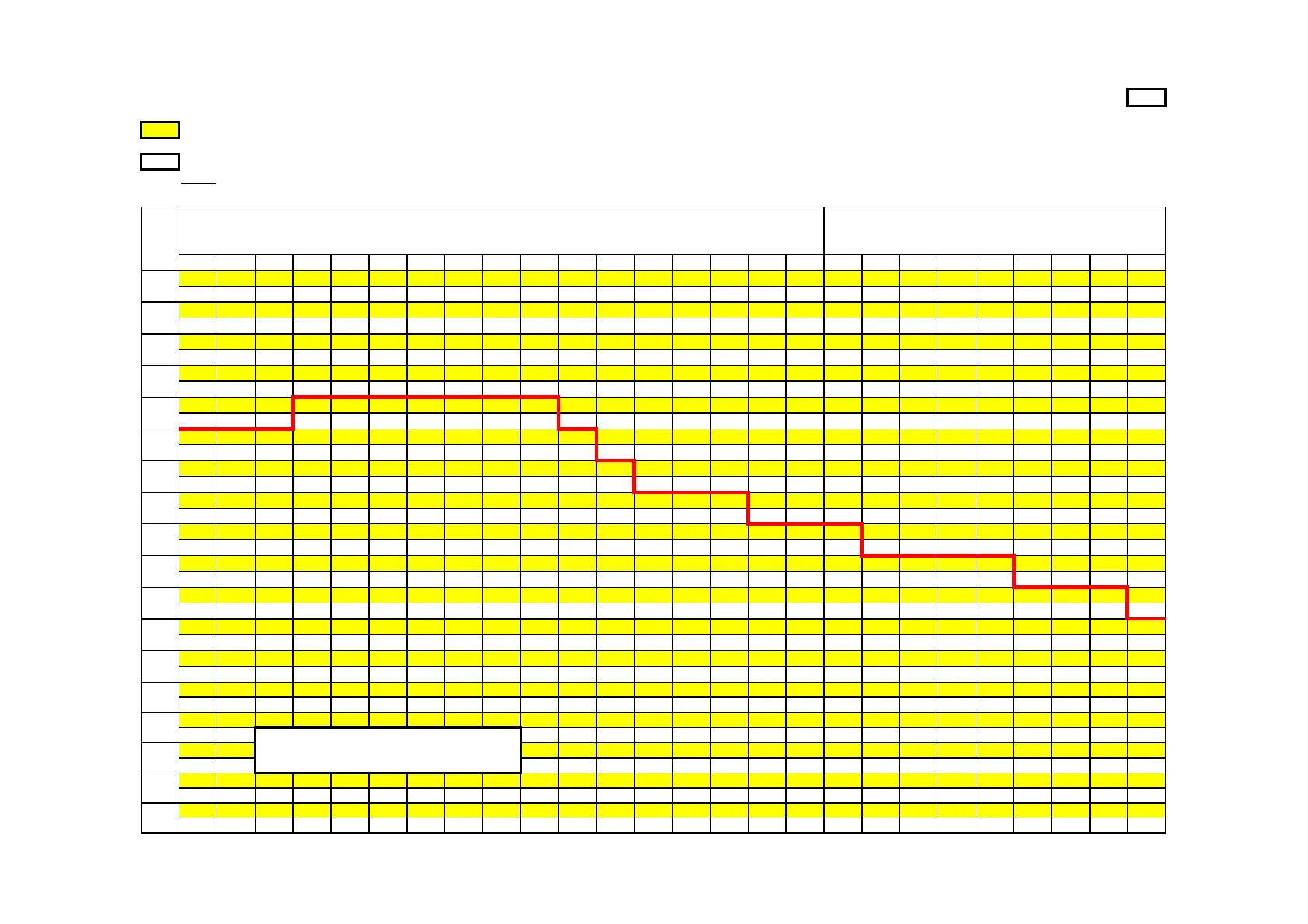

MAC-25 RHINO HOOK LOAD CHART - 10 DEG
LMI DUTY
302
STANDARD 1500 KG COUNTERWEIGHT (PLMXF2009) + EXTRA 2160 KG COUNTERWEIGHT (PLMXF2019-) ON REAR OF CRANE - SPRING LOCKOUTS ENGAGE
D
RC IN KILOGRAMS FOR SLEW ANGLES OF 10 DEGREES OR LESS EITHER
RC ABOVE BOLD RED LINE ARE STRUCTURAL
SIDE OF STRAIGHT AHEAD (INDICATED BY GREEN LED ON DASH).
RC ARE BASED ON FIRM LEVEL GROUND (1% SLOPE (0.6 DEG) AS PER AS1418.5)
BOOM ANGLE - UNDEFLECTED (REF.)
WITH TYRES INFLATED AS PER NOTES
NOTE :
VALUES IN BRACKETS ( ) ARE ACTUAL RADIUS AT ZERO DEG. BOOM ANGLE.
LIFT & CARRY - THE RC SHALL BE CARRIED WITH THE MINIMUM BOOM LENGTH & AS
RC ARE BASED ON 66.6% STABILITY & STRENGTH CLOSE TO THE GROUND AS POSSIBLE AT SPEEDS NOT IN EXCESS OF 0.4 m/s (1.44 km/h)
Radius BOOM PIVOT TO HOOK CENTRE - THIRD BOOM RETRACTED THIRD BOOM EXTENDING
in (metres) (metres)
Metres 6.45 7.00 7.50 8.00 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 12.50 13.00 13.50 14.00 14.65 15.00 15.50 16.00 16.50 17.00 17.50 18.00 18.50 18.75
1.4
15000 15000 15000 15000 15000 15000 15000
51 55 58 60 62 64 65
2.0
15000 15000 15000 15000 15000 15000 15000 15000 15000 15000
44 49 52 55 57 59 61 63 64 65
2.5
15000 15000 15000 15000 15000 15000 15000 15000 15000 15000 15000 14200
37 43 47 50 53 56 58 59 61 63 64 65
3.0
15000 15000 15000 15000 15000 15000 15000 15000 15000 15000 15000 13200 12750 12300
29 36 41 45 49 52 54 56 58 60 61 62 64 65
3.5
15000 15000 15000 14950 14950 14900 14900 14850 14850 14800 14000 12300 11850 11450 11150 10800
17 29 35 40 44 47 50 52 55 56 58 60 61 62 63 64
4.0
13950 12950 12950 12900 12900 12850 12850 12800 12800 12800 12750 11500 11100 10750 10400 10100 9750 9600 9450
(3.7) 18 28 34 39 43 46 49 51 53 55 57 58 60 61 62 63 64 65
5.0
11950 10500 10000 10000 10000 10000 9950 9950 9950 9950 9900 9800 9500 9200 8900 8600 8500 8350 8200 8050 7900 7800 7700
(4.3) (4.8) 16 26 32 37 40 44 46 49 51 53 54 56 57 59 60 61 62 63 64 65 65
6.0
9350 8400 8100 8100 8050 8050 8050 8050 8000 8000 8000 8000 7950 7650 7550 7400 7300 7200 7050 6950 6850 6800 6650
(5.3) (5.8) 15 24 30 35 38 42 44 47 49 51 52 54 55 57 58 59 60 61 62 63 63
7.0
7600 6950 6700 6700 6700 6650 6650 6650 6650 6650 6650 6600 6650 6700 6550 6450 6350 6250 6200 6100 6050
(6.3) (6.8) 15 23 29 33 37 40 42 45 47 49 50 52 53 55 56 57 58 59 60
8.0
6350 5850 5650 5650 5650 5650 5650 5600 5600 5600 5650 5650 5700 5750 5750 5700 5600 5550 5500
(7.3) (7.8) 14 22 28 32 35 38 41 44 45 47 49 50 52 53 54 55 56
9.0
5400 5000 4850 4850 4850 4850 4800 4800 4850 4900 4900 4950 4950 5000 5050 5050 5050
(8.3) (8.8) 13 21 27 31 34 38 39 42 44 46 47 49 50 51 52
10
4600 4300 4200 4200 4200 4200 4200 4250 4300 4300 4350 4350 4400 4400 4450
(9.3) (9.8) 13 20 26 31 33 36 38 40 42 44 46 47 48
11
4000 3750 3650 3650 3700 3700 3750 3800 3800 3850 3850 3900 3900
(10.3) (10.8) 12 21 25 29 32 35 37 39 41 43 44
12
3500 3250 3250 3300 3300 3350 3400 3400 3450 3450 3450
(11.3) (11.9) 12 19 24 28 31 34 36 38 39
13
3100 2950 2950 3000 3000 3050 3050 3100 3100
NOTE : WEIGHT OF HOOKS, BLOCKS & OTHER (12.3) (12.8) 12 18 23 27 30 33 34
14
LOAD HANDLING DEVICES SHALL BE ADDED 2850 2700 2700 2700 2750 2800 2800
TO THE WEIGHT OF THE LOAD (13.3) (13.8) 11 18 23 26 28
15
2600 2500 2450 2500 2500
(14.3) (14.8) 11 17 20
16
2400 2300 2250
(15.3) (15.8) (16.)
52/66 MXC1347B 16.6t RAW COUNTERWEIGHT - REAR MAC 25 RHINO HOOK - 10 DEG
