Terex RL4000 Operator's Manual

Operator's Manual First Edition • Second Printing
30 RL4000 • TML-4000 Part No. 116692
Operating Instructions

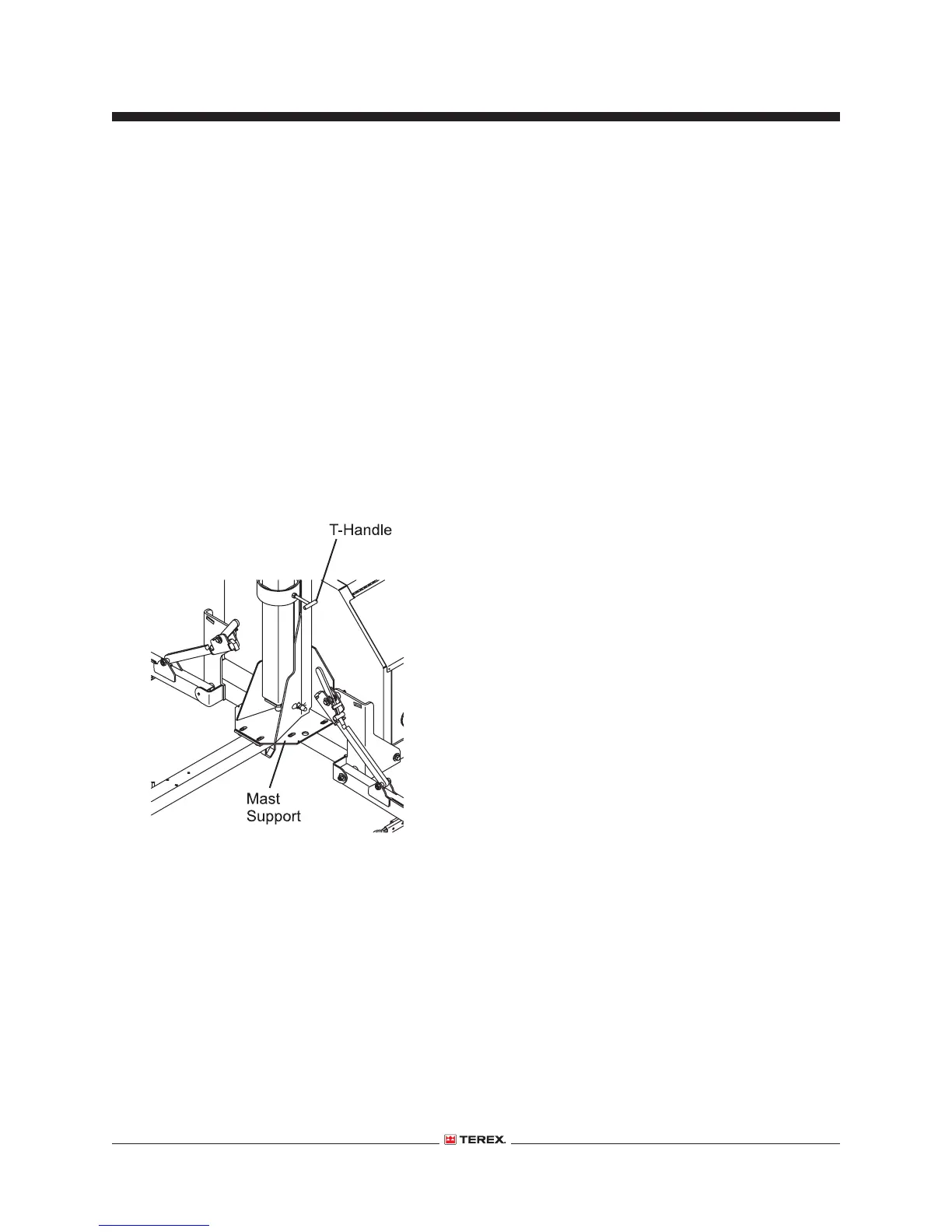

Mast Rotation
1 Turn the T-handle to release the mast rotation
lock.
2 Rotate the mast to the desired position.
3 Tighten the T-handle to secure the mast in the
desired position.
4 Before lowering the mast sections, the blue
arrows on the mast must be aligned.
5 Release the mast rotation lock and rotate the
mast to align the arrows.
6 Tighten the T-handle to secure the mast.

Terex RL4000 Specifications

General

Number of Lights	4
Fuel Type	Diesel
Mast Height	9 m (30 ft)
Light Type	LED
Lamps	LED
Illuminated Area	4000 m²
