Controls and Operating

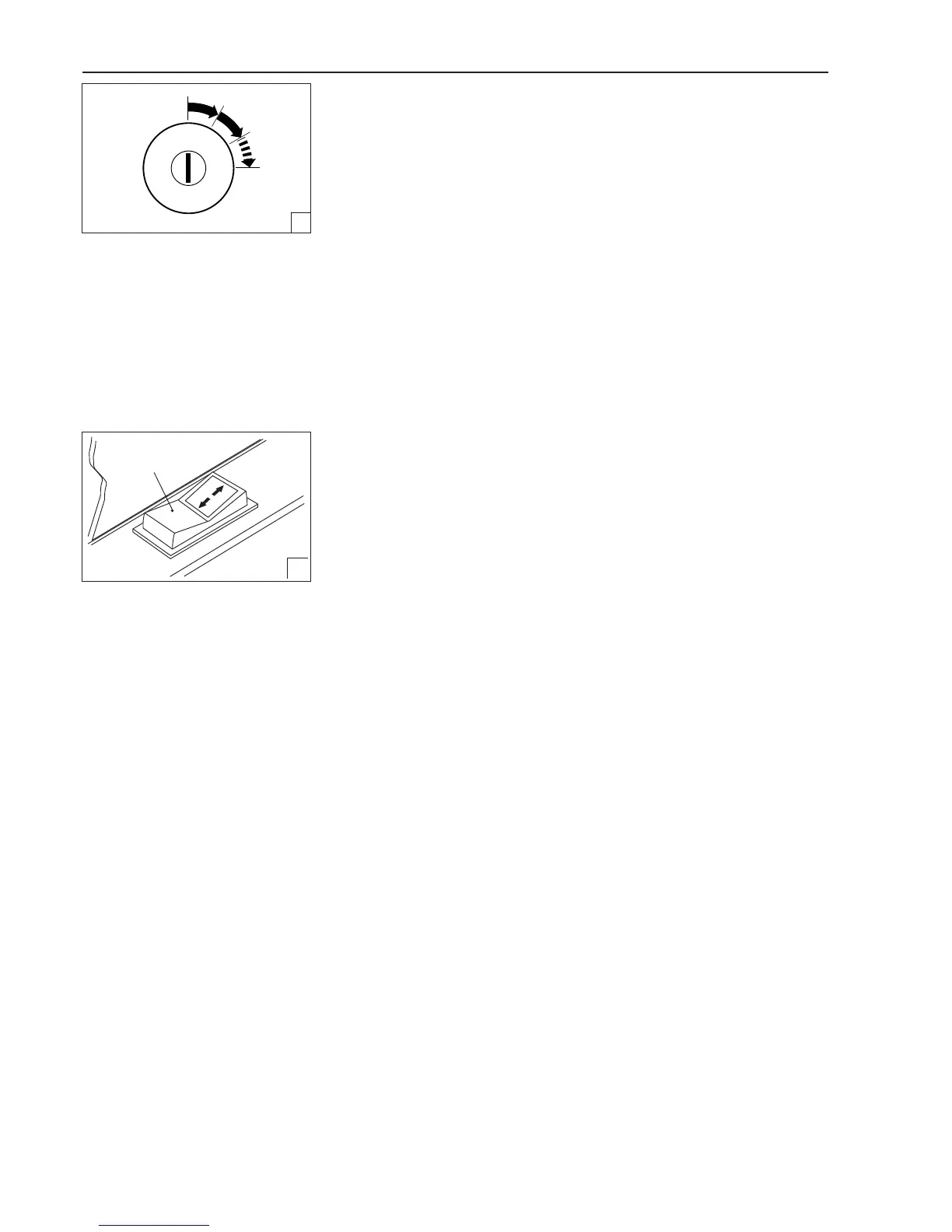

15. Ignition and Starter Key Switch
The combined switch operates the ignition, pre-lube motor and starter motor.
The key can only be withdrawn from position '0'.
'0' - Ignition switched off. Disconnects the batteries making all electrical
systems inoperative (with the exception of a supply to the transmission ECU
memory, interior light and to the radio).
'1' - Turn key clockwise to connect the batteries to the electrical systems.
'2' - Ignition switched on, instruments, gauges and warning lights register as
appropriate. All electrical systems are operative. The key must remain in this
position whilst operating the machine.
'3' - Initiates starting sequence. The engine pre-lube motor will run untill
engine oil pressure of 0.35-0.48 bar (5 - 7 lbf/in) is achieved. This will
normally take 8 - 15 seconds, but can take up to 45 seconds in cold climates
or with dry filters. 3 seconds after the pre-lube motor stops, the engine starter
motors engage. Release the key as soon as the engine starts firing. The key
will return to position ‘2’.
16. Electric Window Switch
Press bottom of switch to lower window; press top of switch to raise window.
