3-12
Controls and Operating

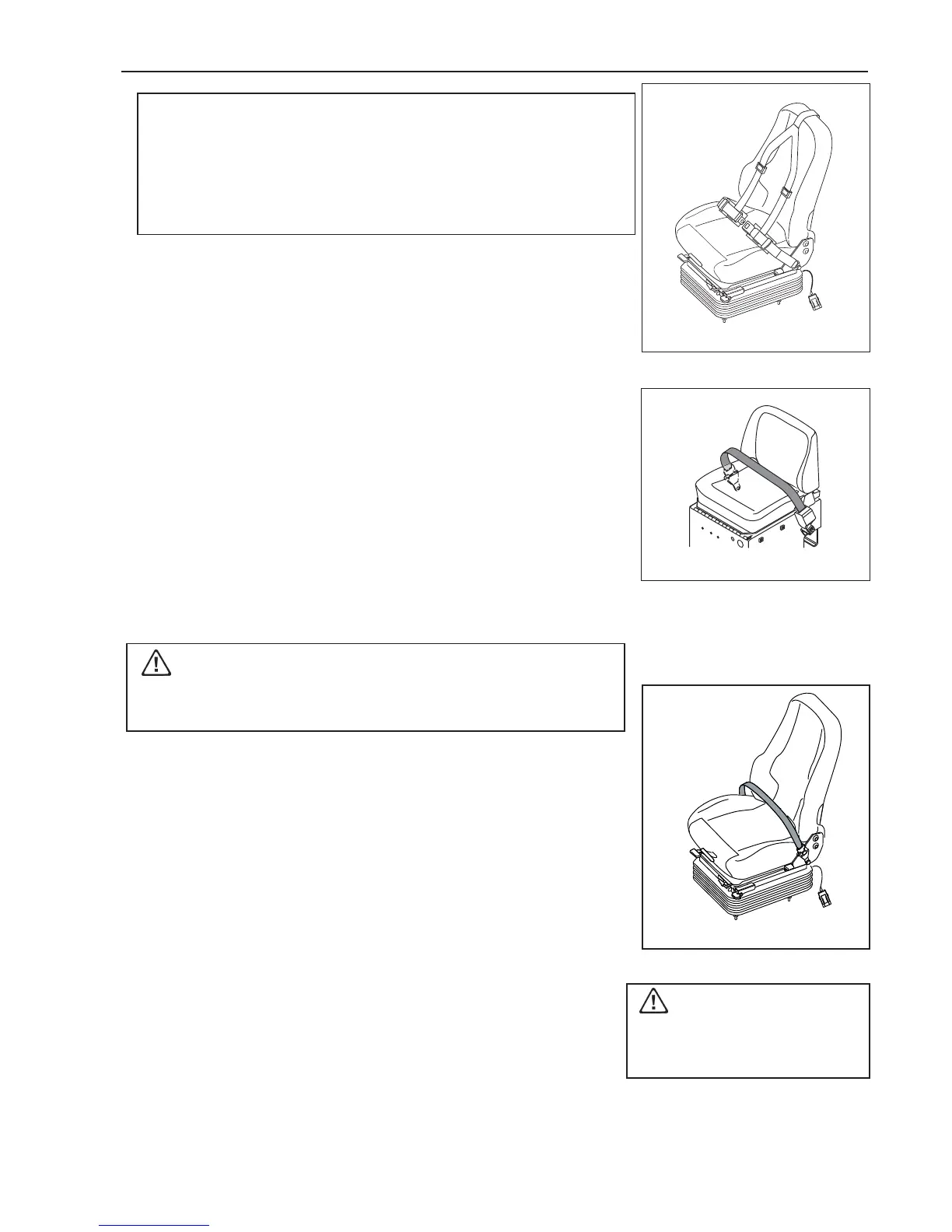

2104 Three point harness
1656 Instructor Seat Belt
Seat Belt
The operator’s seat will be fitted with either a “three point harness” or a
“retractable lap belt”. Both allow freedom of movement for proper manipulation
of all controls. The instructor’s seat is fitted with a “retractable lap belt”.
To Fasten Three Point Harness:
Position belt over both shoulders and around waist and insert belt into buckle
until an audible click is heard. Adjust the length of the belt as required using
the adjusters. Ensure belt is secured.
To Unfasten Three Point Harness:
Press the red release button on the buckle.
To Fasten Lap Belt:
Pull belt from reel and position around waist and insert belt into seat buckle
until an audible click is heard. Ensure the belt is secure. No external
adjustment is required.
To Unfasten Lap Belt:
Press the red release button on the buckle. The belt will self retract into its
reel.
The Trainer/instructor seat is
NOT for continuous passenger
2234 Operator’s Lap belt
the horizontal position of the base cushion, by first lifting this handle,
moving the cushion forwards or rearwards, then releasing the handle in
one of six positions provided.
5. Ride firmness adjustment. Push down on this button to increase the
ride firmness, or conversely pull up on the button to decrease the ride
firmness.
6. Combined height and weight adjustment. Push this knob in to raise the
seat, or pull it outwards to lower the seat.
7. Rear cushion angle adjustment. Lift this handle and allow the rear
cushion to spring forward, or lean back into the cushion to force it back.
Release the handle at the desired position.
8. Lumbar adjustment. Rotate this control upwards to deploy increased
lumbar support, or downwards to decrease applied lumbar support.
NOTE :
If the horizontal slide become loose, adjustment can be
achieved by tightening of two gold coloured grub screws on the right-
hand side of the slide plate, the access to which requires logitudinal
movement of the seat to align access holes. Tighten the grub screws by
¼ turn increments until the looseness has been reduced to a minimum.
Avoid overtightening of the grub screws, which will prevent the seat
from horizontal movement altogether.
4. Seat cushion length adjustment. The operator can individually adjust
Do not attempt to adjust the seat or seat belt while the machine is
moving. Loss of control may result. Stop the machine, apply the
