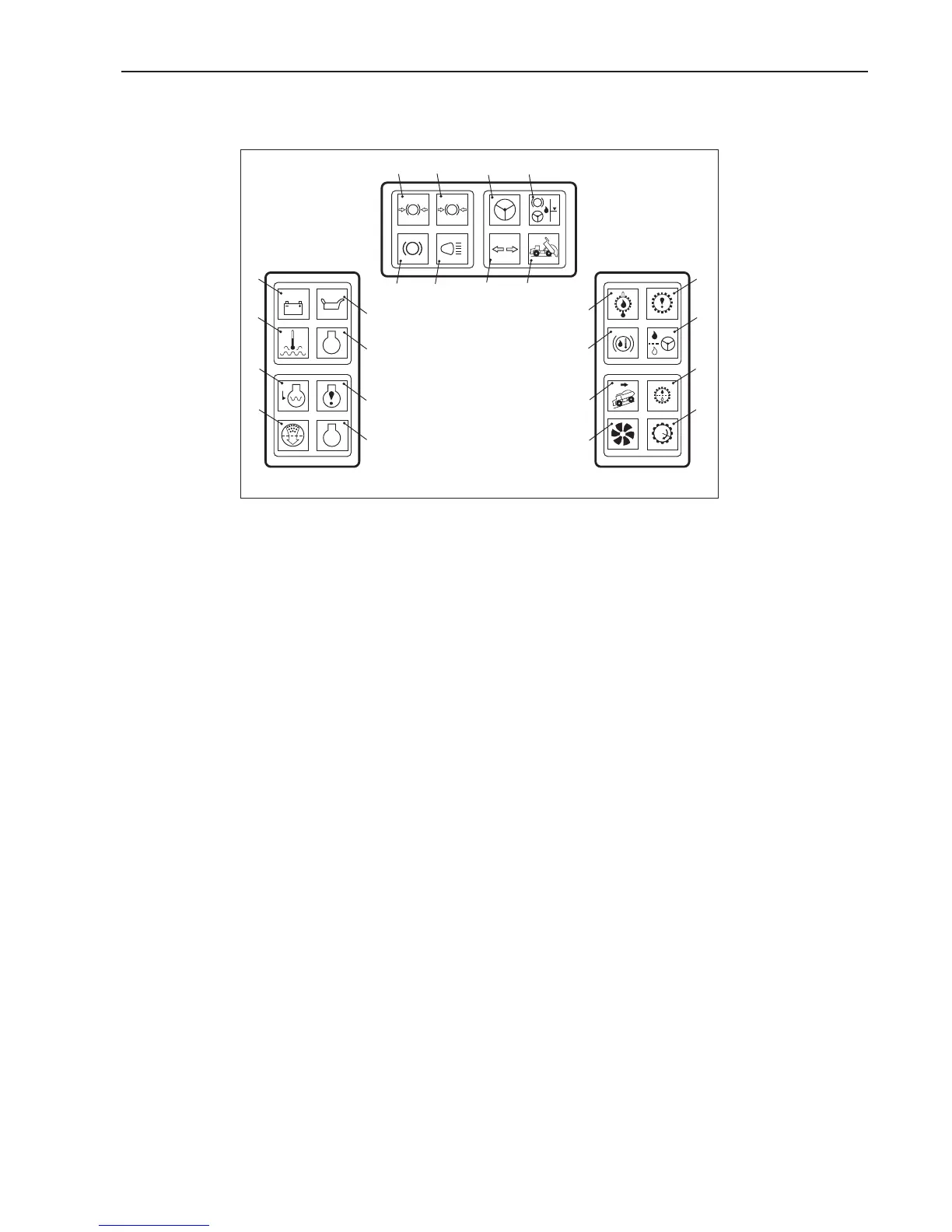

Terex TR100 - Warning Lights (Part 1: 1-9)

3-4
Controls and Operating
BASIC DATA
1. Alternator Charging (Red)
lluminates to indicate when the alternator is not charging.
2. Engine Water Temperature (Red)
Illuminates when the engine water temperature rises above the safe
operating temperature.
3. Engine Water Level (Amber)
Illuminates when the engine water level drops below the safe operating level.
4. Air Cleaner Restriction (Amber)
Illuminates to indicate that the air filters are needing cleaned or replaced.
5. Engine Oil Pressure (Red)
Illuminates when the engine oil pressure drops below the safe operating
pressure.
6. Engine Stop Light (Red)
Not currently used on TR100.
7. Engine Warning Light (Yellow)
Not currently used on TR100.
8. Engine protection Fluid Light (Amber)
Not currently used on TR100.
9. Front Brake Accumulator Pressure (Red)
lluminates to warn of low pressure in the front brake system accumulator.
Stop the machine if this light illuminates and do not operate until the fault is
corrected.
1626
STOP
P
1 2
1
2
3
4
5
6
7
8
9 10 11 12
13
14 15
16
17
18
19
20
21
22
23
24
Warning Lights
