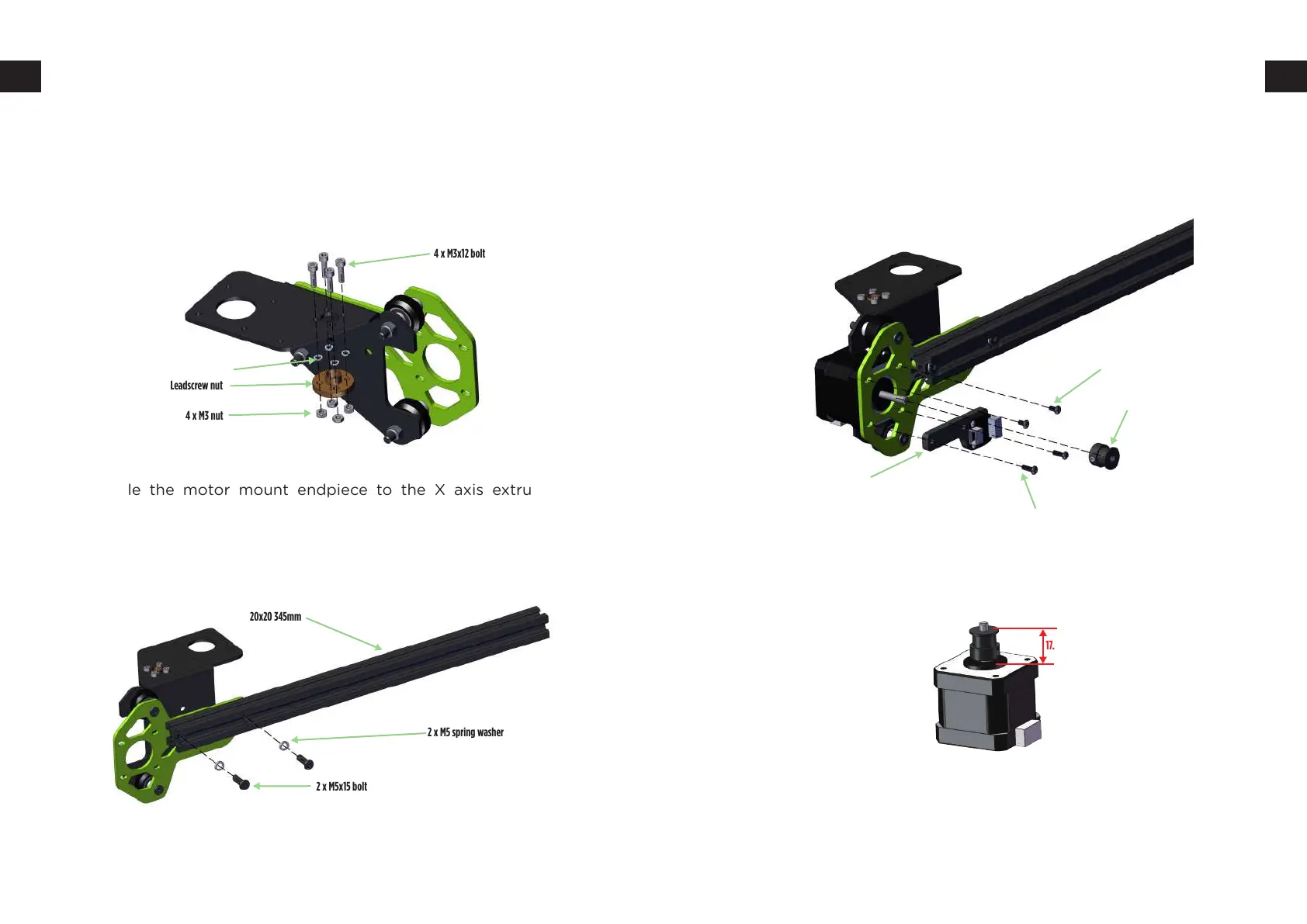

Assemble the motor mount endpiece to the X axis extrusion as
shown. There is two bolt slots that match to the motor mount end-
piece threaded holes. The parts for these steps are found from slot
B-03.
Install the leadscrew nut as shown.From B-03. Then install the stepper motor pulley and limit switch to the endpiece.
Motor cable connector should face downwards. From slot B03 and
B03-1 bag.
The x motor’s timing wheel distance around 17.5mm.
19 20
X axis assembly left side B-03
X axis assembly left side B-03
20x20345mm
2 x M5 spring washer
2 x M3x6 button head
GT2 pulley
2 x M3x10 button head
X endstop (B03-1)
2 x M5x15 bolt
4 x M3x12 bolt
Leadscrew nut
4 x M3 nut
4 x M3 spring washer
17.5 -17.7 mm
