Y axis parts preparation A-03
11 12

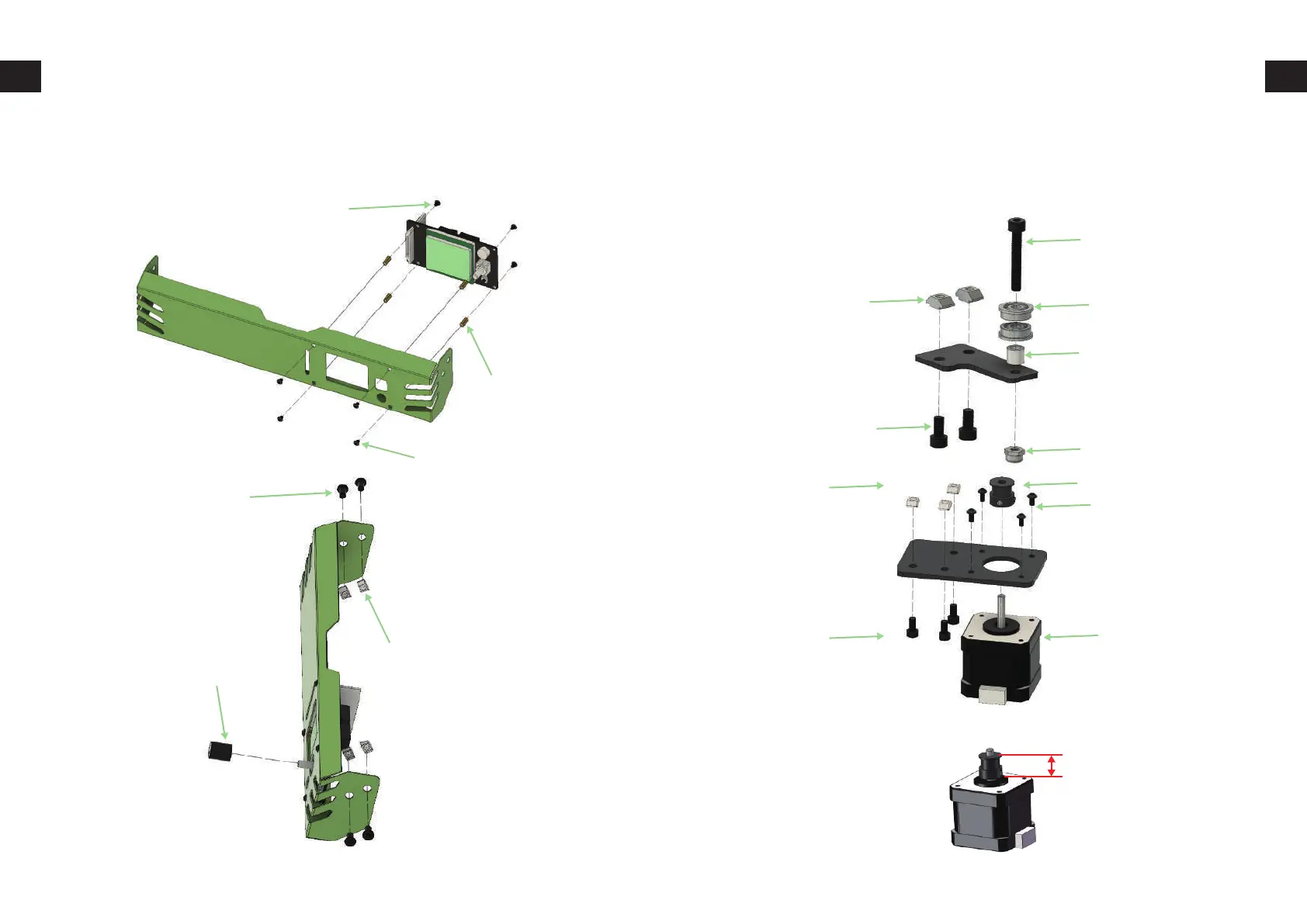

Prepare the Y axis idler and motor plate as shown in the following
pictures. Leave the M5 bolts with T-nuts loose until the parts will be
installed to the frame. The parts for these steps are found from slot
A-03 and bag A-03
Prepare the front panel as shown and then slide it in frame, you can
find these items from slot A-02 and A-02 bag.
Front panel assembly A-02
4 x M3x4 bolt
4 x M4x6 bolt
1 x knob
4 x T-nut
4 x M3 spacer
2 x T-nut
M4x25
2 x F624zz bearing
Aluminum spacer
M4 Self-locking nut
3 x T-nut
GT2 pulley
4 x M3x6 Button head screw
Nema 17 motor
20-20.1mm
3 x M4x8 bolt
2 x M4x8
4 x M3x4 bolt
The y motor’s timing wheel distance around 20mm.
