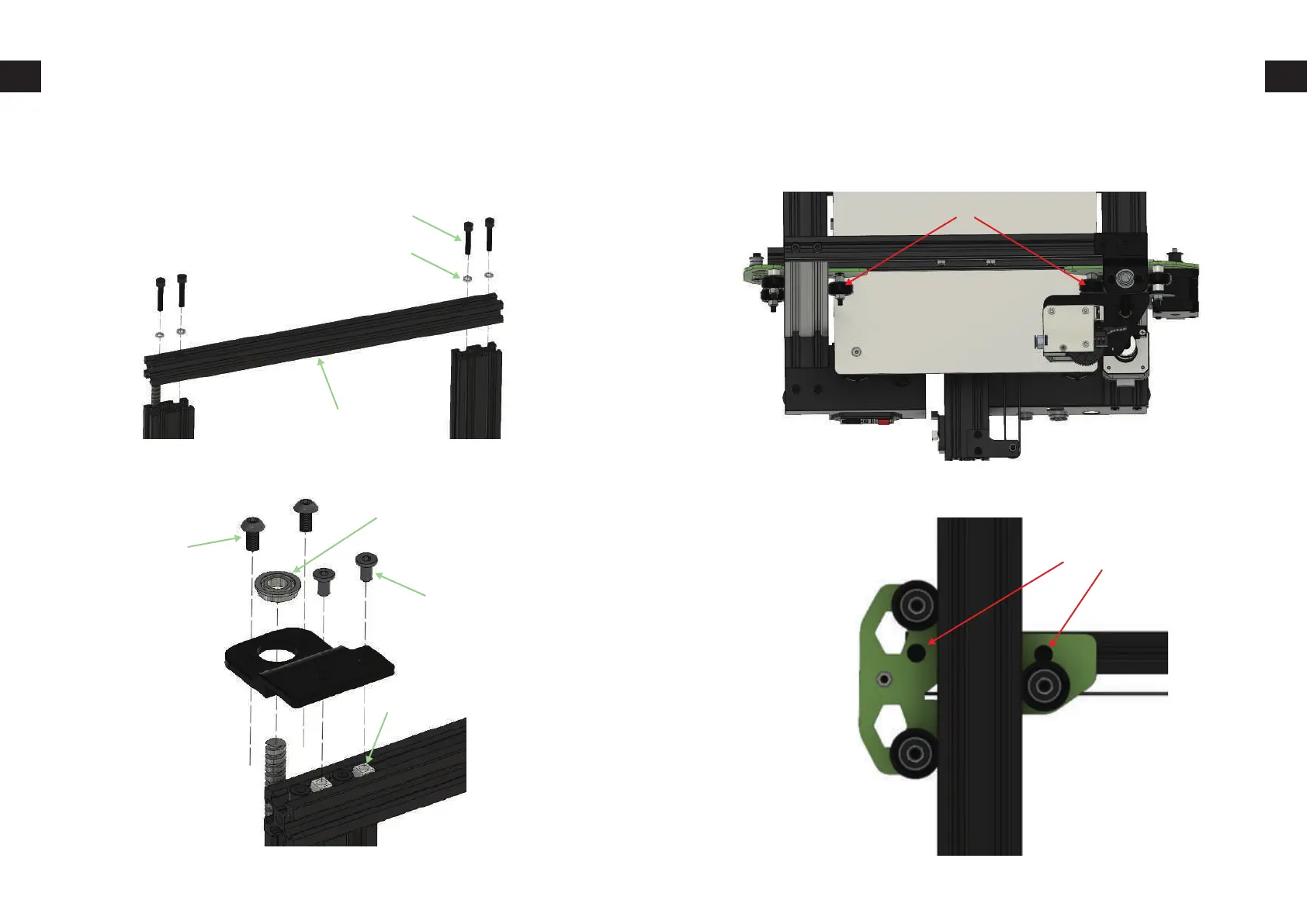

4 x M5x25 boltInstall the leadscrew top bearing bracket and Z axis
top extrusion as shown in the following pictures. The parts for lead-
screw bracket can be found from bag B01
Scews from B04-2.
After this adjust again eccentric nuts so that Z axis moves smoothly
and then tighten again the M5 nuts. And as last step for X axis tighten
the two M8x5 bolts on right side.
25 26
Z axis assembly B07
Z axis assembly B07
4 x M5x25 bolt
4 x M5 washer
2020 330mm extrusion
2 x M5x8 button head
F688zz bearing
Tighten now these
2 x M5x8 low profile
2 x T-nut
Pull the carriage out make sure it fix well.
