Tevo Tarantula Pro - Right Side and Hotend Assembly

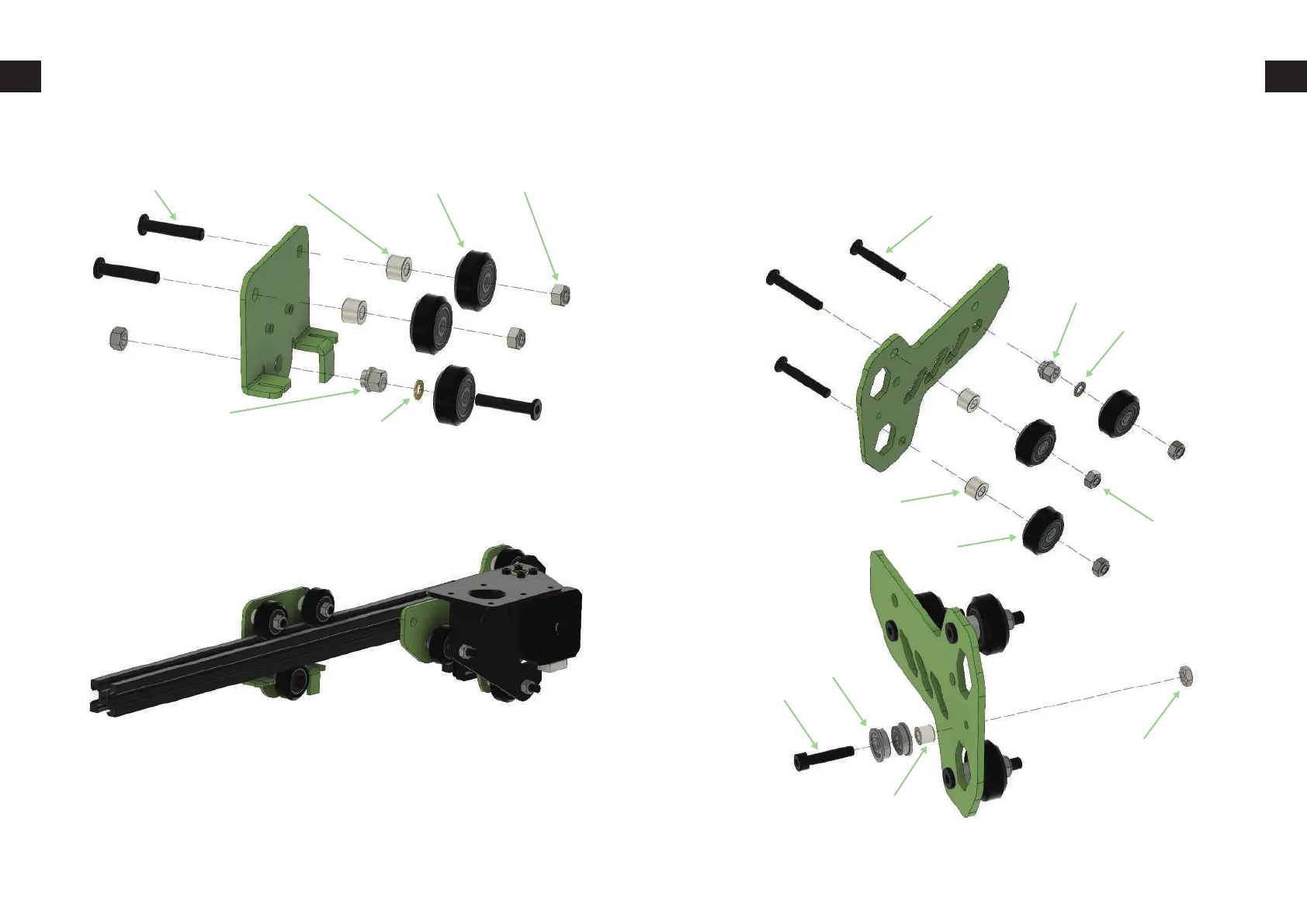

3 x M5x30 low profile boltAssemble the second endplate to the X axis
as shown. The parts for this step are found from bag B-04 and slot
B-04
21 22
Assemble the hotend carriage as shown. Parts for this step are found
from slot B-04 and bag B-04-1.
Install hotend carriage to extrusion and tighten the eccentric nut
again as explained in the heat bed assembly.
Right side and hotend assembly B-04
Right side and hotend assembly B-04
3 x M5x25 low profile 2 x M5 7mm spacer 3 x V-wheels 3 x M5 locknut
3 x M5x30 low profile
Eccentric nut
M5 precision shim
3 x M5 locknut
3 X V-wheel
2 x M5 7mm spacer
2 x F604ZZ
M4x20 bolt
4.2x7x6 spacer
M4 nut
Eccentric nut
Washer
