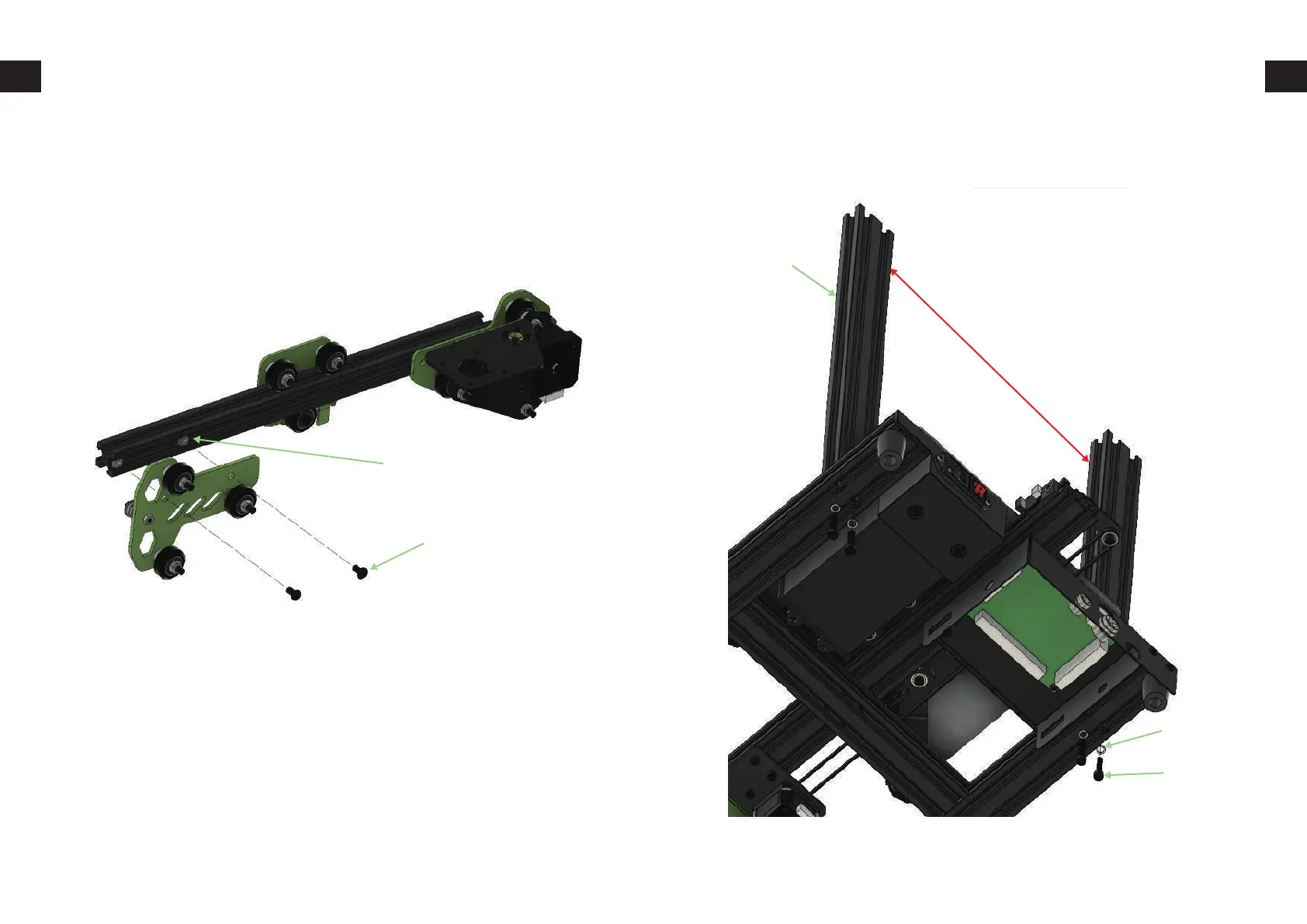

Install the two Z axis extrusions to bottom frame using 4xM5x25 bolts
and 4xM5 spring washers. The parts are found from slot B-01 and bag
B-01.
23 24
Install the assembly to other side of extrusion as shown, you can
leave the M5x8 bolts slightly loose still as those will be tightened
later in assembly. Don't tighten the screws in case you need to adjust
the granty later.
Upper frame assembly
Right side and hotend assembly B-04
2 x T-nut
2 x M5x8 low profile
2 x 20x40 424mm
250mm
4 x M5 spring
4 x M5x25 bolt
