Slide the bed in extrusion and install idler plate in the end of extrusion
as shown. Then slide carriage in frame and use the key to adjust the
eccentric nuts so that carriage is snug fit to rails and carriage moves
smoothly. In the end tighten the M5 nuts gently.
Assemble the bed carriage as in picture. Tighten the two bolts which
have 6mm spacers gently but leave the two eccentric nut bolts
slightly loose so that eccentric nuts turn easily. The parts for this step
are found from B-02 slot and B-02 bag.
Install the X axis motor bracket and endstop in place and tighten the
bolts.
Finalizing the assembly A-01, A-02, A-03 and B-02

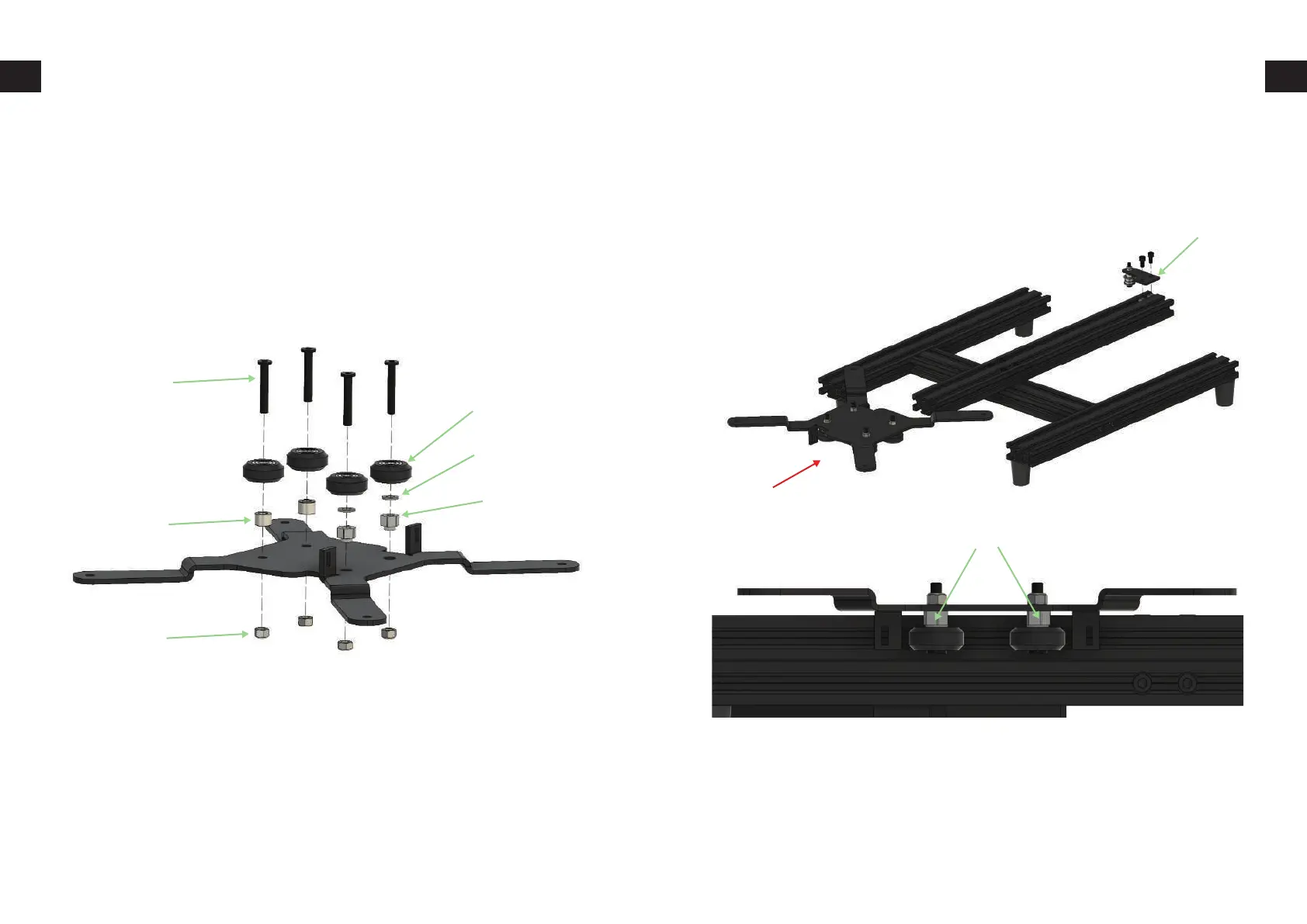

Bed carriage assembly B-02
4 x M5x30 bolt
4 x V-wheelst
Eccentric nuts for carriage
Idler
2 x M5 precision
2 x eccentric
2 x 7mm spacer
4 x M5 locknuts
To Next Page
