www.ti.com Circuit Module Physical Construction
7.3 bq76940EVM Circuit Module
7.3.1 bq76940EVM Assembly
The bq76940EVM uses all 15 cells provided on the board. Figure 31 and Figure 32 show the
bq76940EVM assembly.

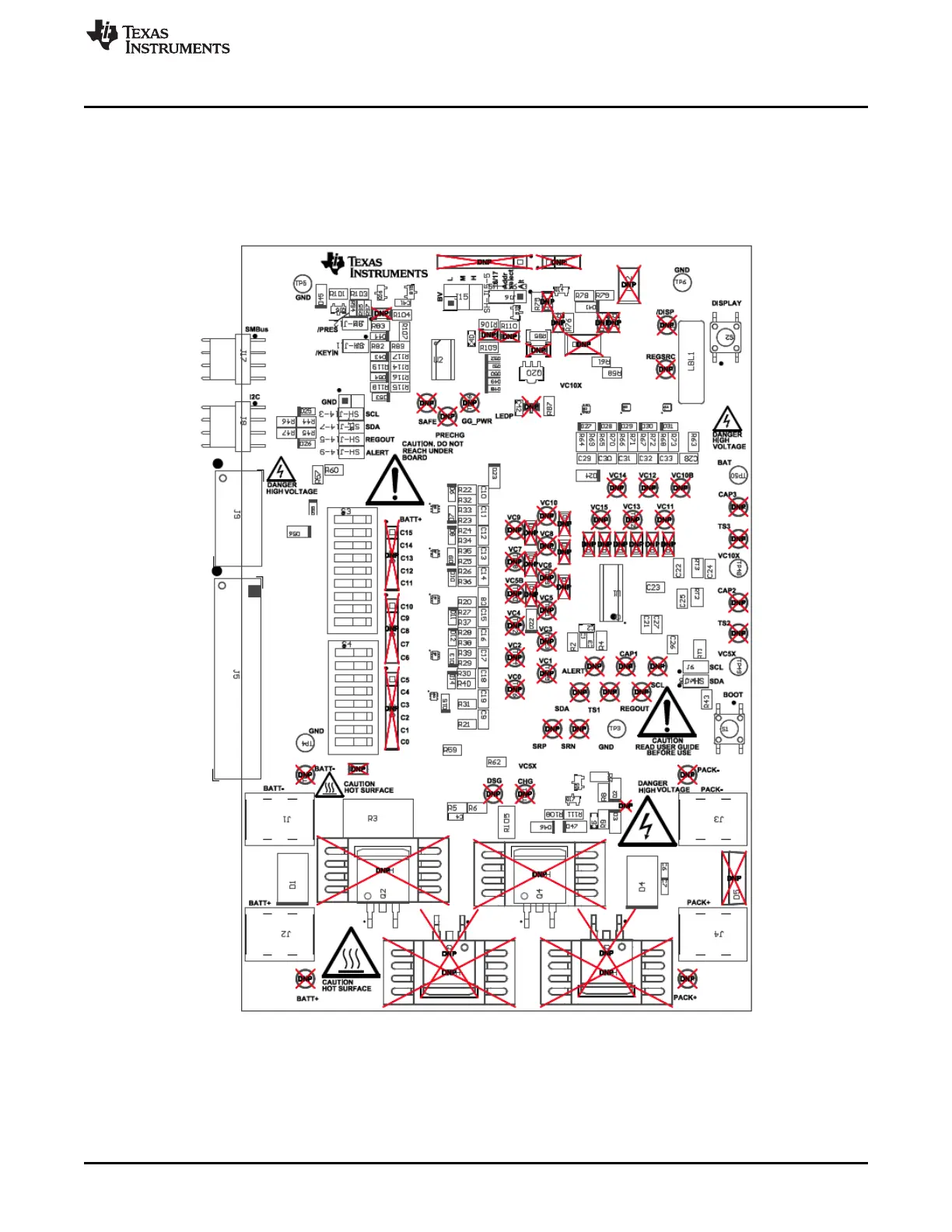

Figure 31. bq76940EVM Top Assembly
49
