Texas Instruments TMS320F28069

GPIO
t
r(GPO)
t
f(GPO)
148
TMS320F28069 , TMS320F28068 , TMS320F28067 , TMS320F28066
TMS320F28065, TMS320F28064, TMS320F28063, TMS320F28062
SPRS698F –NOVEMBER 2010–REVISED MARCH 2016 www.ti.com
Submit Documentation Feedback
Product Folder Links: TMS320F28069 TMS320F28068 TMS320F28067 TMS320F28066 TMS320F28065
TMS320F28064 TMS320F28063 TMS320F28062
Detailed Description Copyright © 2010–2016, Texas Instruments Incorporated
6.9.15.1 GPIO Electrical Data/Timing
6.9.15.1.1 GPIO Output Timing
Table 6-75. General-Purpose Output Switching Characteristics
over recommended operating conditions (unless otherwise noted)
PARAMETER MIN MAX UNIT
t
r(GPO)
Rise time, GPIO switching low to high All GPIOs 13
(1)
ns
t
f(GPO)
Fall time, GPIO switching high to low All GPIOs 13
(1)
ns
f
GPO
Toggling frequency 22.5 MHz
(1) Rise time and fall time vary with electrical loading on I/O pins. Values given in Table 6-75 are applicable for a 40-pF load on I/O pins.

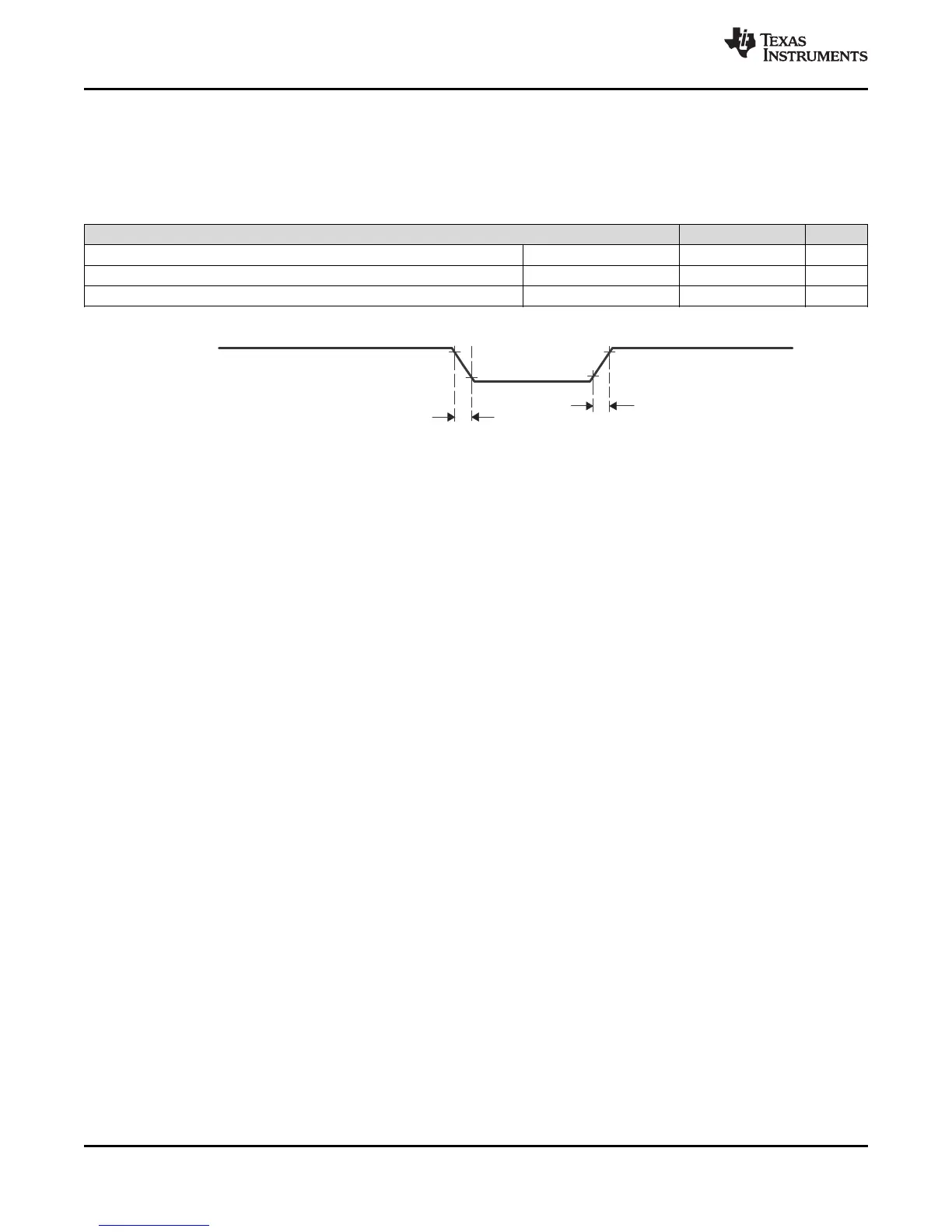

Figure 6-56. General-Purpose Output Timing
