6.9.2.3 Comparator Block

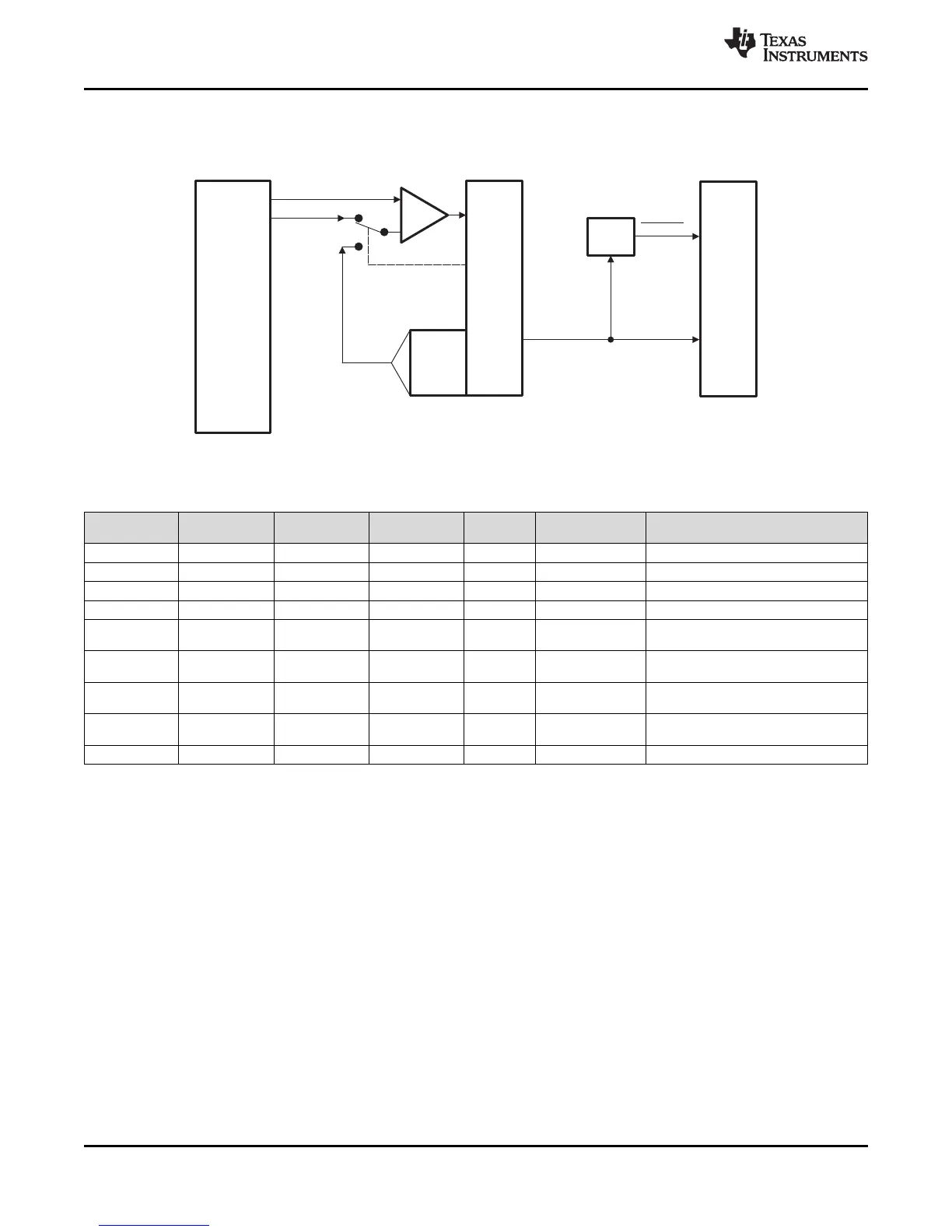

Figure 6-30 shows the interaction of the Comparator modules with the rest of the system.
Figure 6-30. Comparator Block Diagram
Table 6-31. Comparator Control Registers
REGISTER
NAME
COMP1
ADDRESS
COMP2
ADDRESS
COMP3
ADDRESS
SIZE
(×16)
EALLOW
PROTECTED
DESCRIPTION
COMPCTL 0x6400 0x6420 0x6440 1 Yes Comparator Control Register
COMPSTS 0x6402 0x6422 0x6442 1 No Comparator Status Register
DACCTL 0x6404 0x6424 0x6444 1 Yes DAC Control Register
DACVAL 0x6406 0x6426 0x6446 1 No DAC Value Register
RAMPMAXREF_
ACTIVE
0x6408 0x6428 0x6448 1 No
Ramp Generator Maximum Reference
(Active) Register
RAMPMAXREF_
SHDW
0x640A 0x642A 0x644A 1 No
Ramp Generator Maximum Reference
(Shadow) Register
RAMPDECVAL_
ACTIVE
0x640C 0x642C 0x644C 1 No
Ramp Generator Decrement Value (Active)
Register
RAMPDECVAL_
SHDW
0x640E 0x642E 0x644E 1 No
Ramp Generator Decrement Value
(Shadow) Register
RAMPSTS 0x6410 0x6430 0x6450 1 No Ramp Generator Status Register
