Premier Elite Series Quick Start Guide
INS222-10 21
U Ricochet Learn
Will go to the next available wireless zone starting at 9 or Press to search. Learning always starts from the next available zone,
deleting ways starts from the highest zone learnt to the system. Use the / key to start the learn process for the device
*Where available.

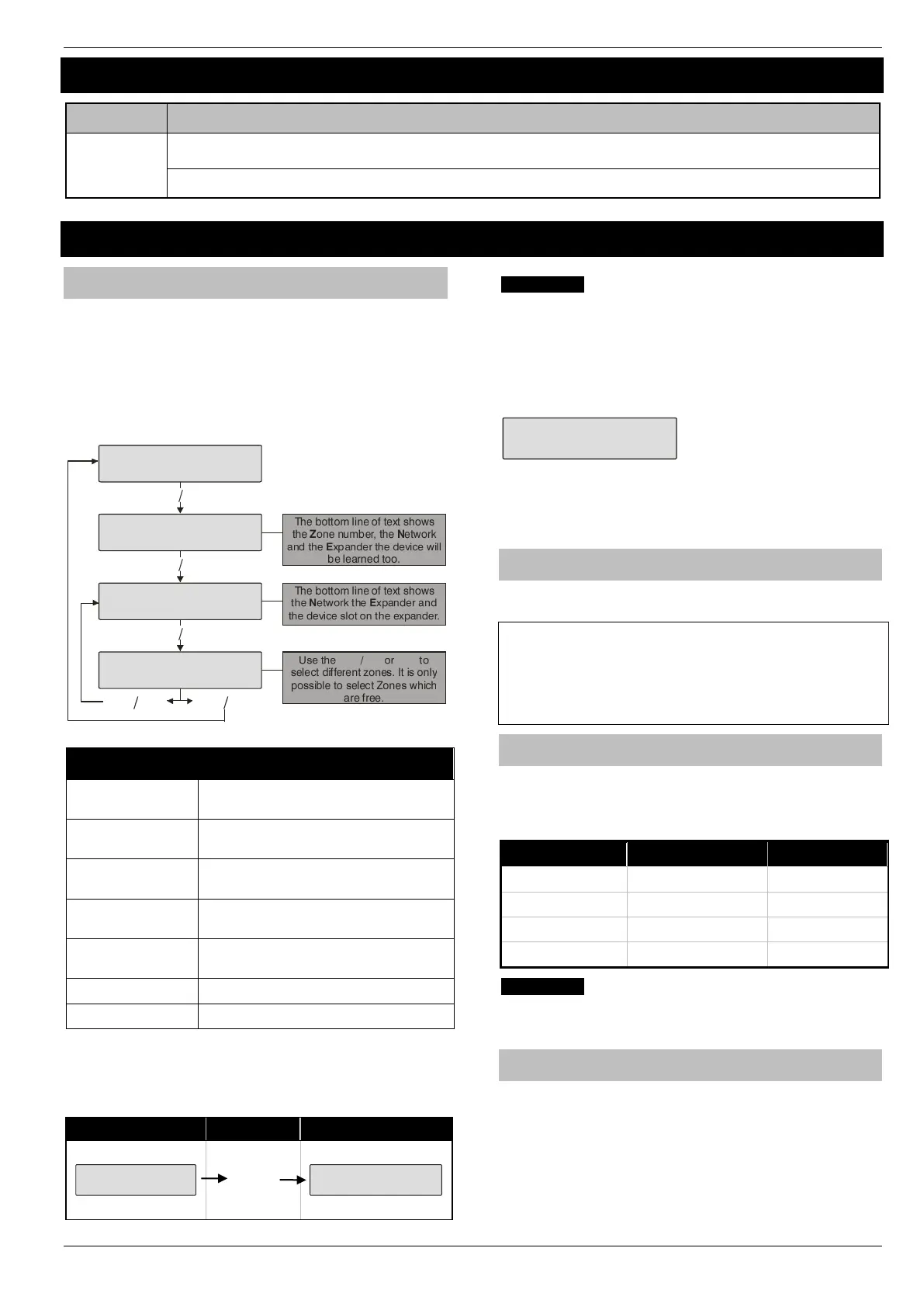

Learning & Deleting Ricochet Devices
Introduction
Learn Devices from first power up
When the "Confirm Devices" menu appears check and make sure all
installed Keypads and Expanders are showing; press
/
and
/
again to confirm.
Providing the system has a Ricochet enabled expander installed,
the following will appear. The flow diagram shows the procedure to
learn devices:-
YES to Select:-
Learn Ricochet
Learn Device?
Zone ??? N?,E??
Power up Device!
N?,E?,D?? - 20s
Learn Device to
Zone ??? N?,E??
nU
N N
Premier Compact All
models
Pull battery tab or Insert battery
Short learn pins and insert battery
Insert batteries and move Battery Jumper
to ON position
Pull battery tab or Insert battery
Hold down learn switch & insert battery.
Access the Learn Menu using the Omit “Hot” key
From any top level engineering menu pressing the
/O
key
will take you to the Ricochet learn menu above.
YES to Select:-
????????????????
YES to Select:-
Learn Ricochet
IMPORTANT
In all cases when entering the Learn menu the next available free
Zone will be chosen to learn a device too. It will not be possible to
learn a device to a Zone that already has a device learned too it. The
number of expander’s on the system will dictate which next “free”
zone is chosen to learn too.
When all device slots have been used the following screen will be
shown
Pressing the
N/N
key will return you to the Ricochet
learn menu; pressing the
/R
key will enter the Delete
devices menu.
Commissioning
IMPORTANT
Once all devices are learnt they should be installed in their
locations starting closest to the expander and working to
furthest away. To start commission mode the receiver should be
in Tamper, or in the case of the -W panels place the jumper on
“Fit for Commission” position.
Wait for at least 15 minutes and the test all devices.
Auto Zone Type & Area
When learning devices, if no editing has taken place of the control
panel onboard hardwired zones, these will be switched to Not Used
after the first Ricochet device is learned to the system; the following
defaults will be used for Ricochet devices learned to the system.
IMPORTANT
If any editing of any of the on board control panel zones is carried
out BEFORE any Ricochet devices are learned too the system, the
control panel zones will remain at factory defaults.
Deleting Devices
Delete Devices
To delete devices from the system, access the Ricochet Learn
menu. Any of the methods previously detailed may be used.
The
/R
key is used to access the Delete option.
Follow the flow diagram below to delete devices from the system.
To Next Page
