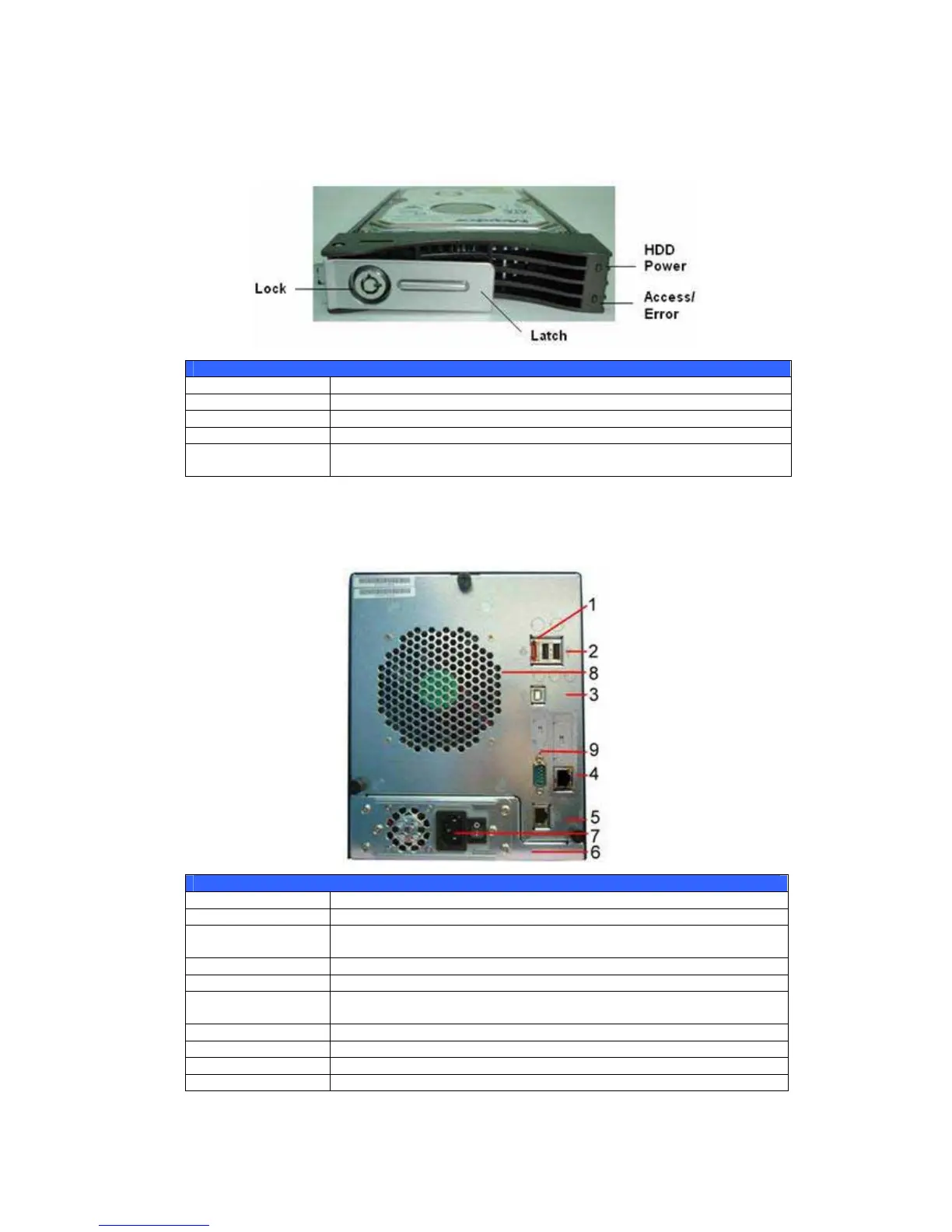

Hard Disk Trays
Each of the N5200’s hard disk trays has a lock, a latch, and two LED indicators:
Hard Disk Trays
Item Description
Lock • Use the lock to physically secure the hard disk to the unit
Latch • Use to open and remove or close and secure the tray
HDD Power LED • Solid blue: hard disk is powered on
HDD Access/Error
LED
• Blinking green: system is accessing data on the hard disk
Rear Panel (N5200B)
The Thecus N5200B’s rear panel features ports and connectors.
N5200B Back Panel
Item Description
1.eSATA Port • eSATA port for high-speed storage expansion
2.USB Port • USB 2.0 port for compatible USB devices, such as USB disks,
and USB printers
3.USB Port(target) • For connecting the N5200 to your PC as a mass storage device
4.LAN Port • LAN port that can be used for connection sharing
5.WAN Port • WAN port for connecting to an Ethernet network through a
switch or router
6.Power Switch • Switch for power supply
7.Power Connector • Connect the included power cords to these connectors
8.System Fan • System fan that exhausts heat from the unit
9.Serial Port • This port is for external UPS device
