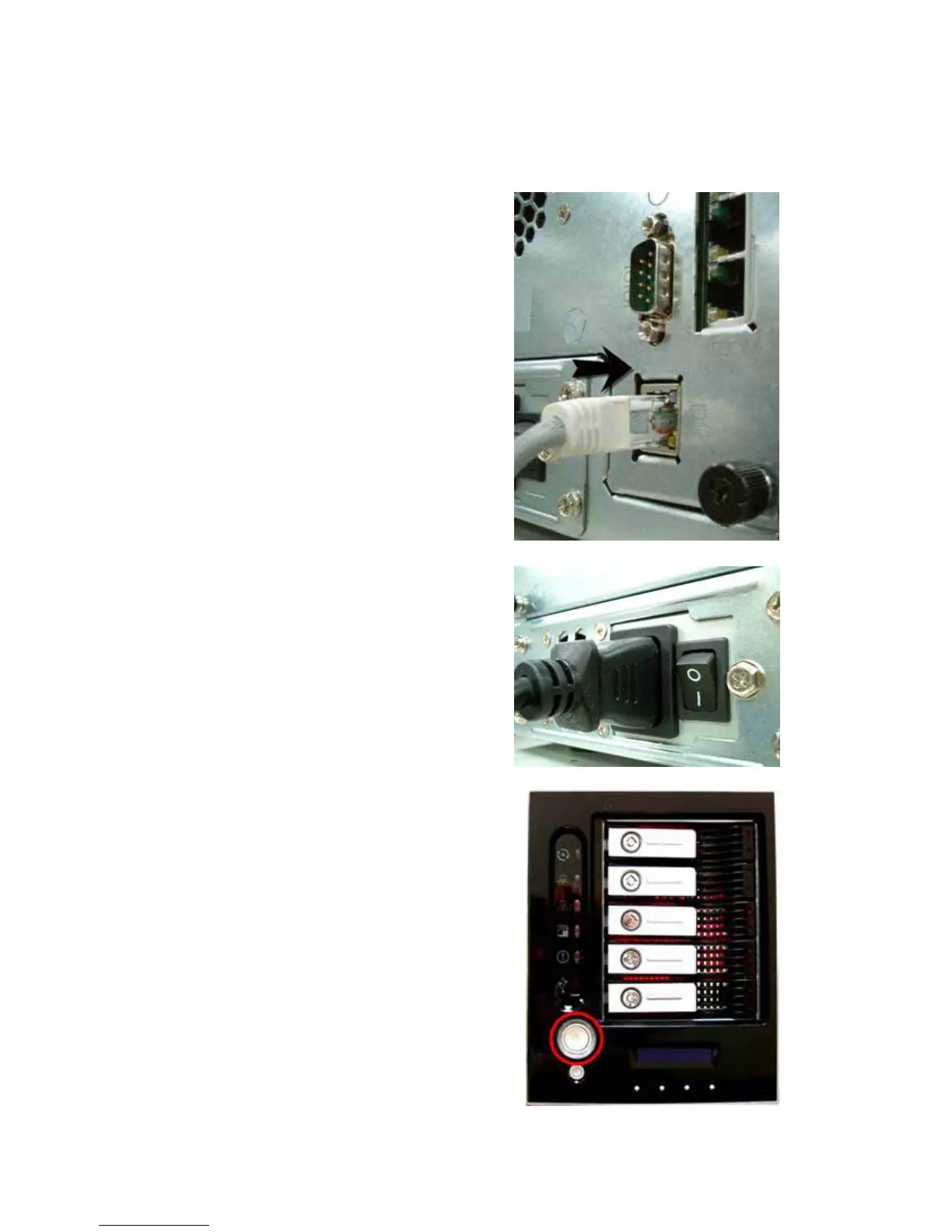

Cable Connections
To connect the N5200 to your network, follow the steps below:
1. Connect an Ethernet cable from your
network to the WAN port on the back
panel of the N5200.
2. Connect the provided power cord
into the universal
power socket on
the back panel. Plug the other end of
the cord into a surge protector
socket. Press the power supply
switch to turn on the po
wer supply.
3. Press the power button on the Front
Panel to boot up the N5200.
14
