Manual 0-4669 A-13 APPENDIX
1 2 5 6
3 4 5 6
Main Power PC Board
Auxiliary
Transformer
Voltage
Protection
CRT/+12 Regulator
J18
J24
+12vdc
W1
SOL
ON/OFF Switch
A-03710
primary
secondary
Fuse
2
3
J23 (Test)
K5
K4
J81
4
Line Voltage
J11
1

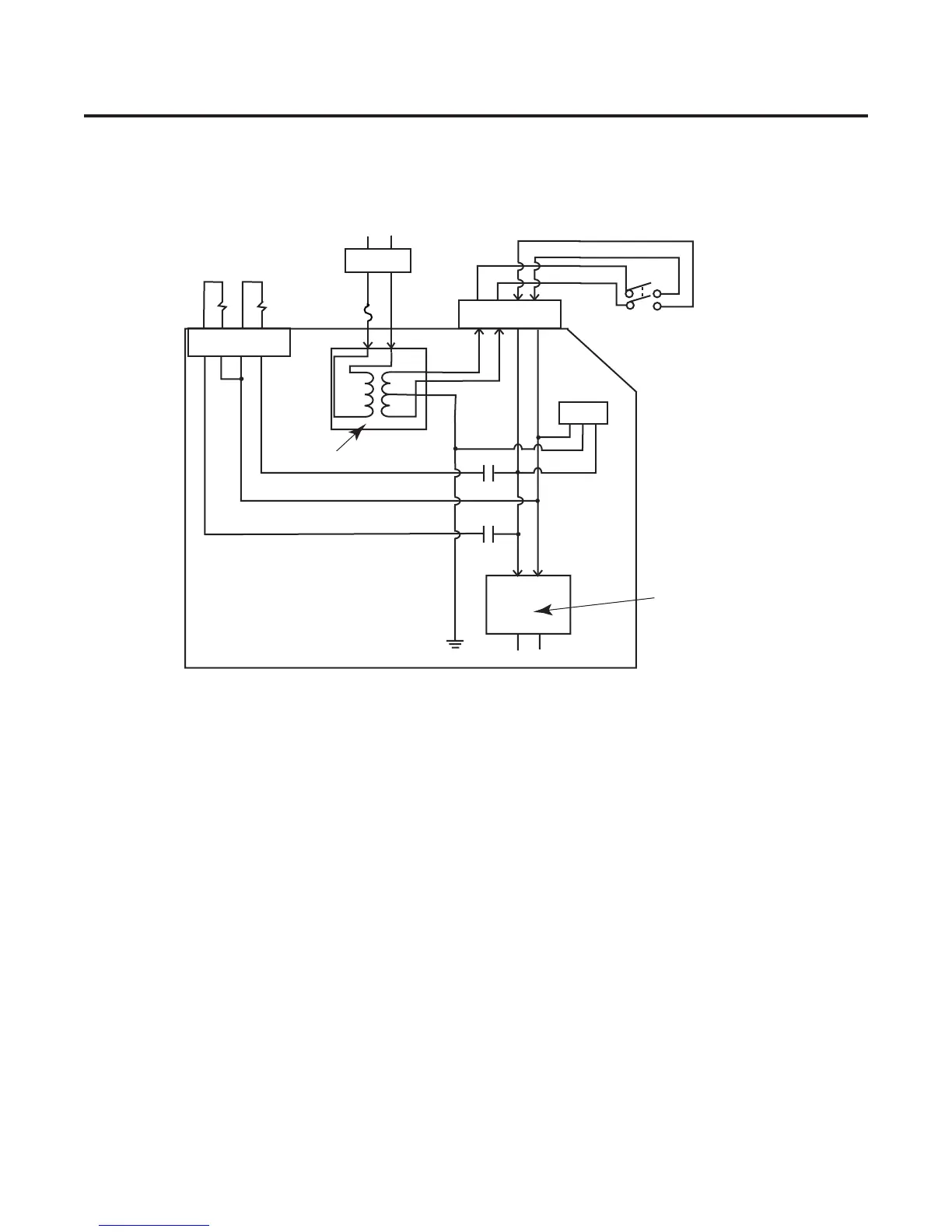

APPENDIX 11: 28VAC CIRCUIT DIAGRAM
