Thermal Dynamics cutskill 35A User Manual

cutskill 35a
INTRODUCTION 2-2 June 30, 2009
26lb / 11.8kg
5 1/4"
133 mm
16 1/2"
419 mm
R
U
N
S
E
T
C
U
R
R
E
N
T
(
A
)
2
5
3
5
R
E
A
D
Y
A
I
R
O
V
E
R
H
E
A
T
P
O
W
E
R
11"
280 mm
Art # A-09174

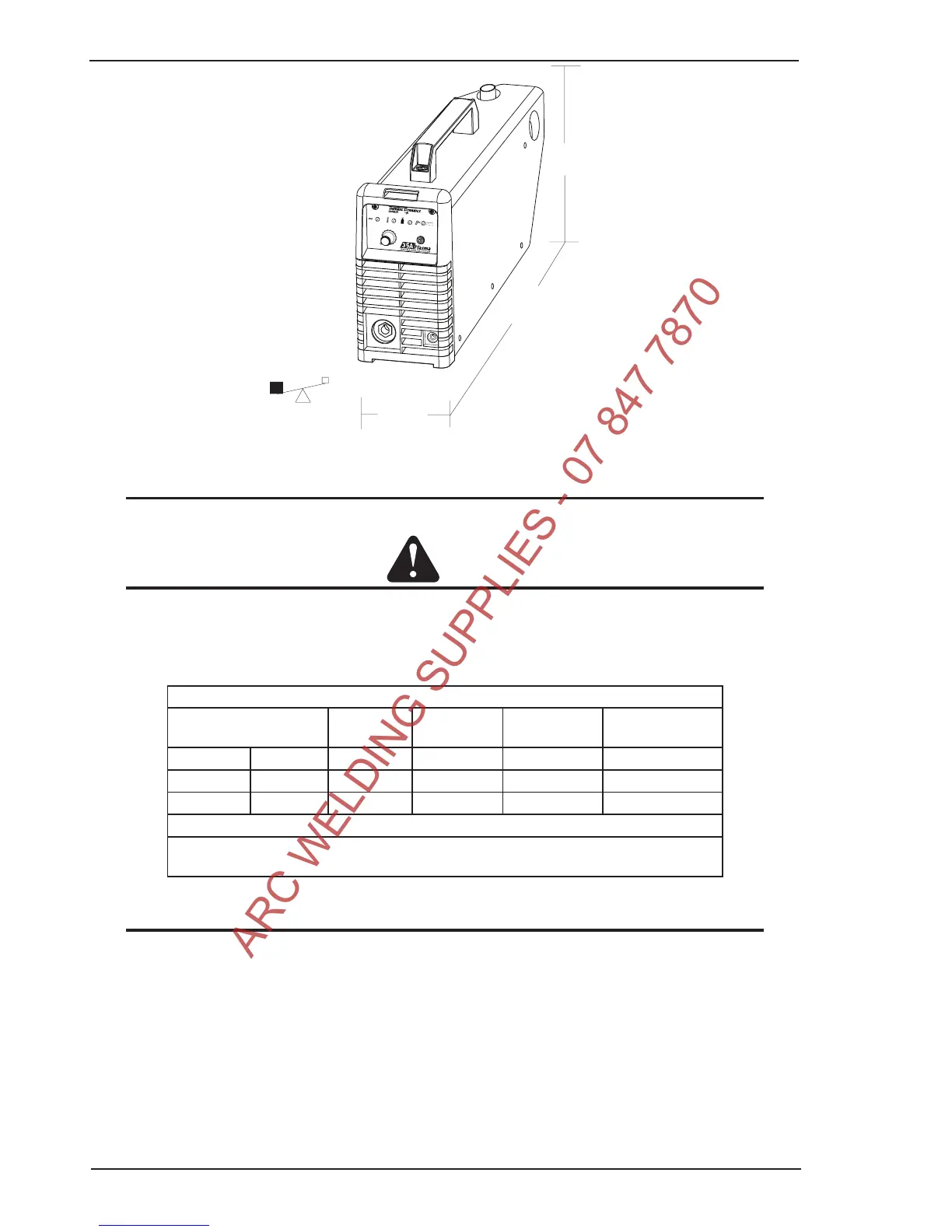

Figure 2-1 Power Supply Dimensions & Weight
NOTE
Weight includes torch & leads, input power cord, and work cable with clamp.
CAUTION
Provide clearance for proper air flow through the power supply. Operation without proper air flow will
inhibit proper cooling and reduce duty cycle.
2.03 Input Wiring Specifications
CutSkill 35A Input Power Requirements
Input Power Input Current Input Current Input
Suggested Sizes
(See Note)
Voltage Freq. (kVA) Max (Amps) Ieff (Amps) Fuse (Amps)
(Volts) (Hz) 1-Ph 1-Ph 1-Ph 1-Ph
240 50 3.4 27.3 14 20
Line Voltages with Suggested Circuit Protection.
Motor start fuses or thermal circuit breakers are recommended for this application. Check
local requirements for your situation in this regard.
NOTE
Refer to Local and National Codes or local authority having jurisdiction for proper wiring requirements.
Cable size is de-rated based on the Duty Cycle of the equipment.
The suggested sizes are based on flexible power cable with power plug installations.
Cable conductor temperature used is 167° F (75° C).
ARC WELDING SUPPLIES - 07 847 7870
